R-CC300 Concealed Hinge
RAYEN R-CC300 Concealed Hinge: maximum load capacity (2 hinges) 200kg, size 51x230mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold

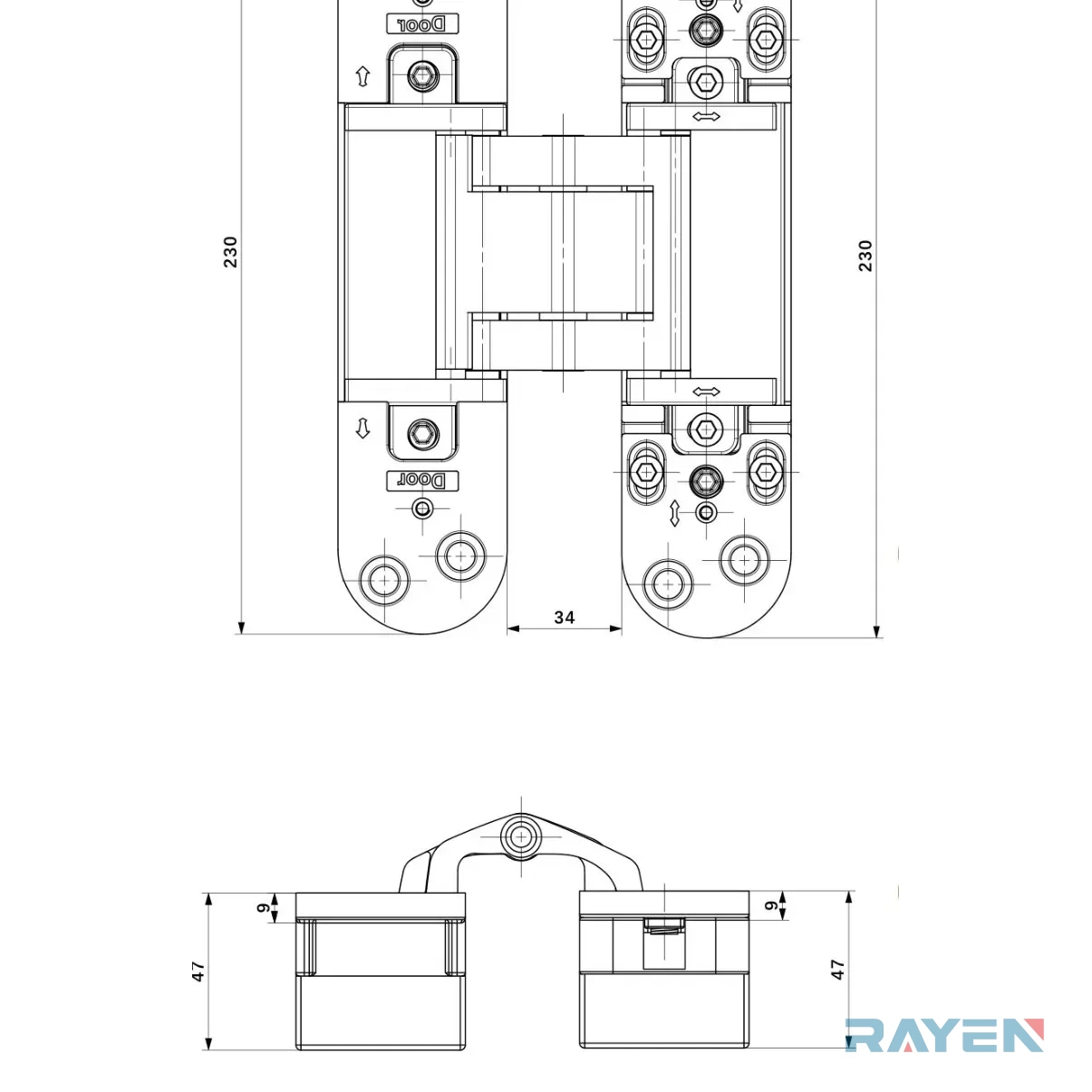

Specification
| Size | 51x230mm |
|---|---|
| Maximum load capacity (2 hinges) | 200kg |
| Minimum door thickness | 62mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø51mm |
| Routing length | 159&230mm |
| Routing depth | 11&49mm |
| Adjustment | Up and down: ±3.0mm; Left and right: ±2.0mm; Front and back: ±2.0mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
