R-CS100 Concealed Hinge
RAYEN R-CS100 Concealed Hinge: maximum load capacity (2 hinges) 100kg, size 34x137mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold

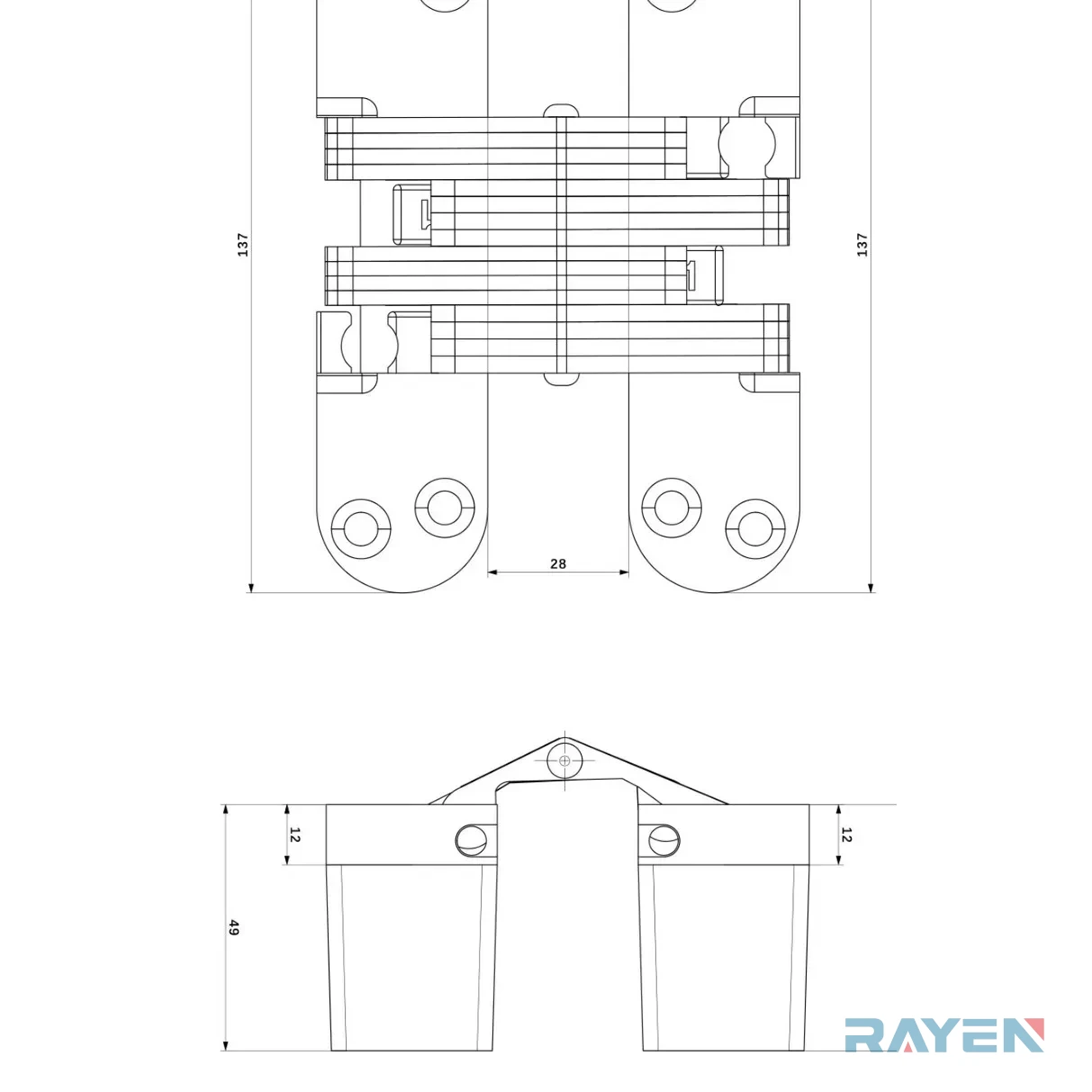

Specification
| Size | 34x137mm |
|---|---|
| Maximum load capacity (2 hinges) | 100kg |
| Minimum door thickness | 44mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø34mm |
| Routing length | 137&77mm |
| Routing depth | 12&50mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
