R-CS110 Concealed Hinge
RAYEN R-CS110 Concealed Hinge: maximum load capacity (2 hinges) 110kg, size 35x140mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold

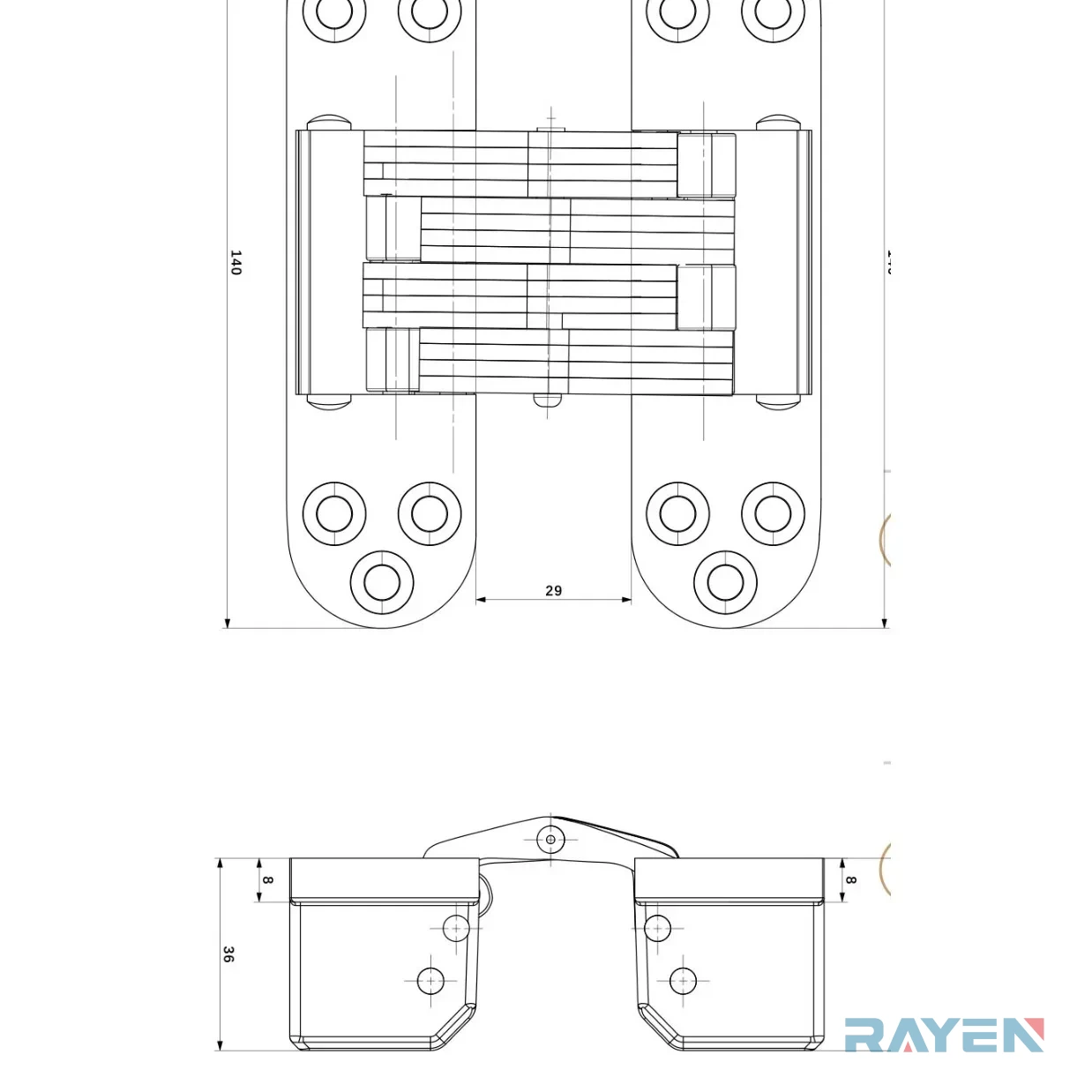

Specification
| Size | 35x140mm |
|---|---|
| Maximum load capacity (2 hinges) | 110kg |
| Minimum door thickness | 45mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø35mm |
| Routing length | 140&76mm |
| Routing depth | 8.5&38mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
