R-CS30 Concealed Hinge
RAYEN R-CS30 Concealed Hinge: maximum load capacity (2 hinges) 30kg, size 16x70mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold

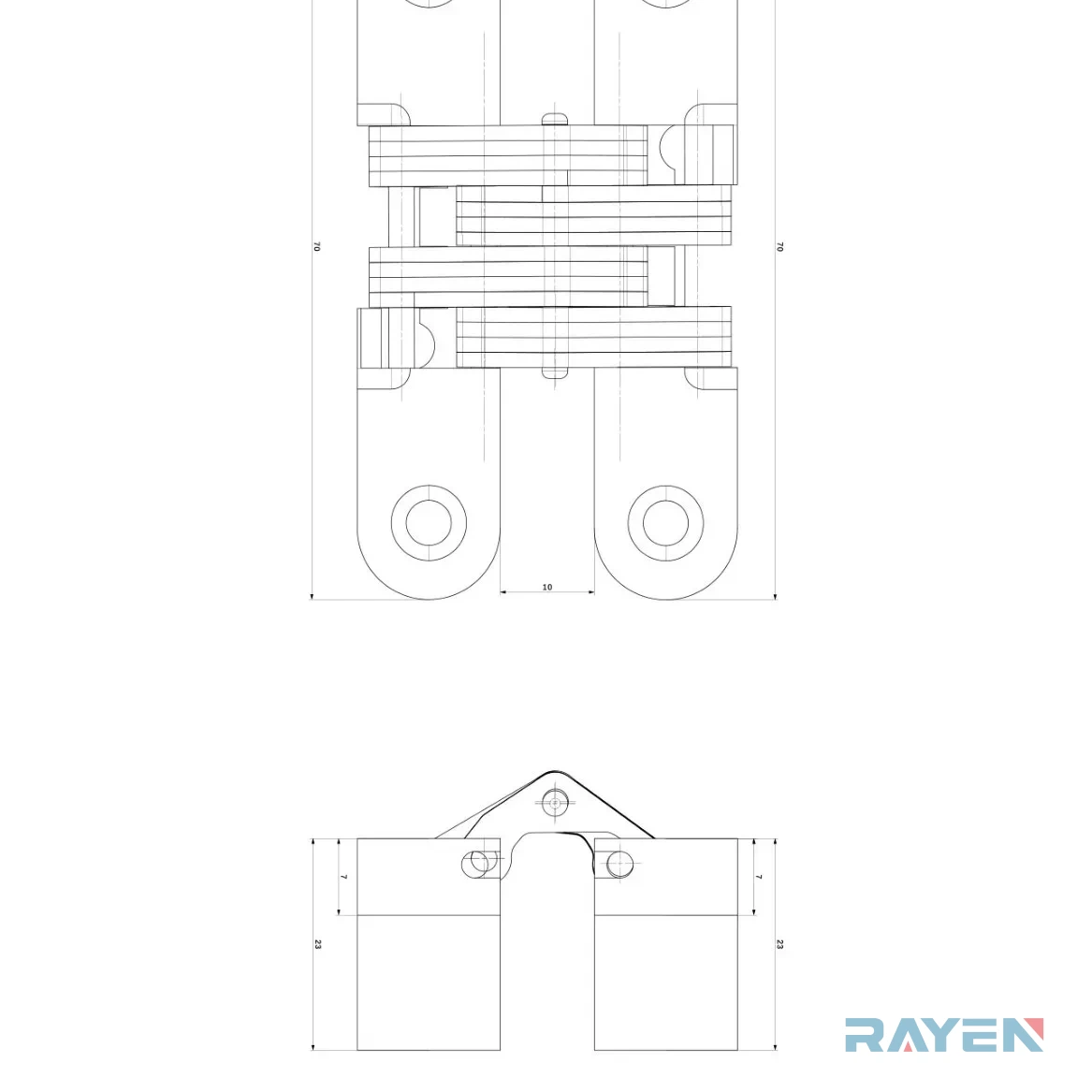

Specification
| Size | 16x70mm |
|---|---|
| Maximum load capacity (2 hinges) | 30kg |
| Minimum door thickness | 20mm |
| Maximum door width | 500mm |
| Milling cutter diameter | Ø16mm |
| Routing length | 70&34mm |
| Routing depth | 7&23mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
