R-CS40 Concealed Hinge
RAYEN R-CS40 Concealed Hinge: maximum load capacity (2 hinges) 40kg, size 19x95mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold

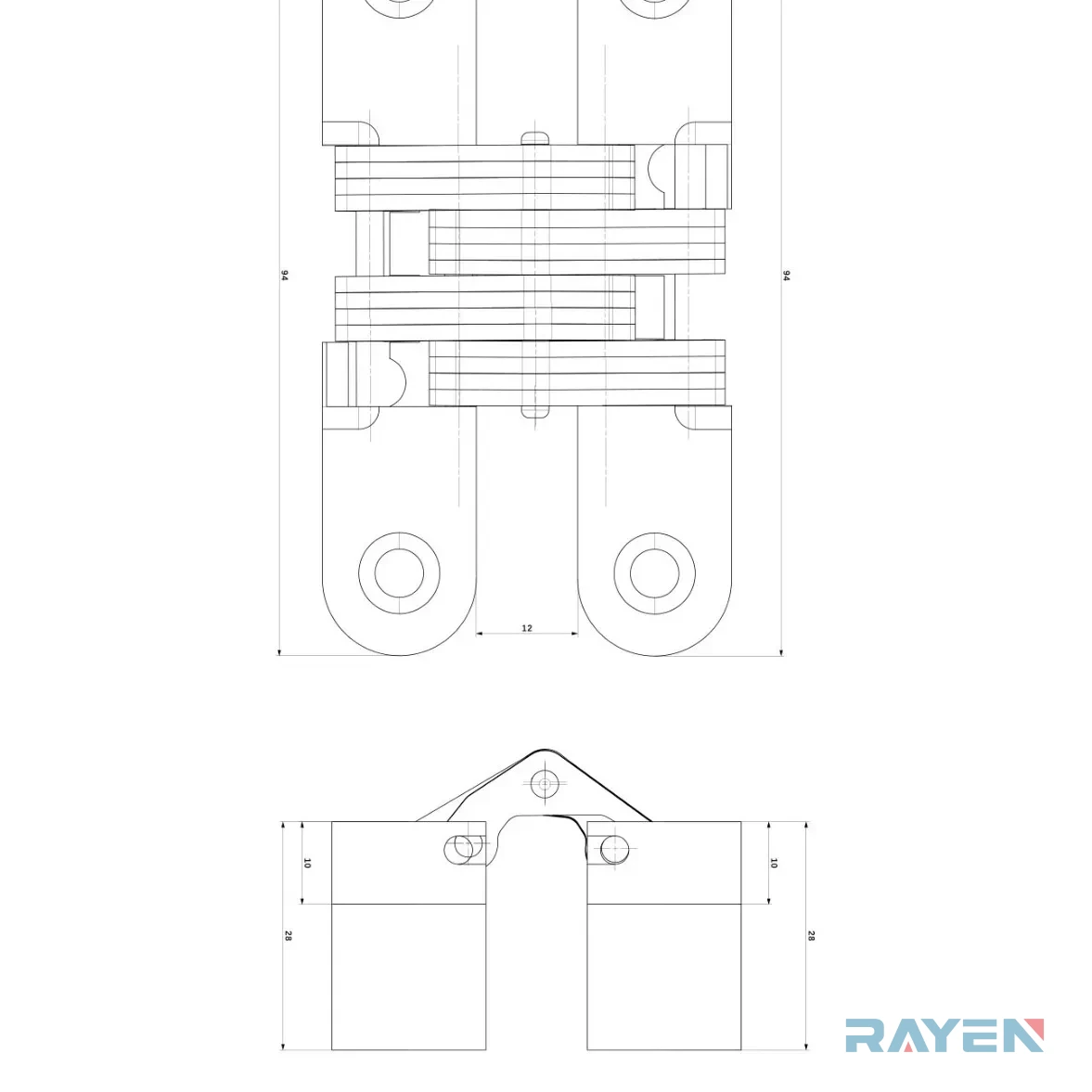

Specification
| Size | 19x95mm |
|---|---|
| Maximum load capacity (2 hinges) | 40kg |
| Minimum door thickness | 25mm |
| Maximum door width | 900mm |
| Milling cutter diameter | Ø19mm |
| Routing length | 95&54mm |
| Routing depth | 10&28mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
