R-CS60 Concealed Hinge
RAYEN R-CS60 Concealed Hinge: maximum load capacity (2 hinges) 60kg, size 25x117mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold
Specification

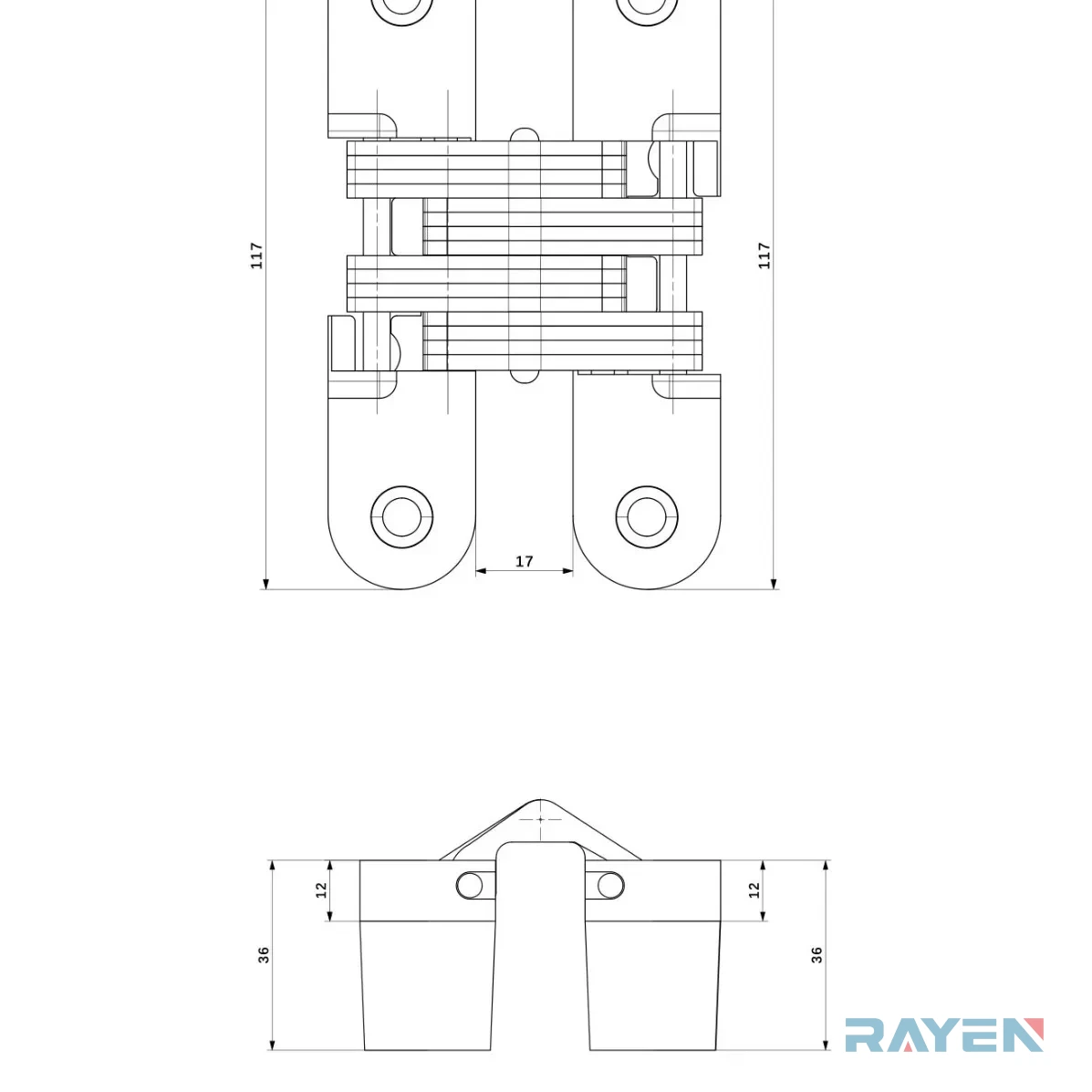

| Size | 25x117mm |
|---|---|
| Maximum load capacity (2 hinges) | 60kg |
| Minimum door thickness | 33mm |
| Maximum door width | 900mm |
| Milling cutter diameter | Ø25mm |
| Routing length | 117&70.5mm |
| Routing depth | 11.5&36mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
