RY100 Concealed Hinge

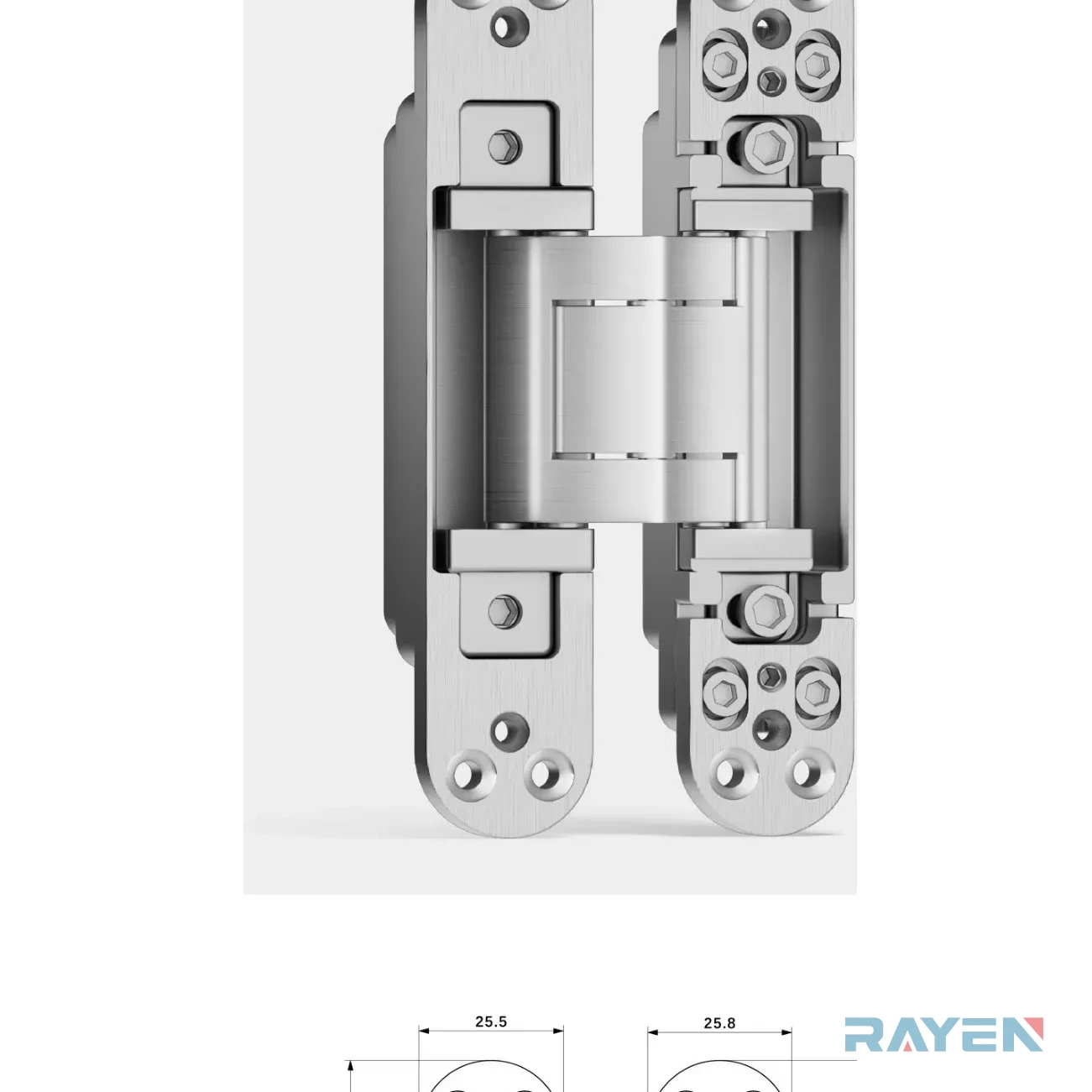

RAYEN RY100 Concealed Hinge: maximum load capacity (2 hinges) 100kg, size 25x138mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold

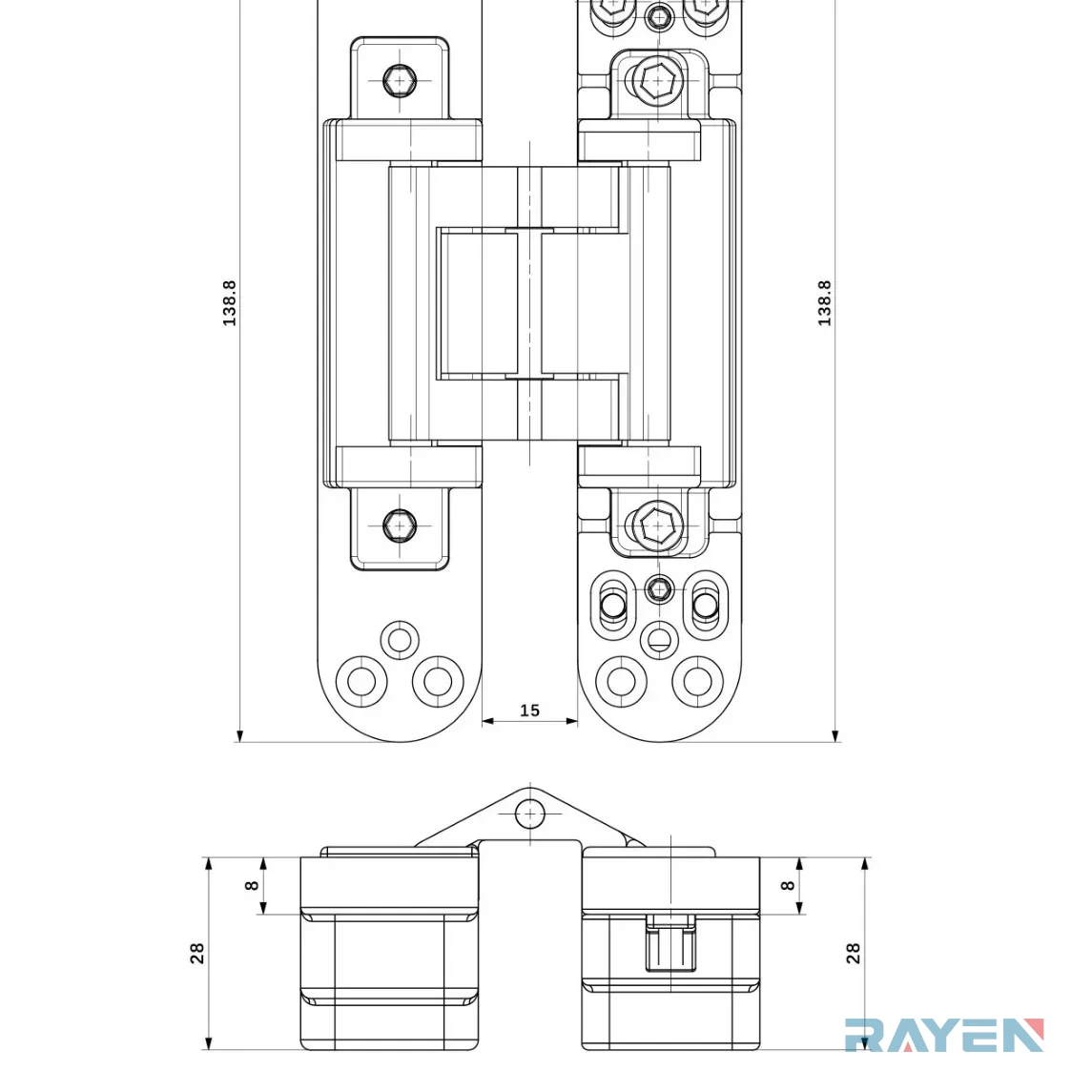

Specification
| Size | 25x138mm |
|---|---|
| Maximum load capacity (2 hinges) | 100kg |
| Minimum door thickness | 33mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø25mm |
| Routing length | 138.8&110mm |
| Routing depth | 10&30mm |
| Adjustment | Up and down: ±3.0mm; Left and right: ±2.0mm; Front and back: ±1.0mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
