RY140 Concealed Hinge
RAYEN RY140 Concealed Hinge: maximum load capacity (2 hinges) 120kg, size 30x140mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold
Specification

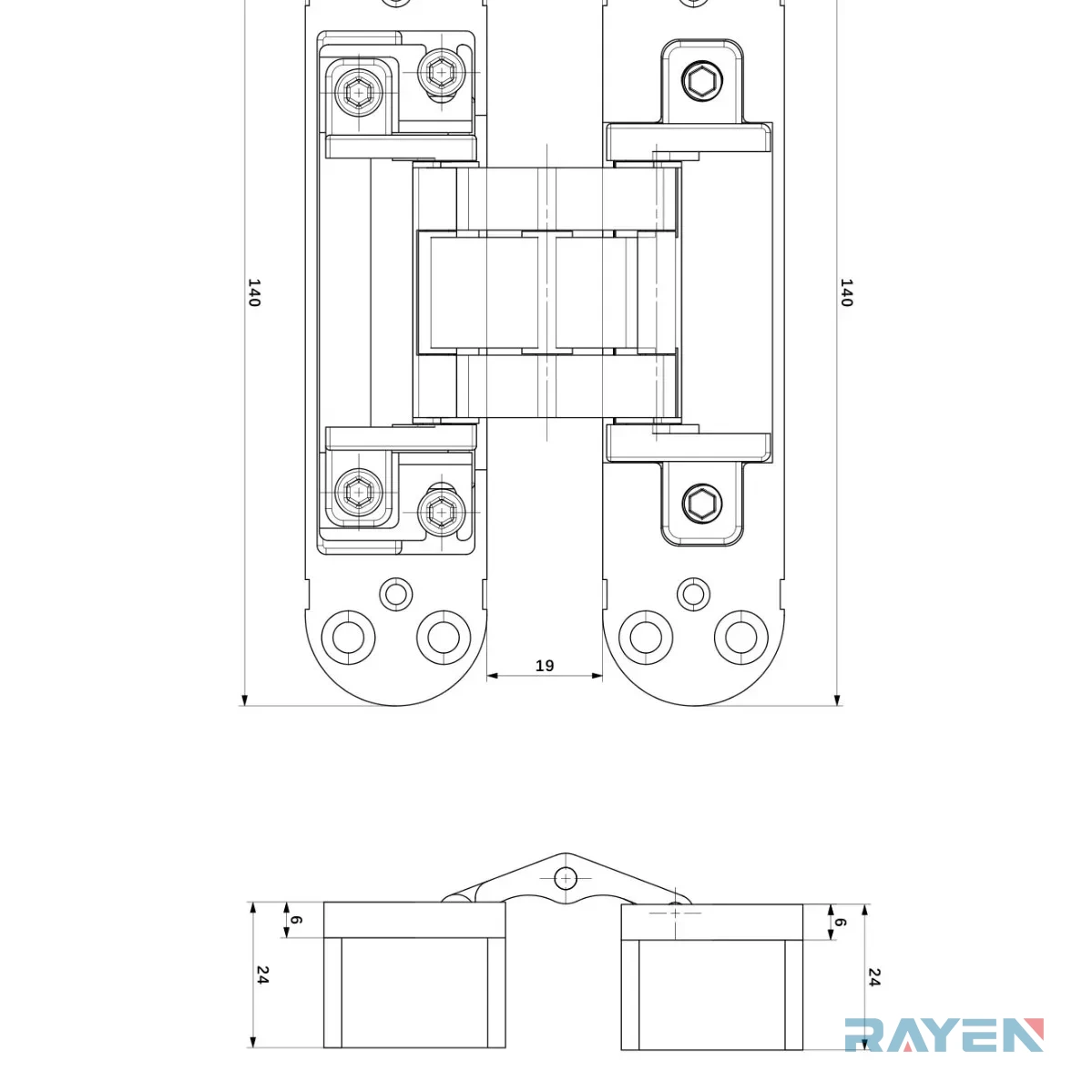

| Size | 30x140mm |
|---|---|
| Maximum load capacity (2 hinges) | 120kg |
| Minimum door thickness | 40mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø30mm |
| Routing length | 99&140mm |
| Routing depth | 7.5&27mm |
| Adjustment | Up and down: ±2.5mm; Left and right: ±1.5mm; Front and back: ±1.0mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
