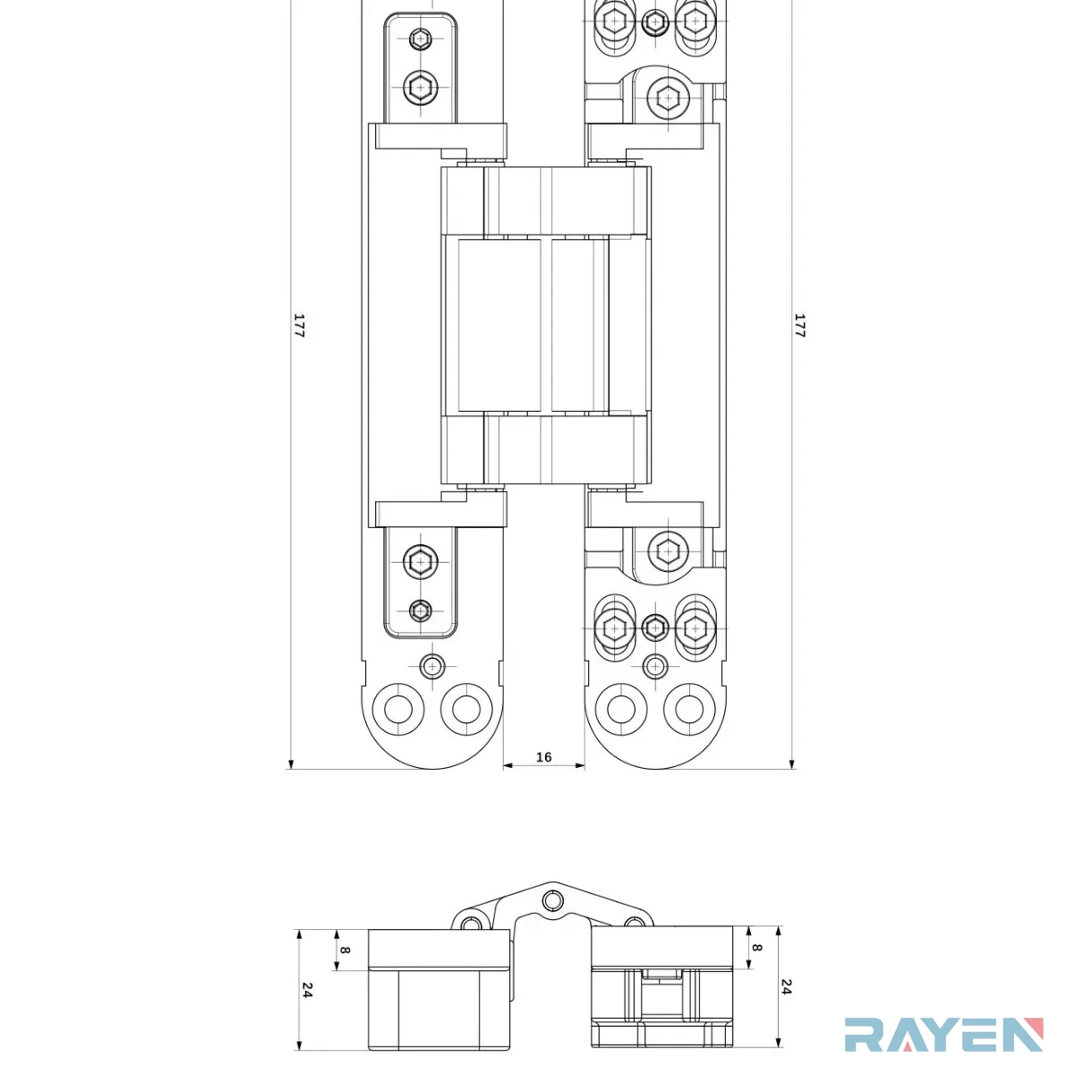

RY177 Concealed Hinge
RAYEN RY177 Concealed Hinge: maximum load capacity (2 hinges) 120kg, size 28x177mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold
Specification
| Size | 28x177mm |
|---|---|
| Maximum load capacity (2 hinges) | 120kg |
| Minimum door thickness | 38mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø28mm |
| Routing length | 141&177mm |
| Routing depth | 9.7&26.8mm |
| Adjustment | Up and down: ±3.0mm; Left and right: ±3.0mm; Front and back: ±1.0mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
