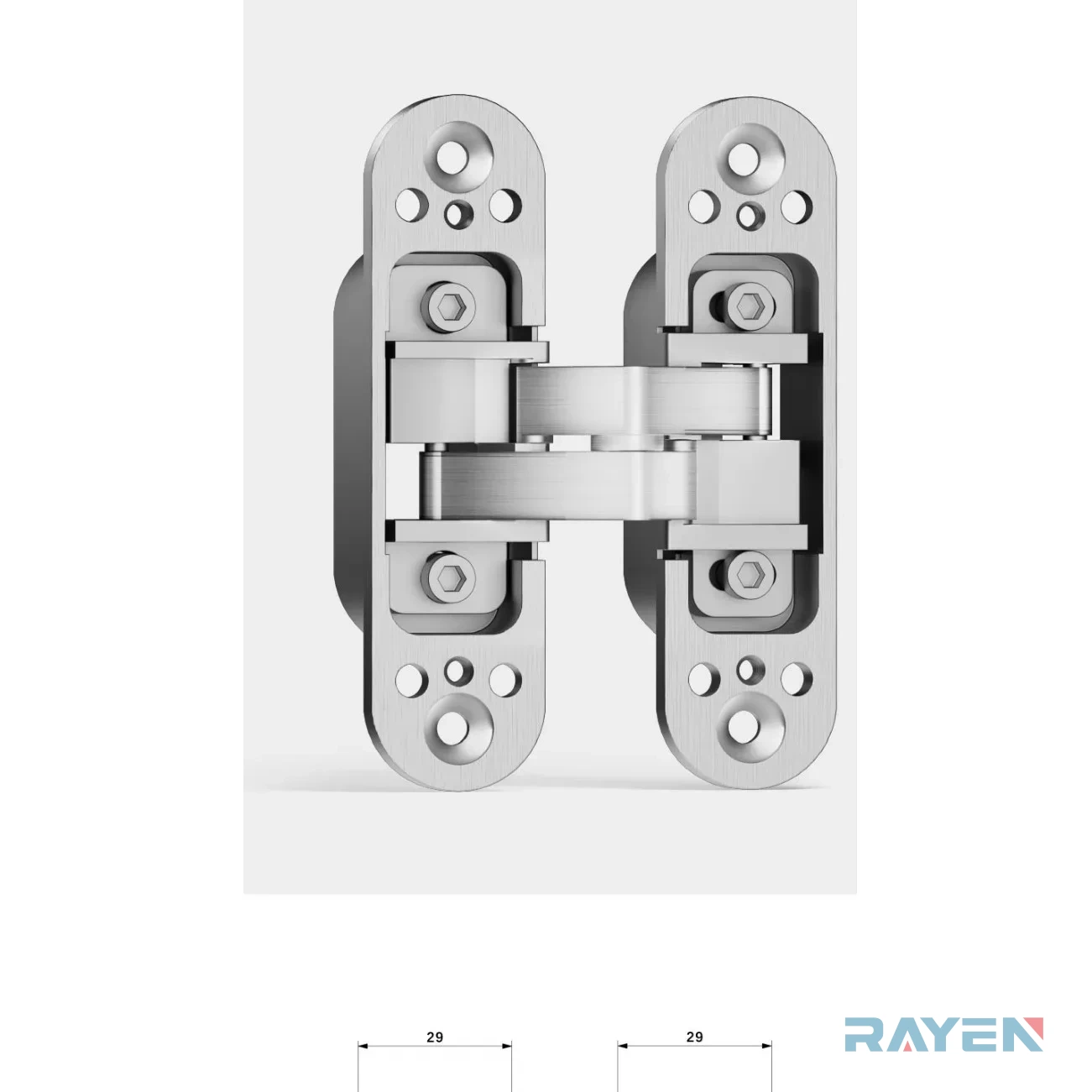

RY80 Concealed Hinge
RAYEN RY80 Concealed Hinge: maximum load capacity (2 hinges) 80kg, size 29x113mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold
Specification

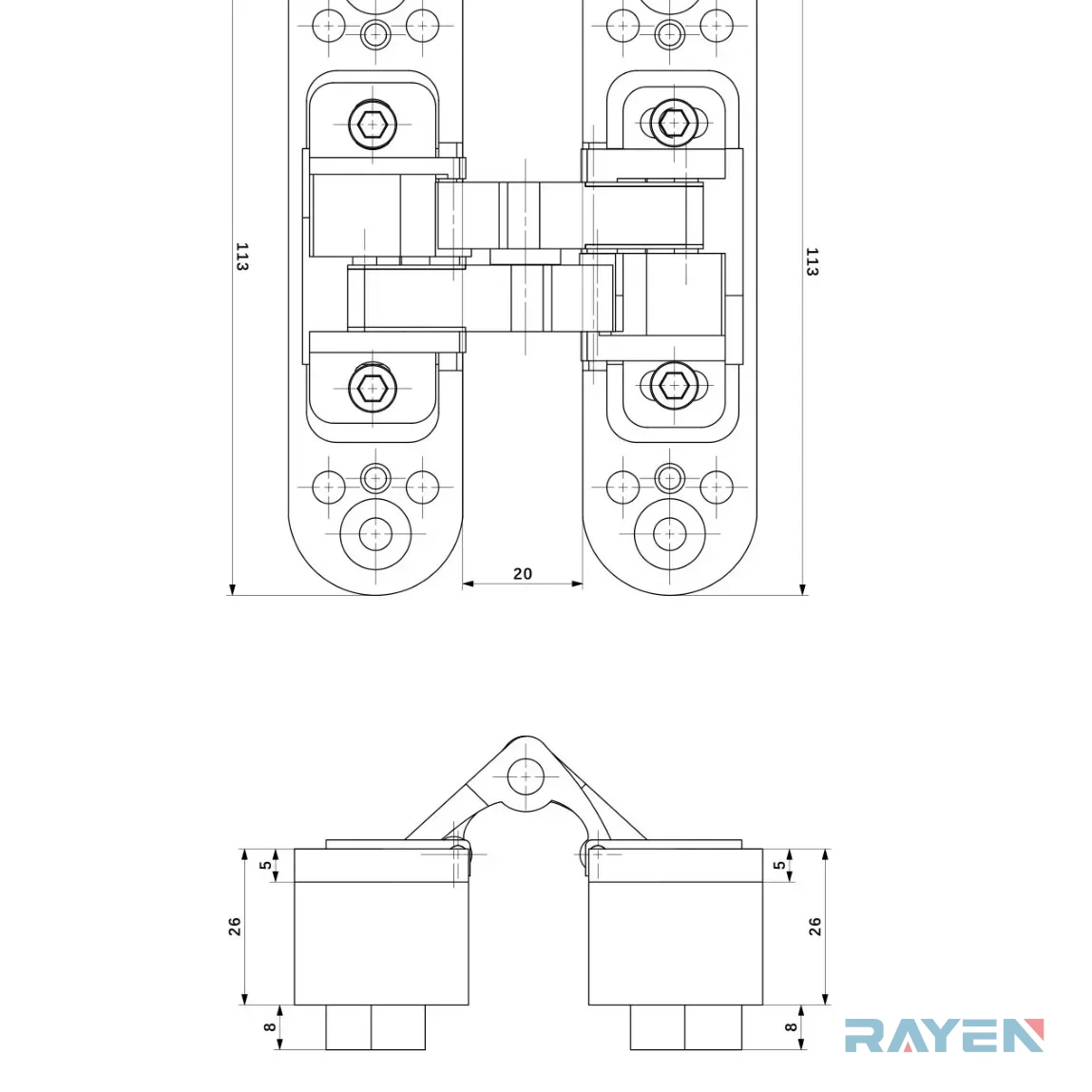

| Size | 29x113mm |
|---|---|
| Maximum load capacity (2 hinges) | 80kg |
| Minimum door thickness | 38mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø29mm |
| Routing length | 113&73mm |
| Routing depth | 7&40mm |
| Adjustment | Up and down: ±1.5mm; Front and back: ±1.5mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
