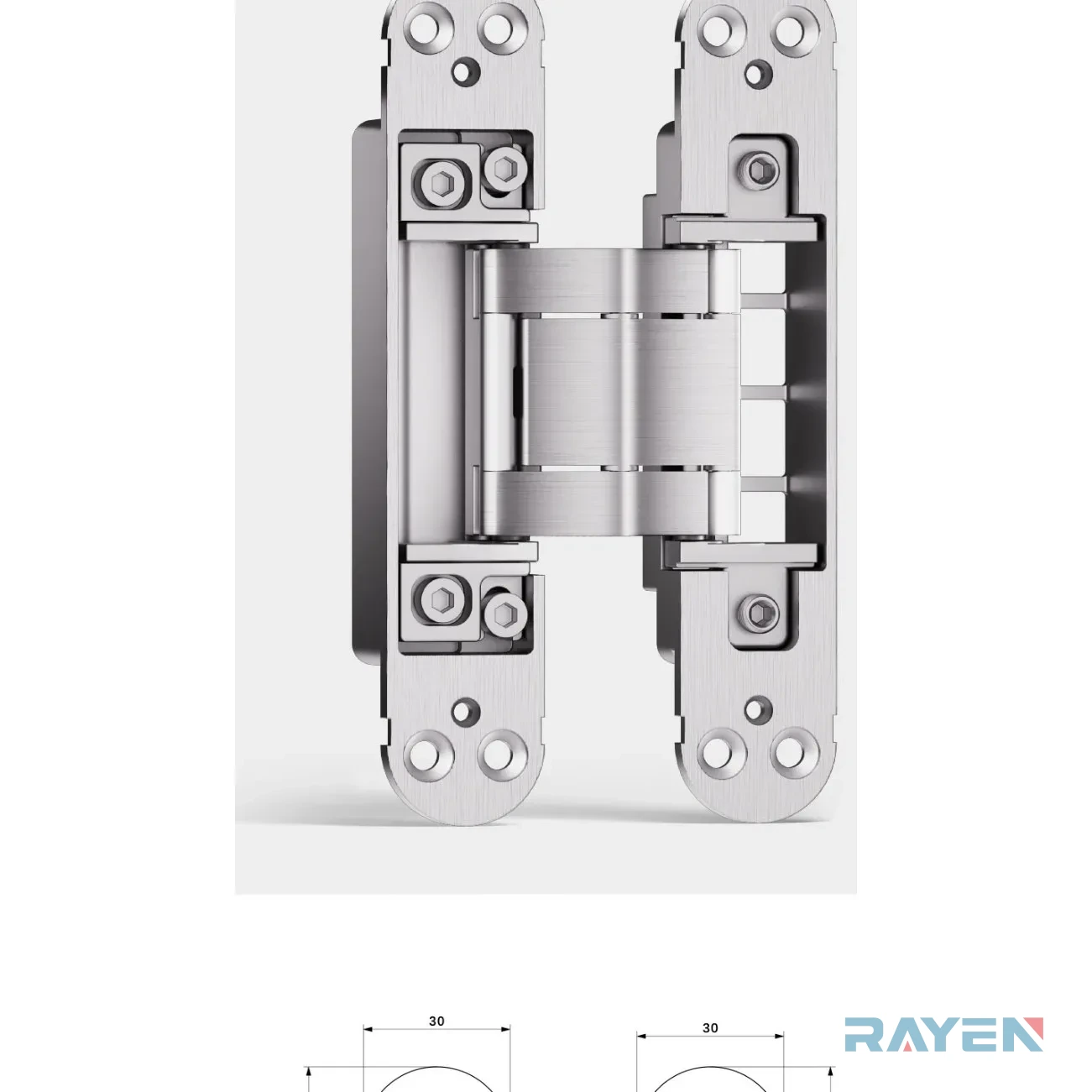

RY80J Concealed Hinge
RAYEN RY80J Concealed Hinge: maximum load capacity (2 hinges) 80kg, size 30x160mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Green Antique Bronze
- PVD High-gloss Gold
- Gunmetal Grey
- PVD Gold
Specification

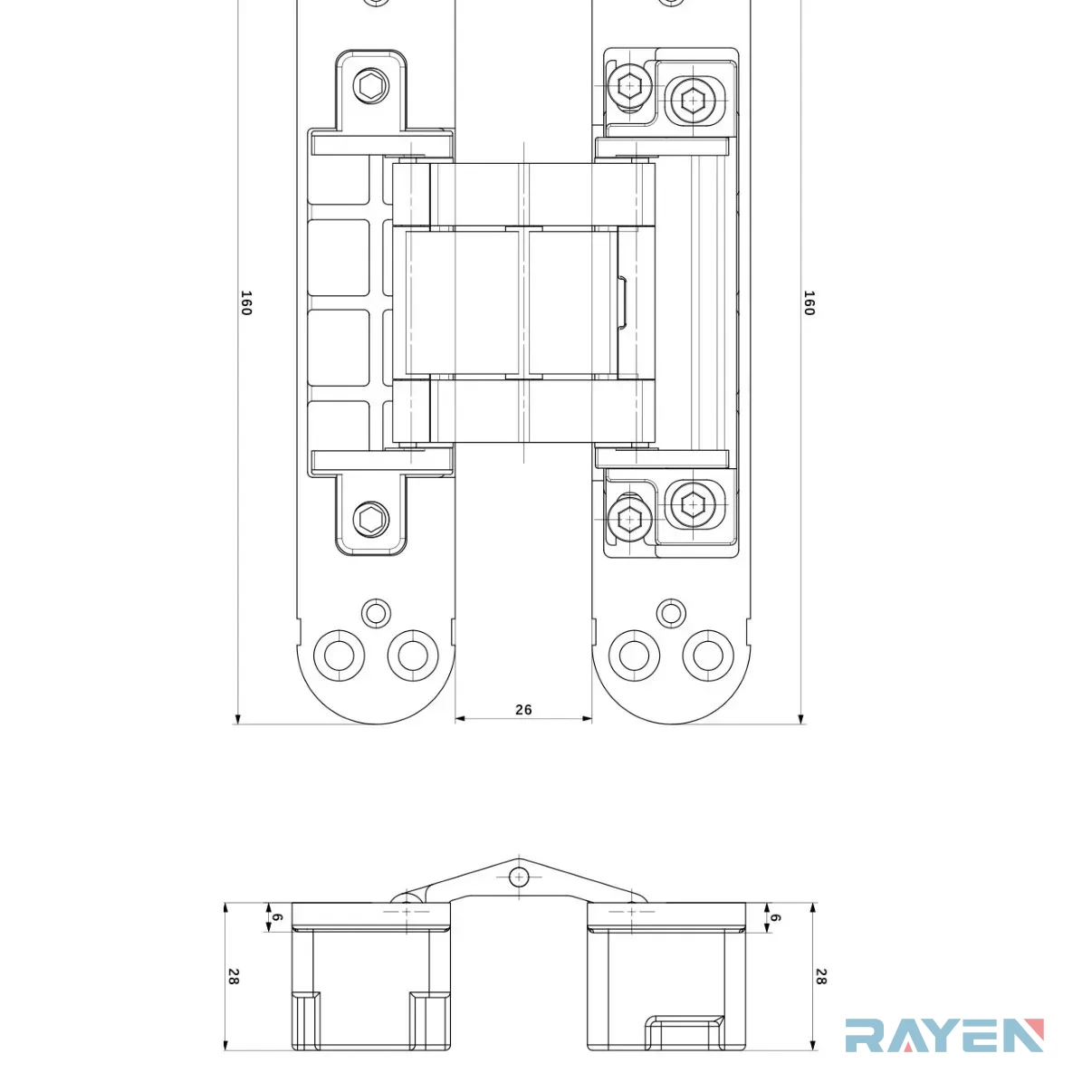

| Size | 30x160mm |
|---|---|
| Maximum load capacity (2 hinges) | 80kg |
| Minimum door thickness | 40mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø30mm |
| Routing length | 108&161mm |
| Routing depth | 6&29mm |
| Adjustment | Up and down: ±2.5mm; Left and right: ±2.0mm; Front and back: ±2.5mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
