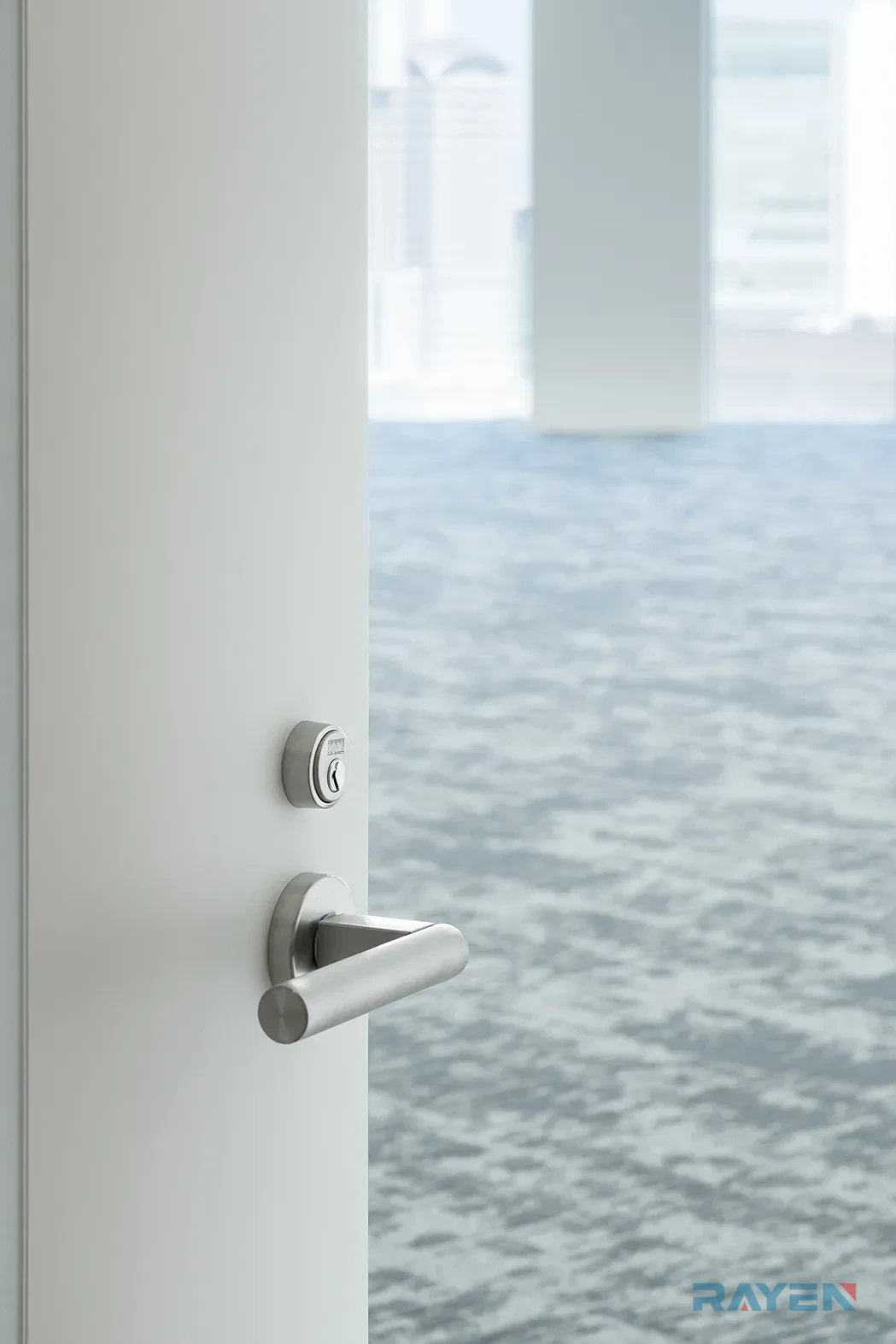

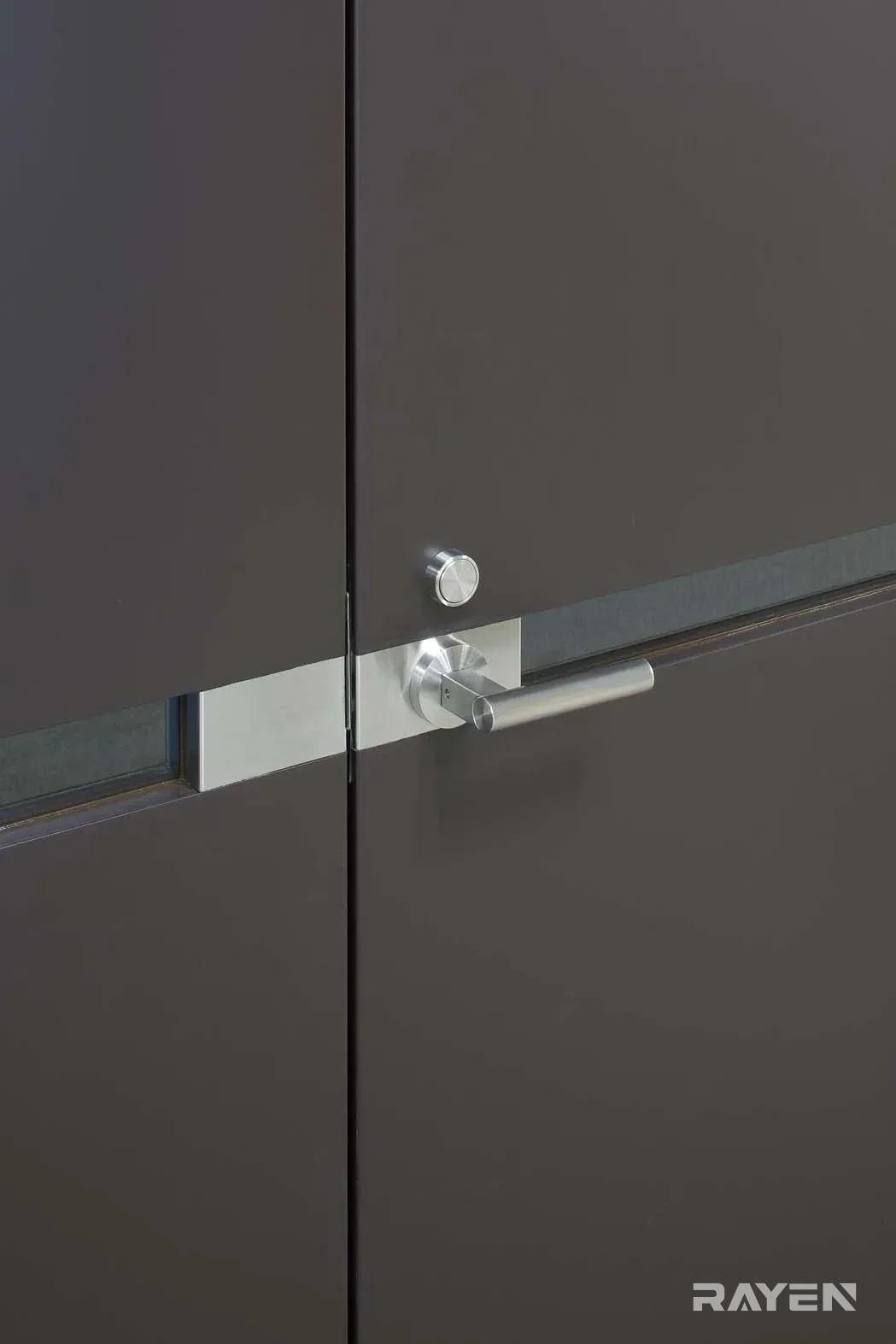

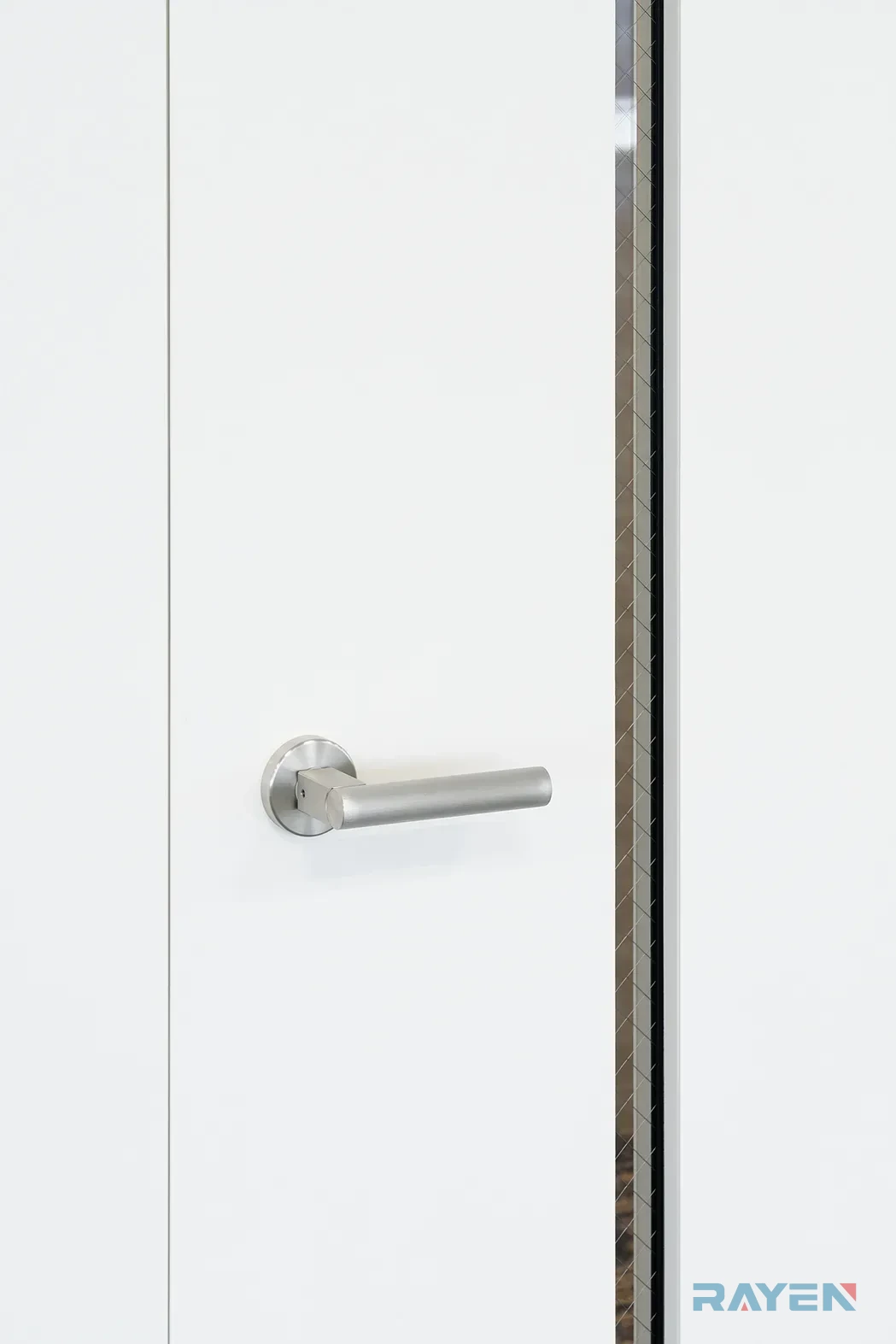

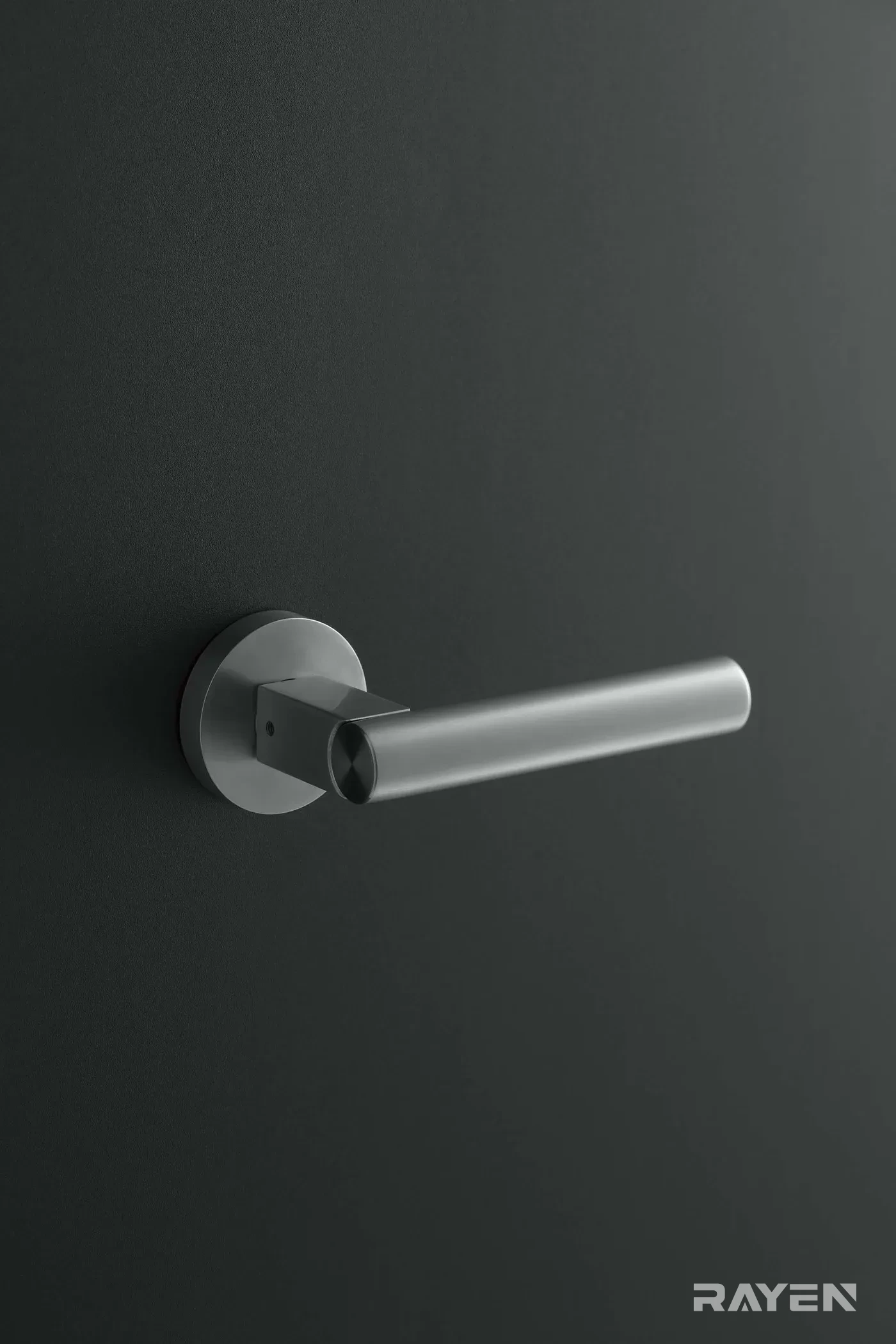

UL1016 Lever Handle
RAYEN UL1016 Lever Handle: overall length 145mm, rose diameter Ø62mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Overall length | 145mm |
|---|---|
| Lever section | Ø25mm |
| Rose diameter | Ø62mm |
| Rose depth | 13.5mm |
| Projection | 80mm |
| Fixing centre | P=34mm |
| Material | Stainless Steel |
Matching range
This lever belongs to the same design family as the pull handles below.
