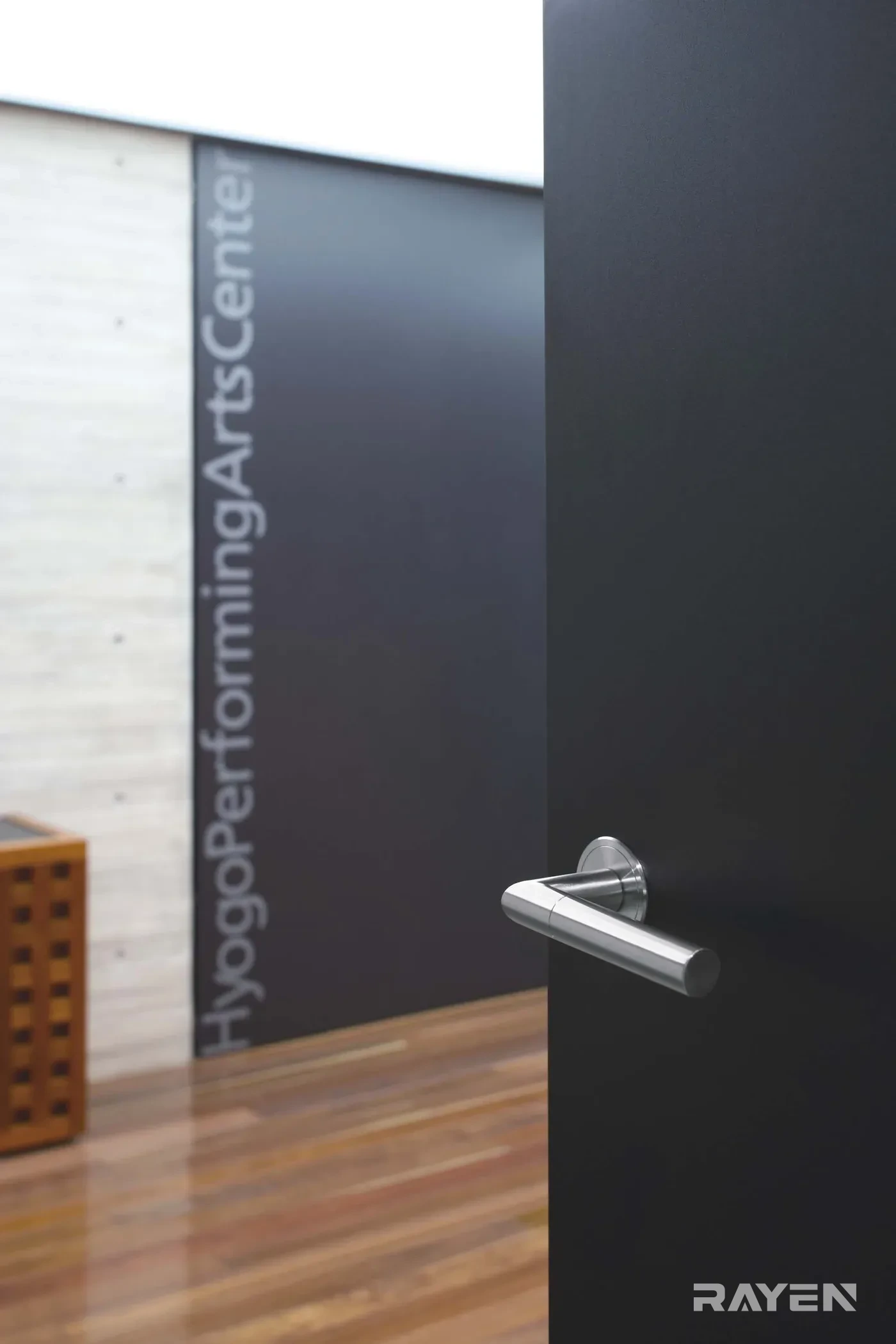

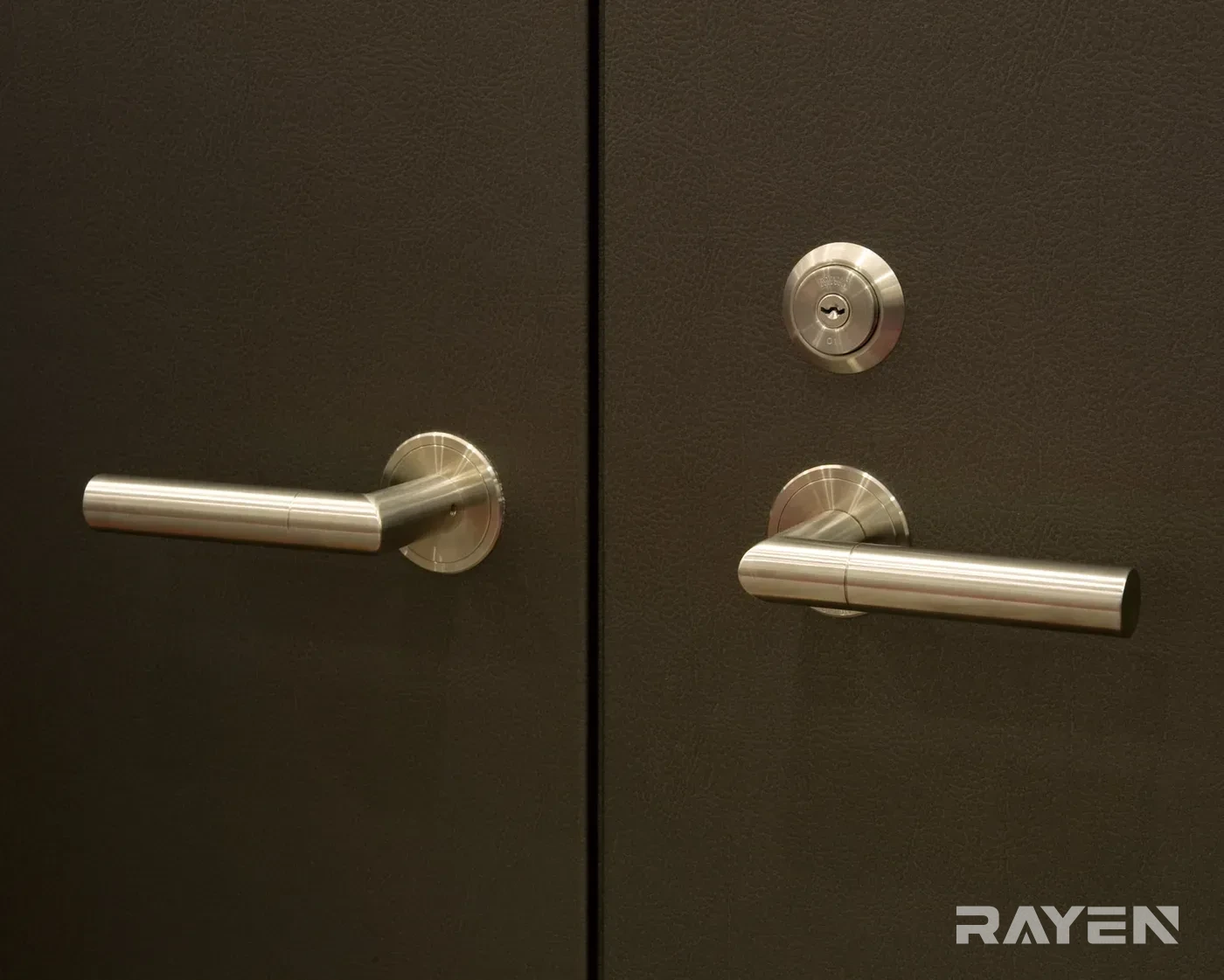

UL750 Lever Handle
RAYEN UL750 Lever Handle: rose diameter Ø53mm, backset 51mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Lever length | 128mm |
|---|---|
| Spindle centre | P=34mm |
| Rose diameter | Ø53mm |
| Lever section | Ø22mm |
| Projection | 60mm |
| Backset | 51mm |
| Door cutout | Ø46mm |
| Weight | 0.39kg |
Matching range
This lever belongs to the same design family as the pull handles below.
