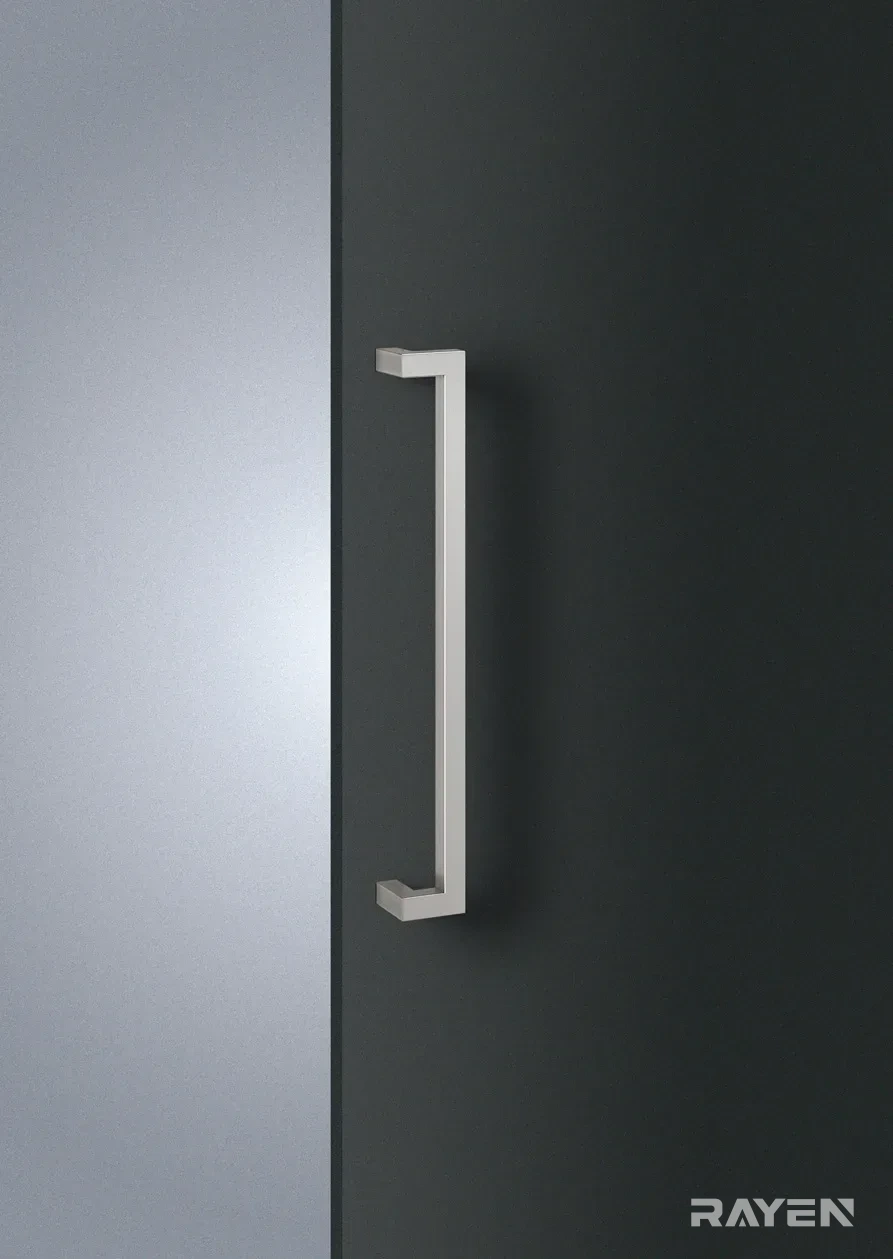

T1172 Stainless Steel Handle

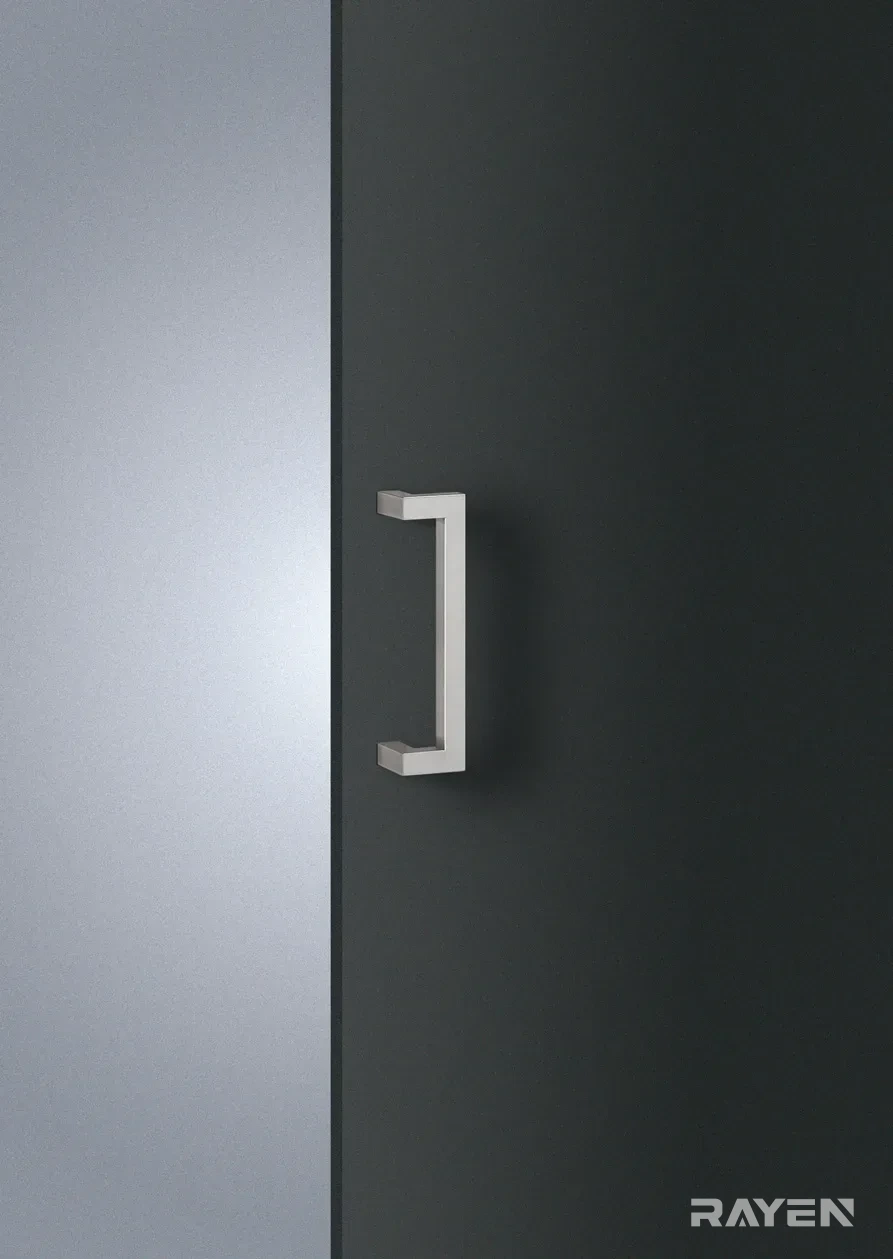

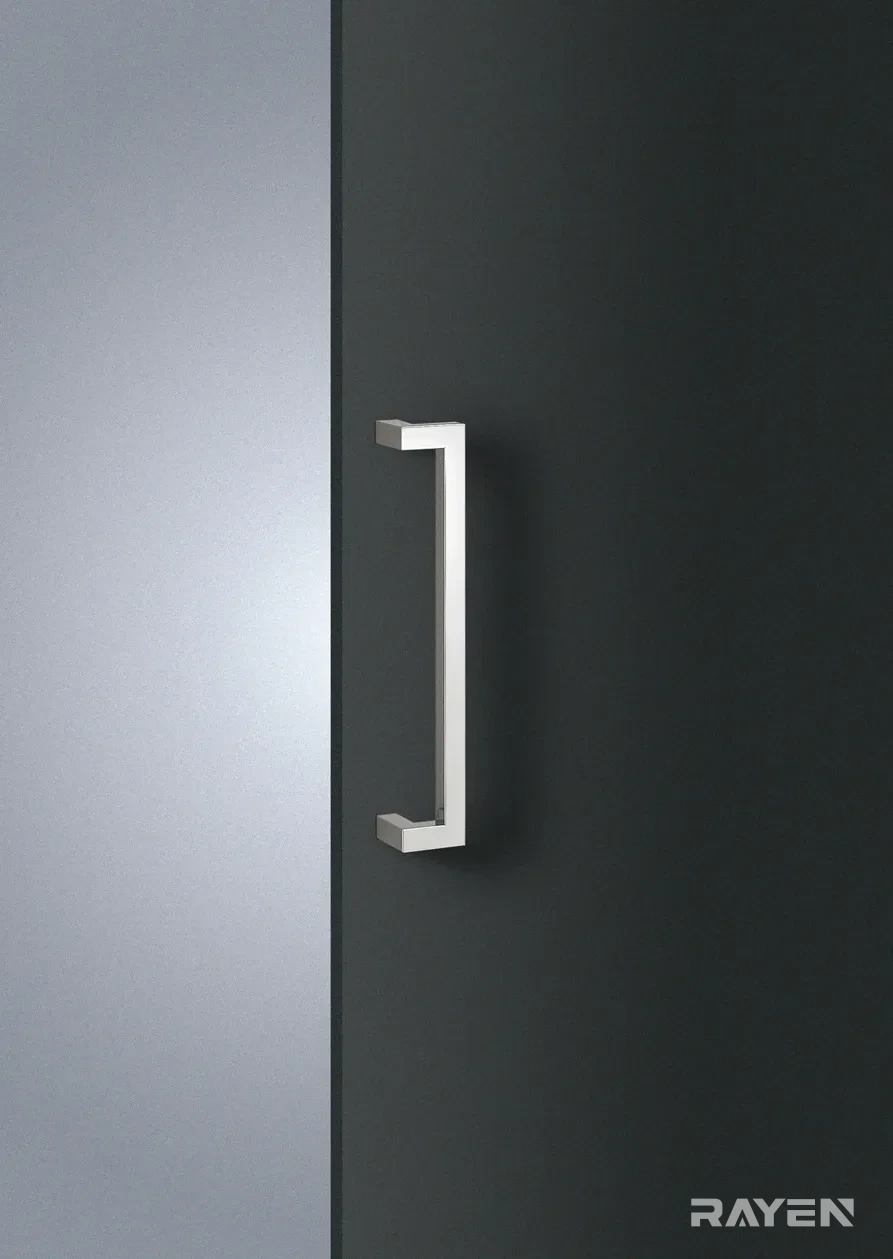

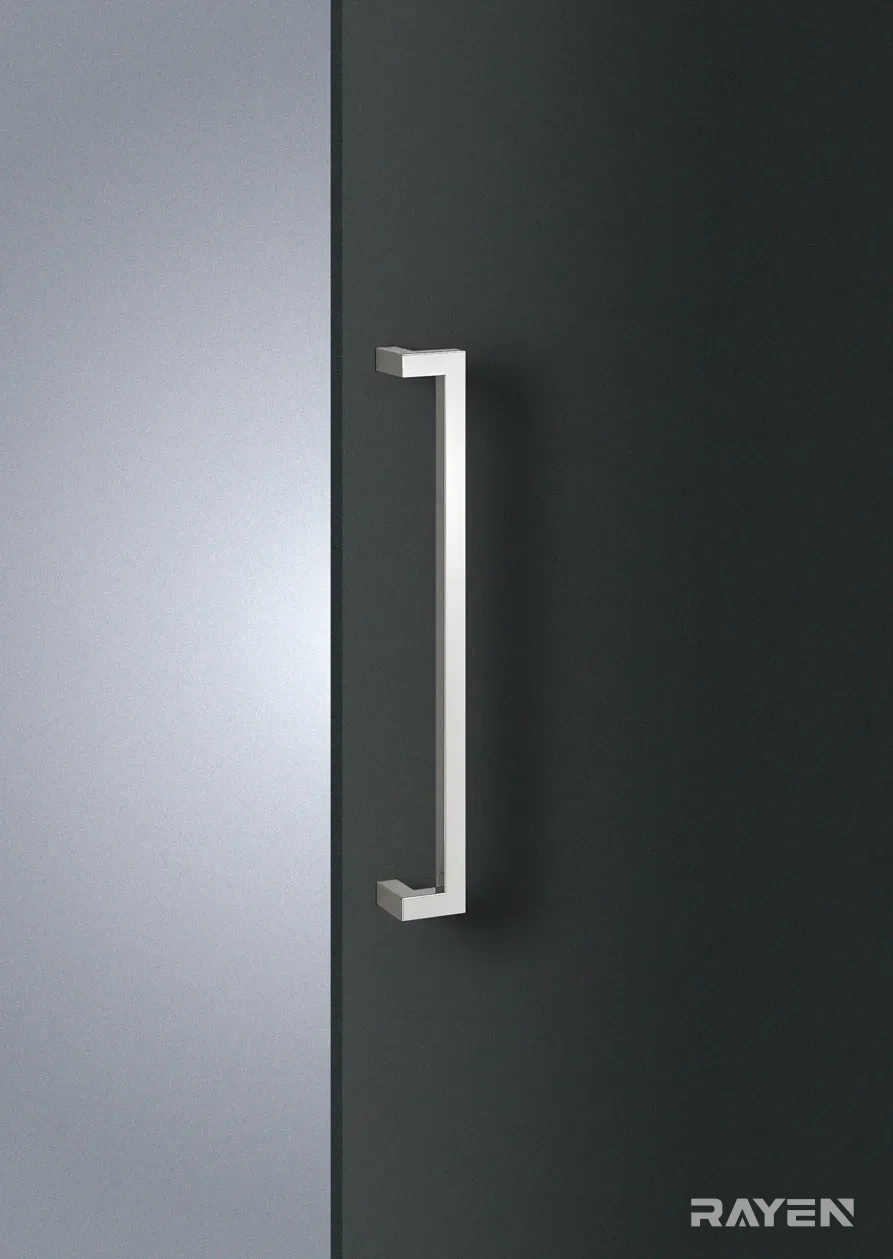

RAYEN T1172 Stainless Steel Handle: overall length 300mm/450mm/600mm, grip section 25 × 25mm (square). Made in Xiaolan, Zhongshan, also to your drawing or sample.

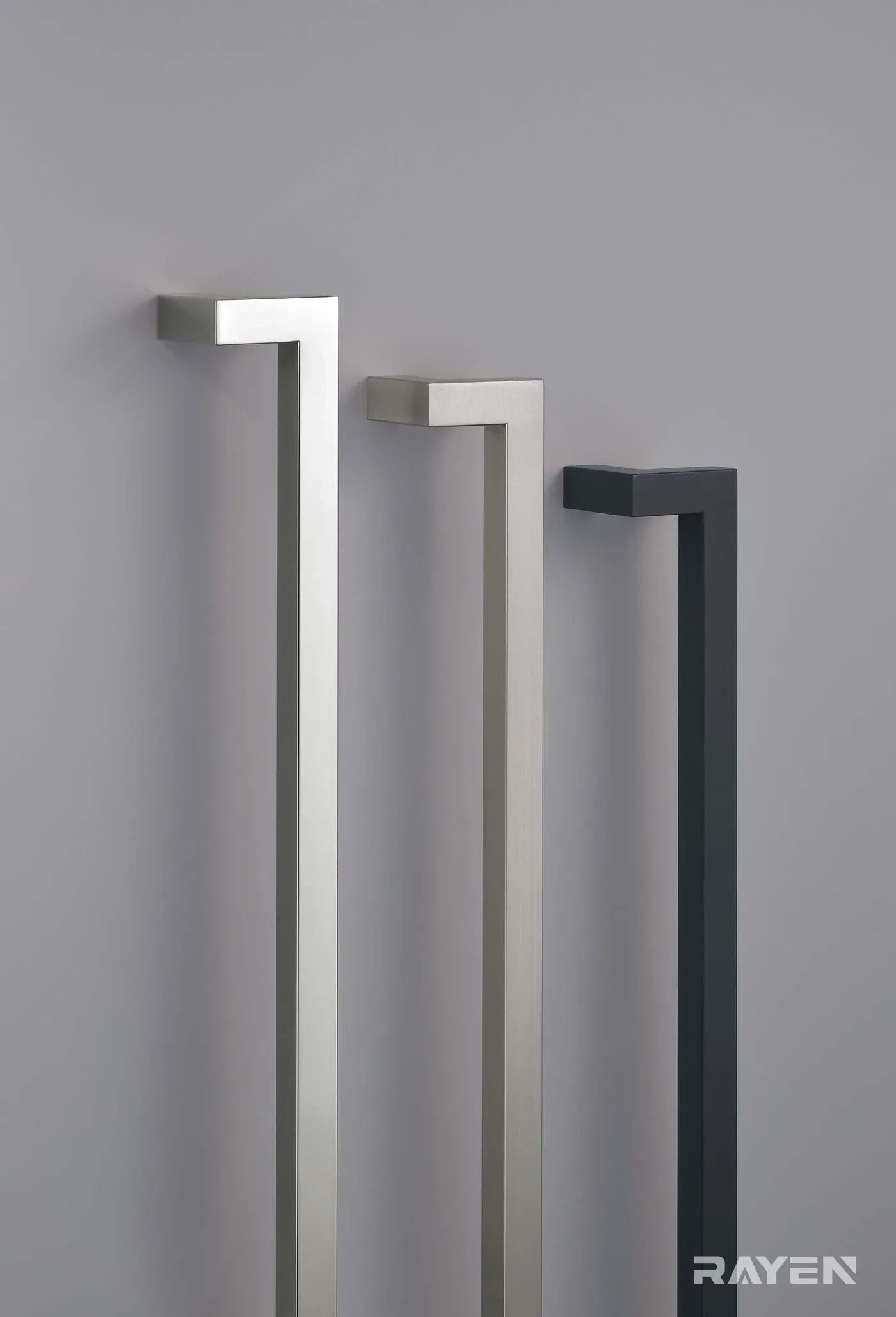

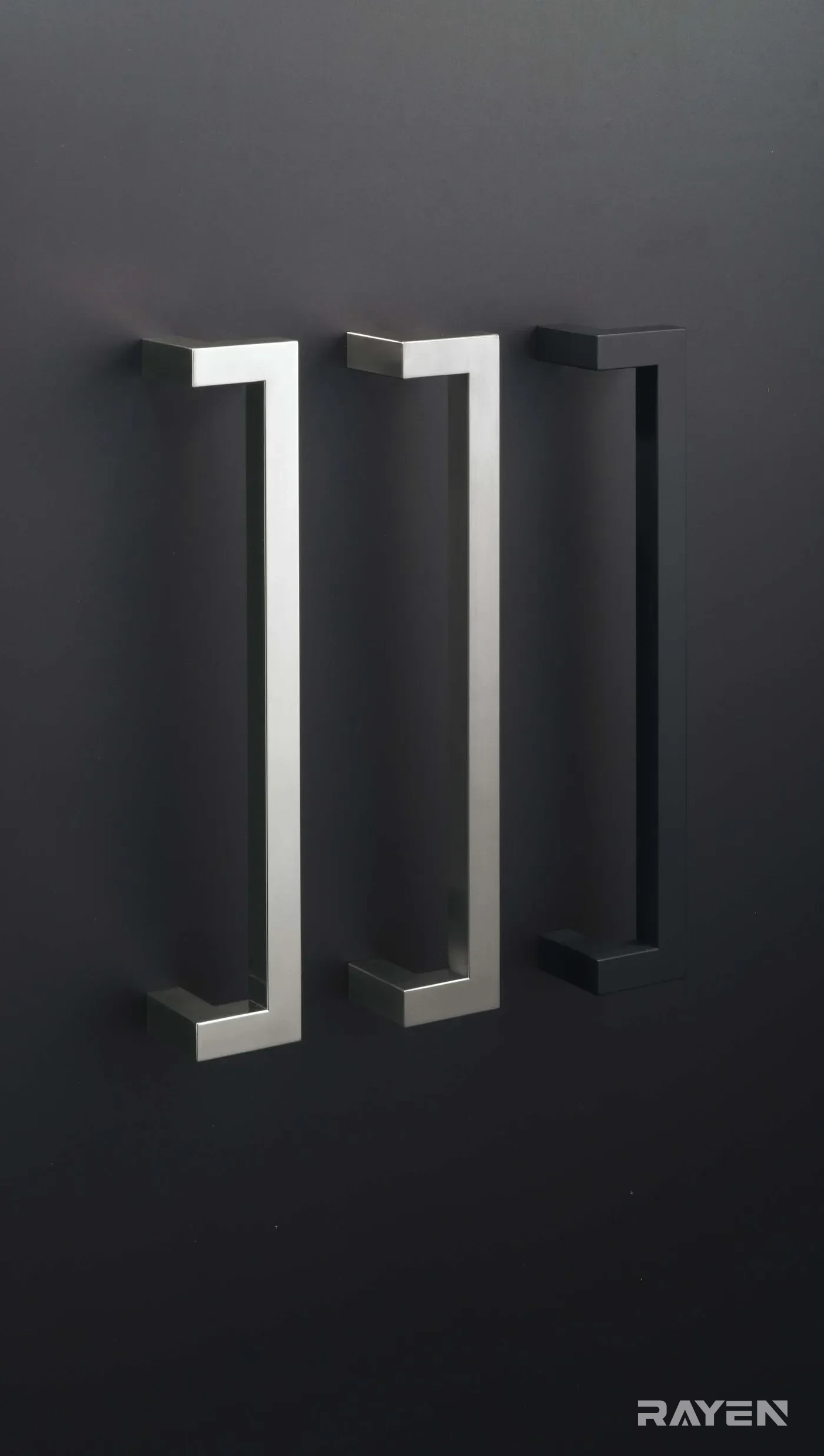

Available finishes
- Satin stainless

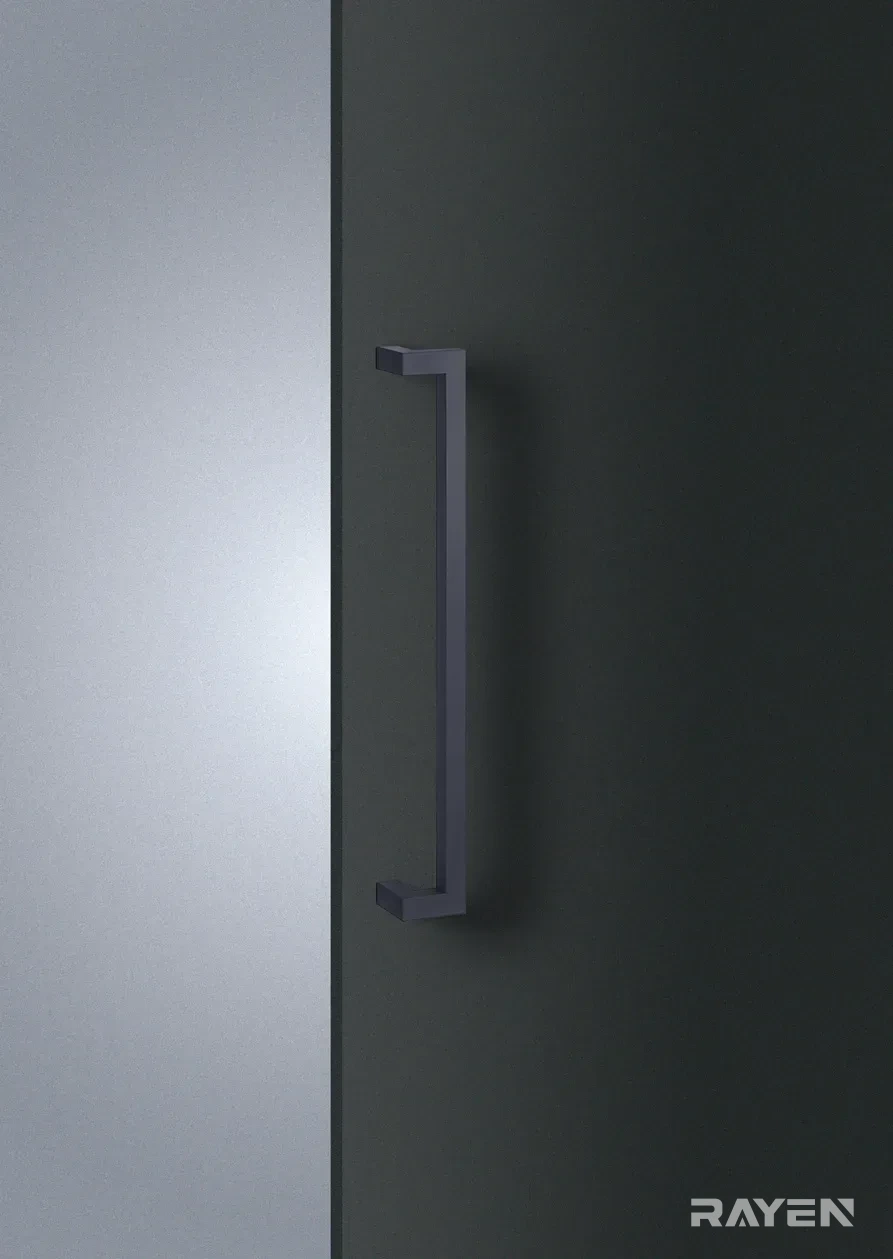

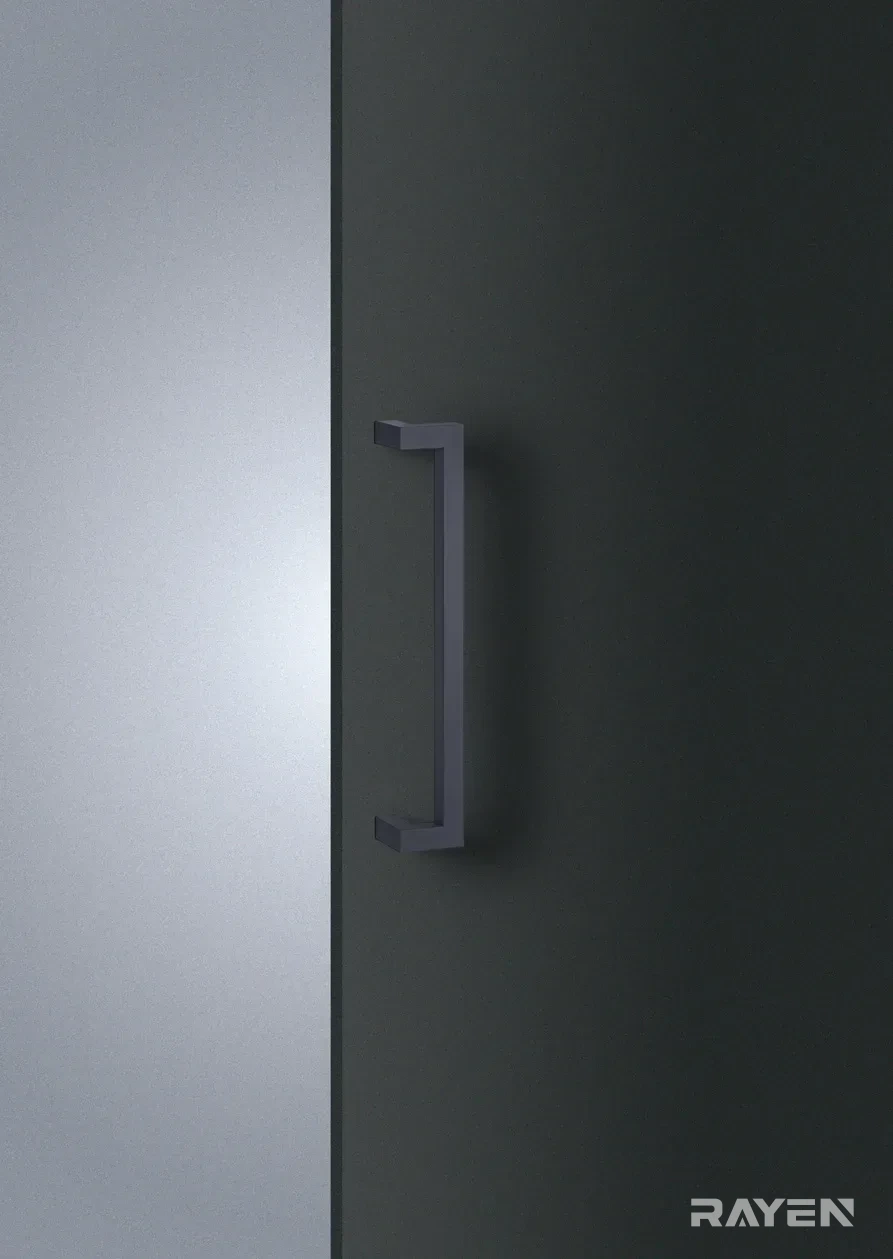

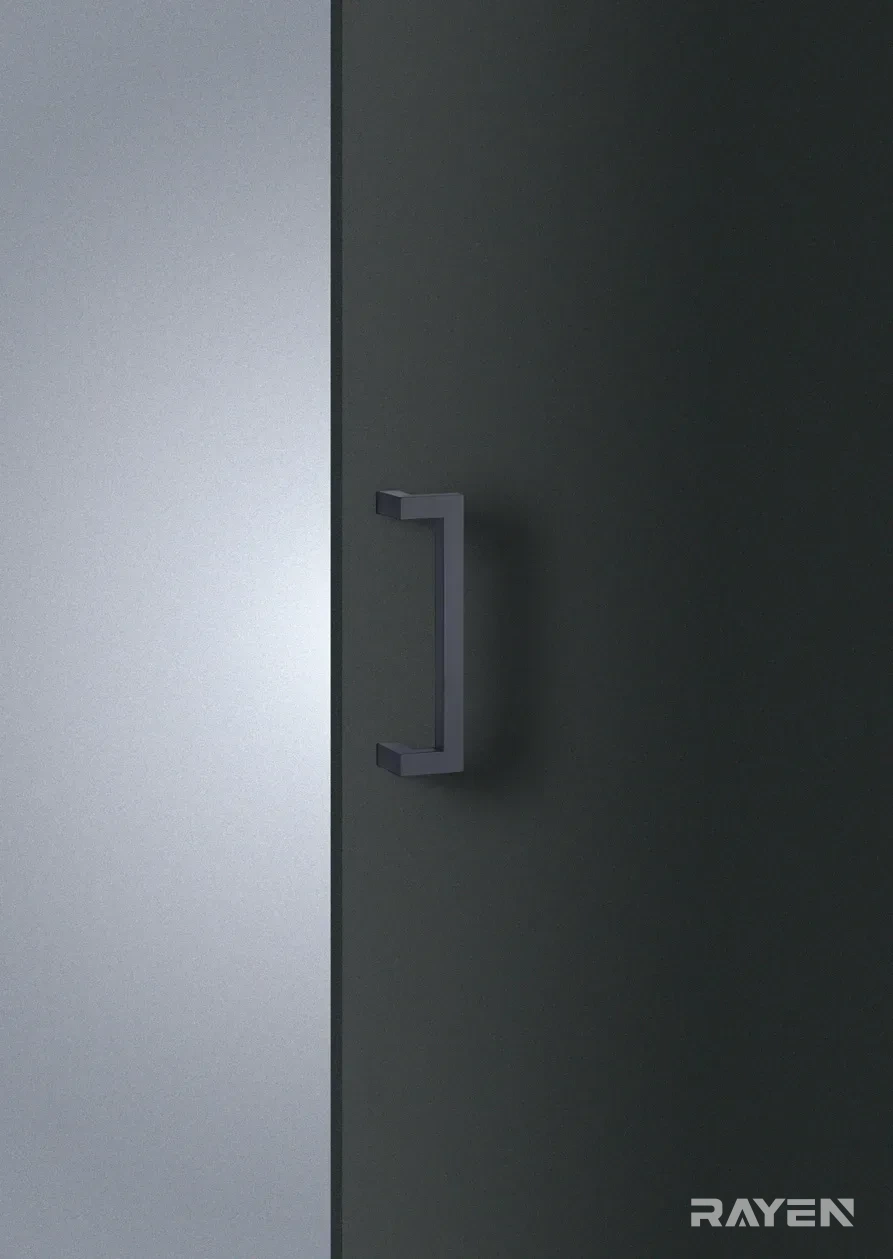

- Matt black
Specification
| Centre distance | P=275mm (L300) / P=425mm (L450) / P=575mm (L600) |
|---|---|
| Overall length | 300mm / 450mm / 600mm |
| Grip section | 25 × 25mm (square) |
| Projection | 65mm |
| Weight | 1.2kg |
| Available lengths | 300–600mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
