T2336 · 1 of 8

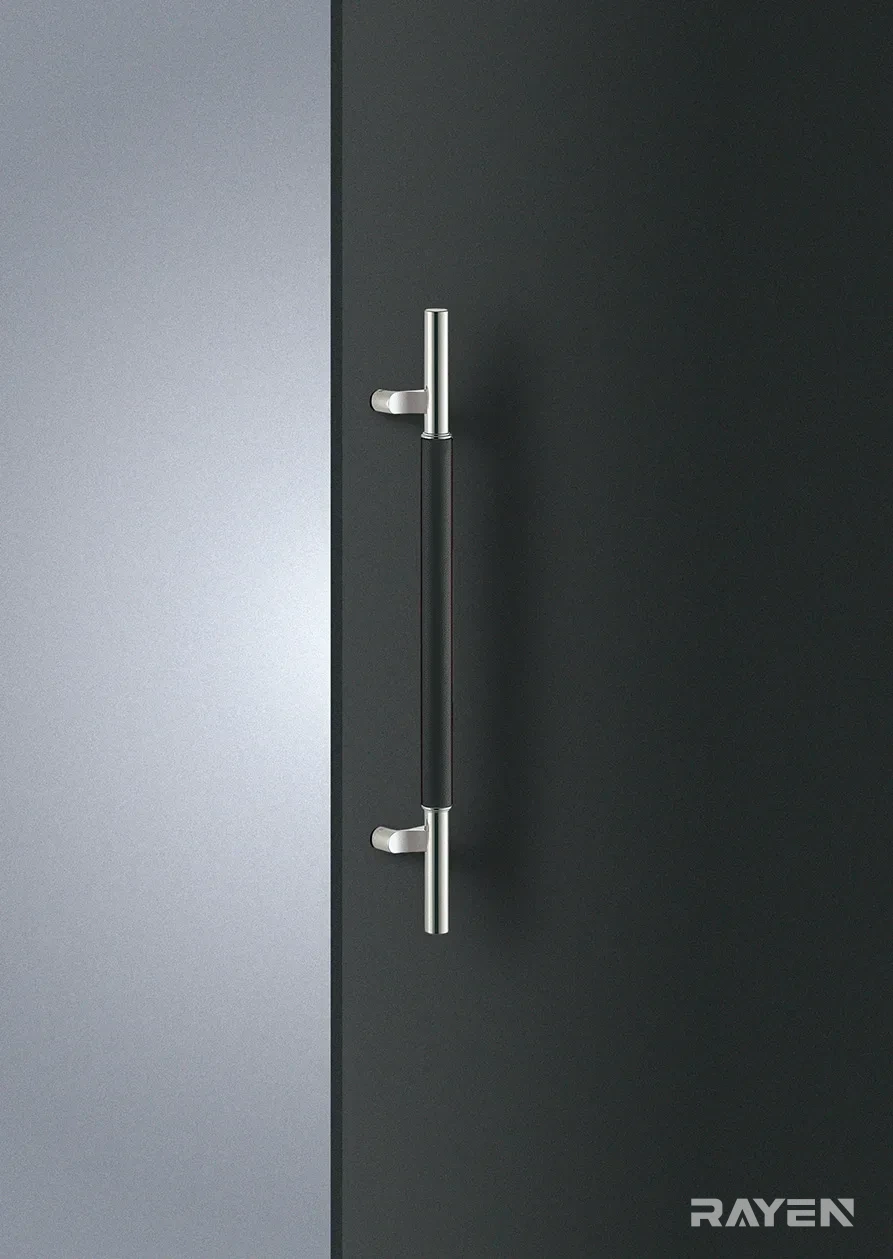

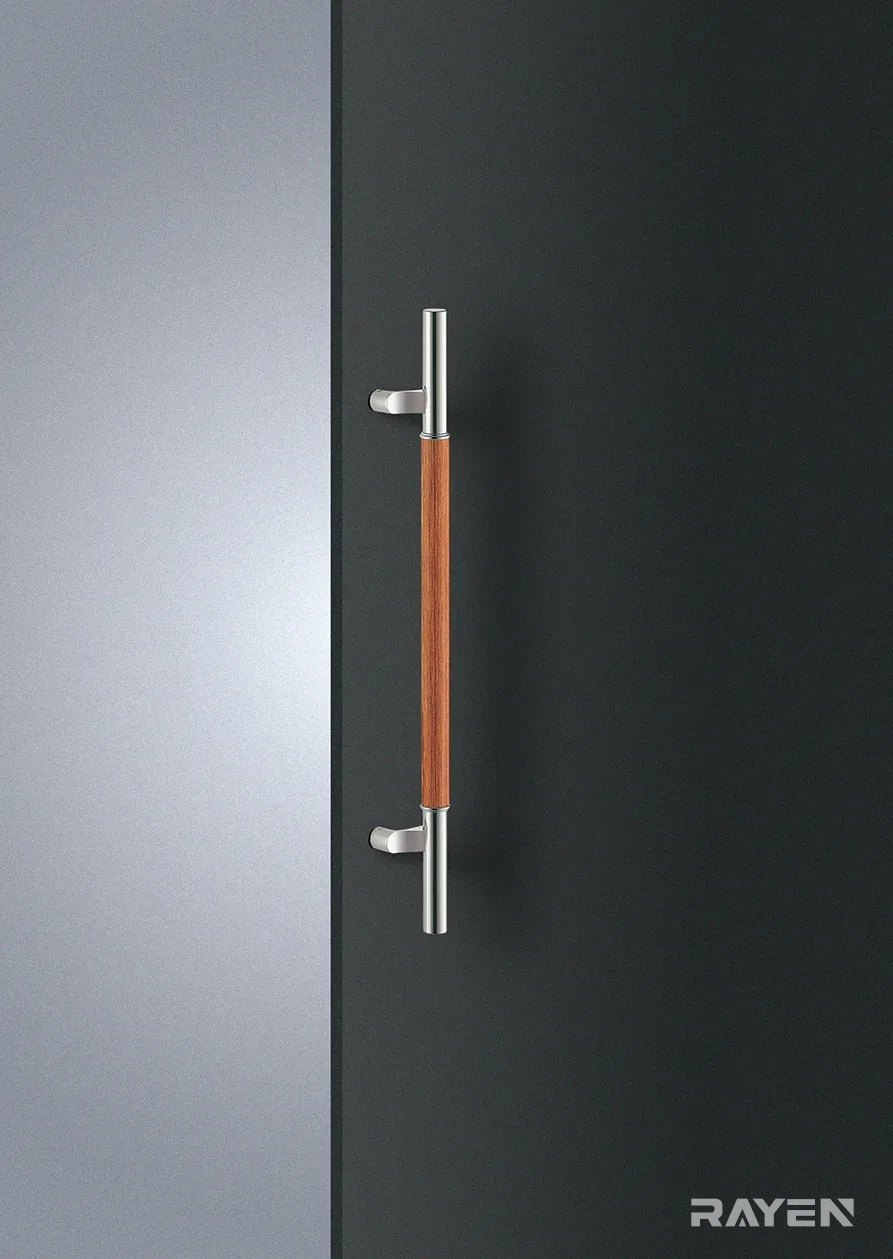

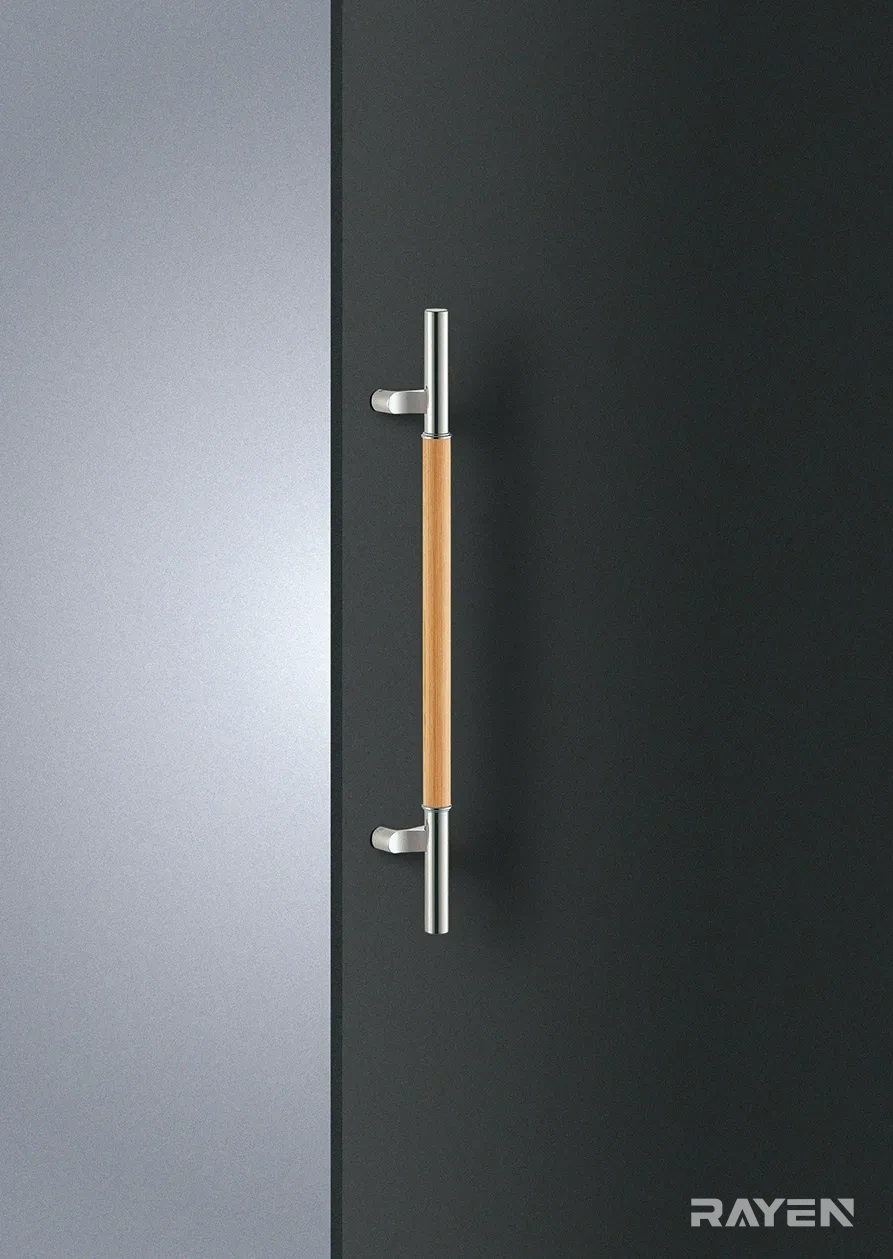

T2336 Stainless Steel Handle
RAYEN T2336 Stainless Steel Handle: centre distance 475mm, overall length 675mm, rose diameter Ø32mm, grip section 25mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=475mm |
|---|---|
| Overall length | 675mm |
| Grip section | 25mm |
| Grip length | 400mm |
| Rose diameter | Ø32mm |
| Projection | 66mm |
| Weight | 2.7kg |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
