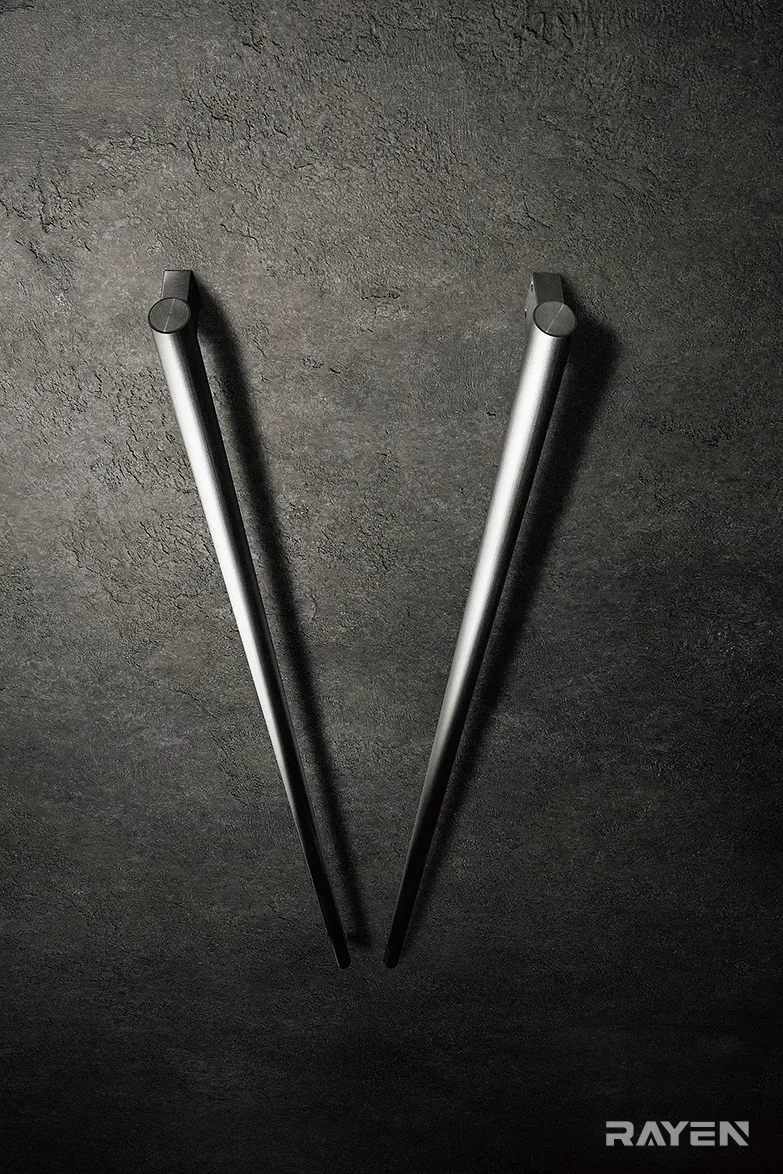

T2973 Stainless Steel Handle
RAYEN T2973 Stainless Steel Handle: centre distance 1480–2980mm, overall length 1600–3100mm（按单定制）, grip section 25 × 8mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
Specification
| Centre distance | P=1480–2980mm |
|---|---|
| Overall length | 1600–3100mm (made to order) |
| Length bands | A 1600–2200 / B 2201–2700 / C 2701–3100 |
| Fixing centre | P1=40mm at each end |
| Grip section | 25 × 8mm |
| Projection | 73mm |
| Available lengths | 1600–3100mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
