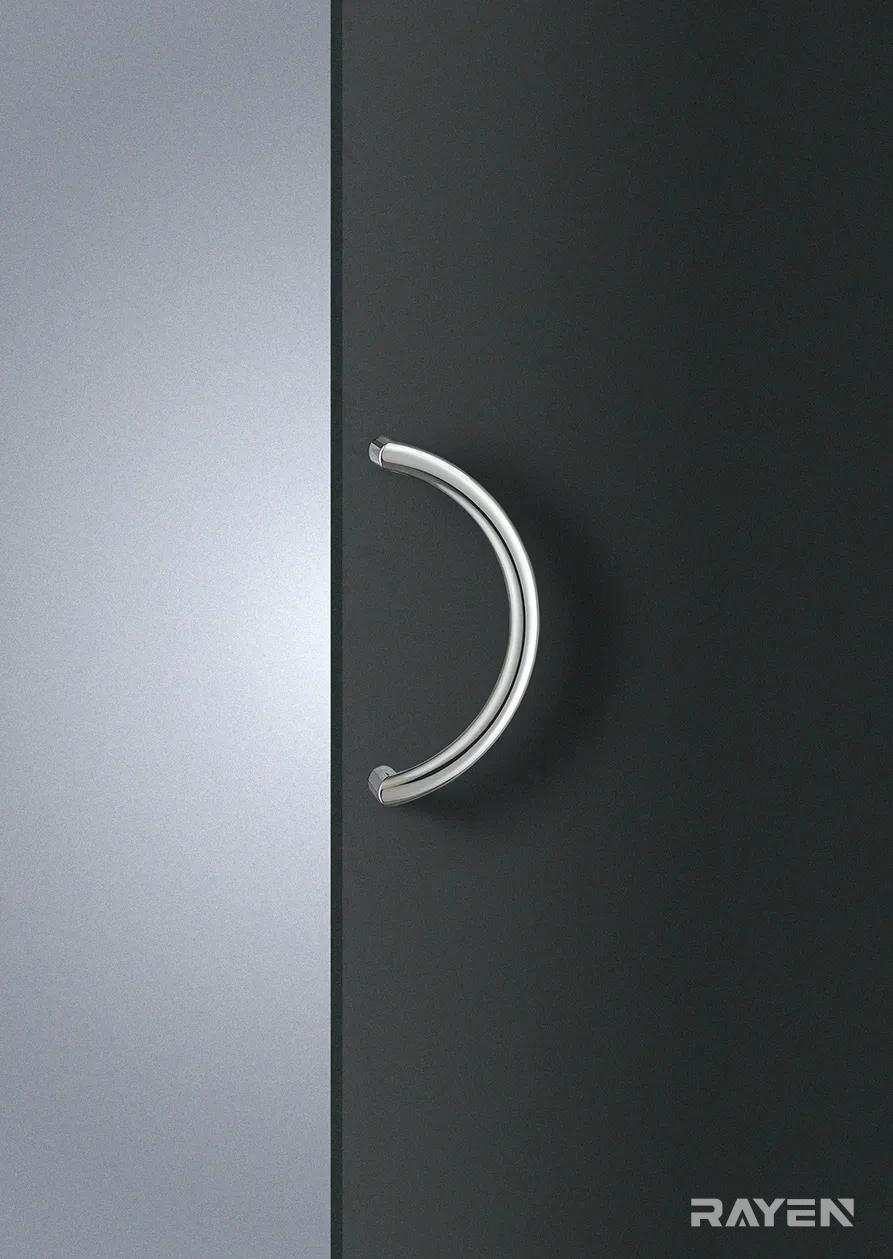

T5580 Stainless Steel Handle
RAYEN T5580 Stainless Steel Handle: centre distance 223mm, overall length 250mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=223mm |
|---|---|
| Overall length | 250mm |
| Grip reach | 117mm |
| Projection | 60mm (L250) / 65mm (L400) |
| Weight | 0.9kg |
| Available lengths | 250–400mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
