T620 Stainless Steel Handle
RAYEN T620 Stainless Steel Handle: centre distance 425mm, overall length 600mm/800mm, grip section 25mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 600mm / 800mm |
| Grip section | 25mm |
| Projection | 60mm |
| Weight | 2.4kg |
| Available lengths | 600–800mm |
| Fixing screw | M6 |
| Fixing hole | φ8mm |
| Fixing hole (glass door) | φ12mm |
Matching range

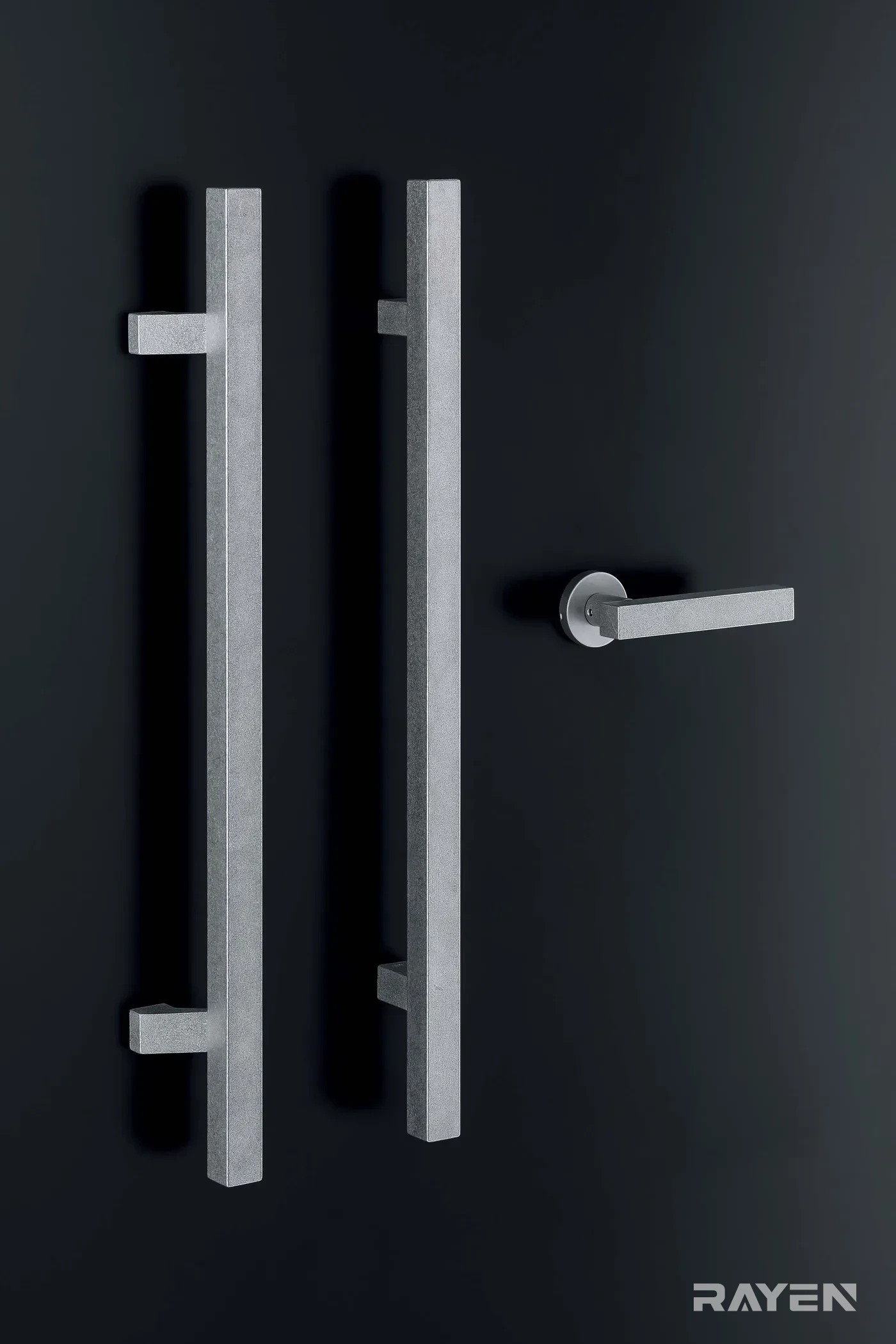

Matching lever handles in the same design: UL1052. Available as a set.
