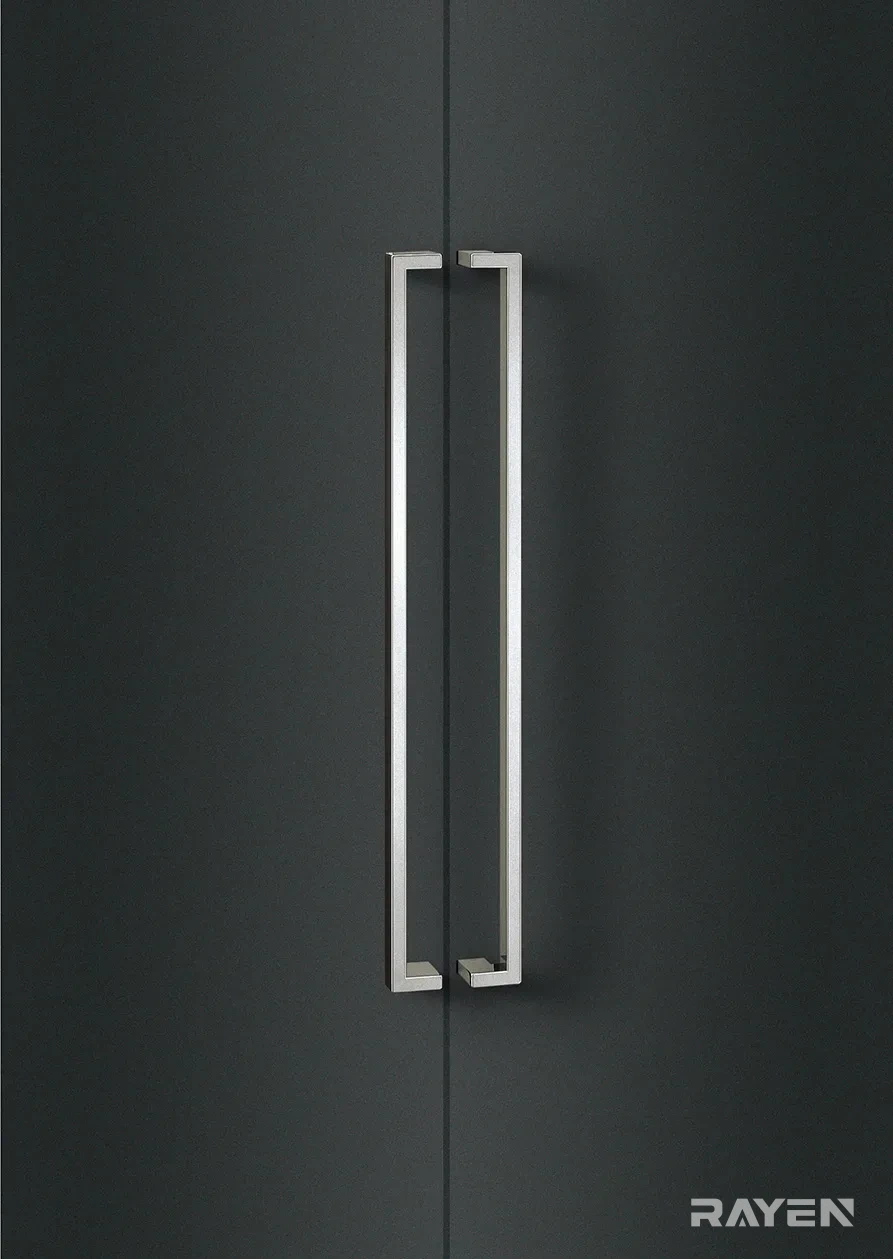

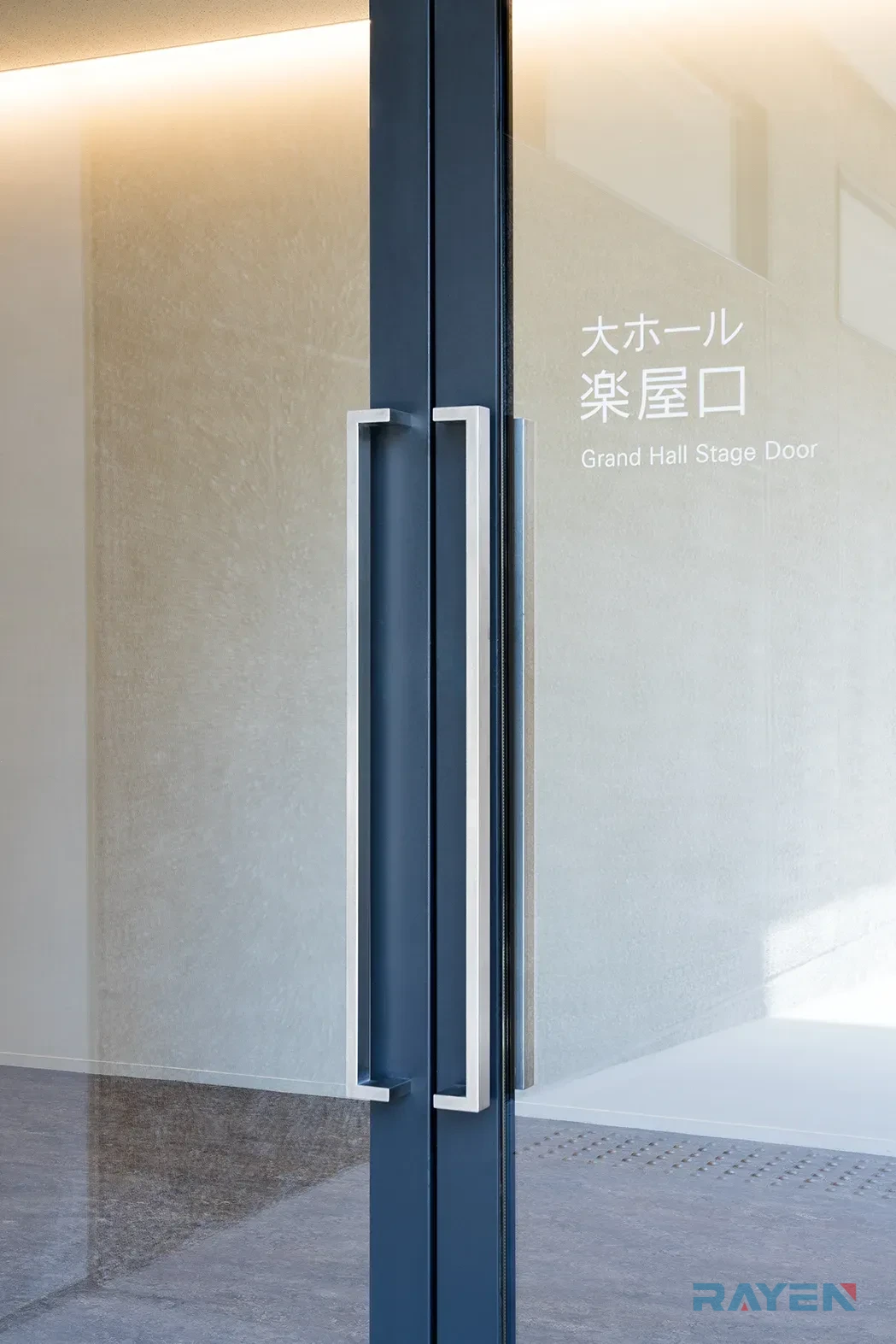

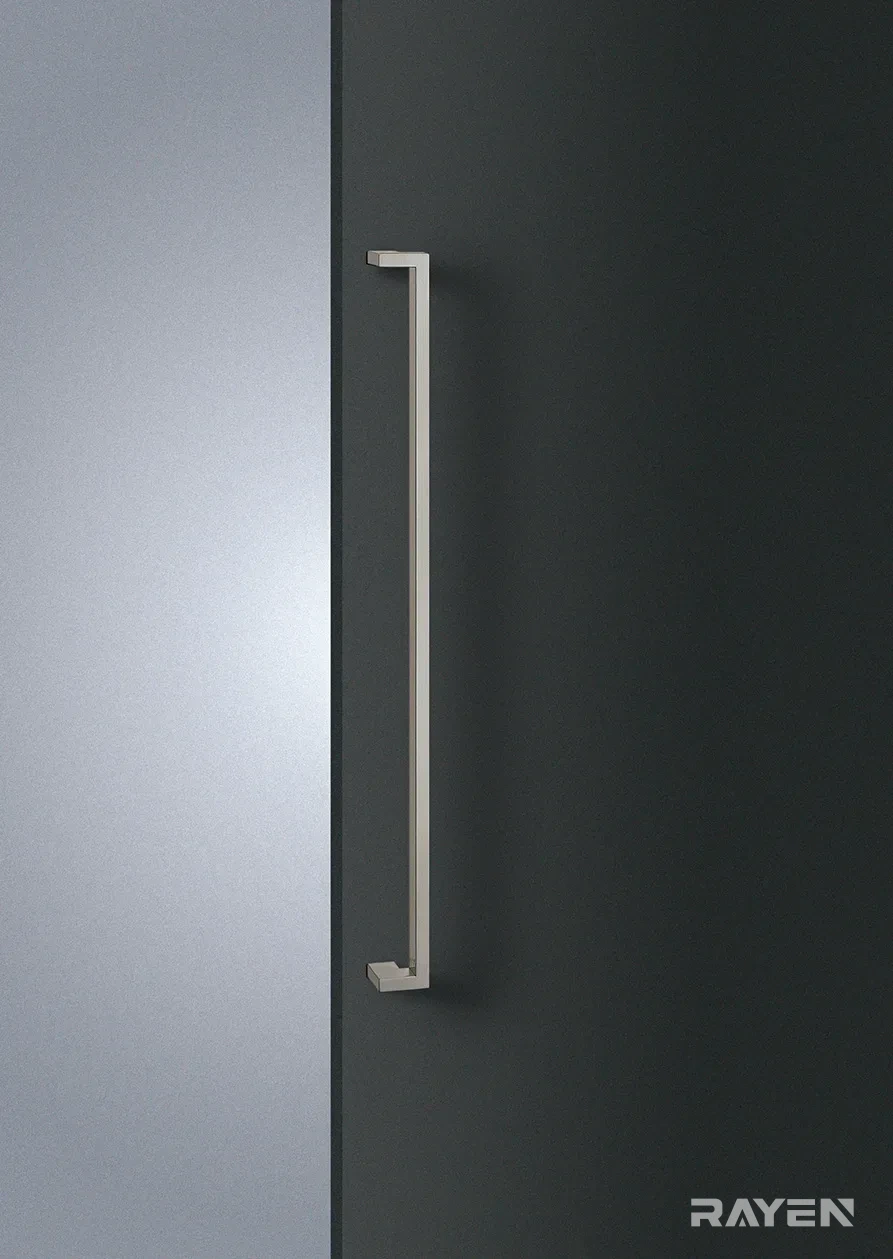

T630 Stainless Steel Handle
RAYEN T630 Stainless Steel Handle: centre distance 784mm, overall length 800mm, grip section 32 × 16mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=784mm |
|---|---|
| Overall length | 800mm |
| Grip section | 32 × 16mm |
| Projection | 57mm |
| Weight | 2kg |
| Fixing screw | M6 |
| Fixing hole | φ8mm |
| Fixing hole (glass door) | φ12mm |
Matching range
This lever belongs to the same design family as the pull handles below.
