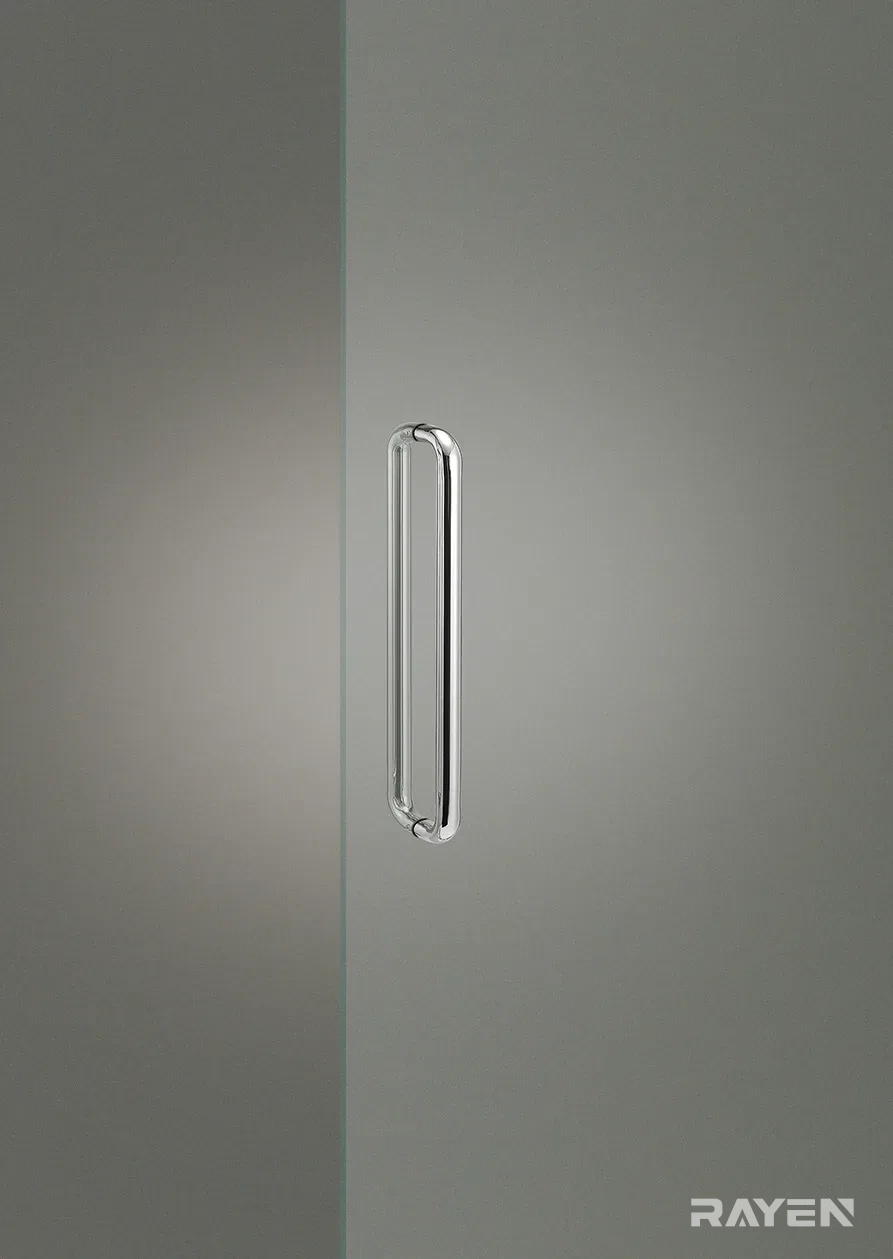

G500 Glass Door Handle
RAYEN G500 Glass Door Handle: centre distance 425mm, overall length 452mm, grip section 27mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes

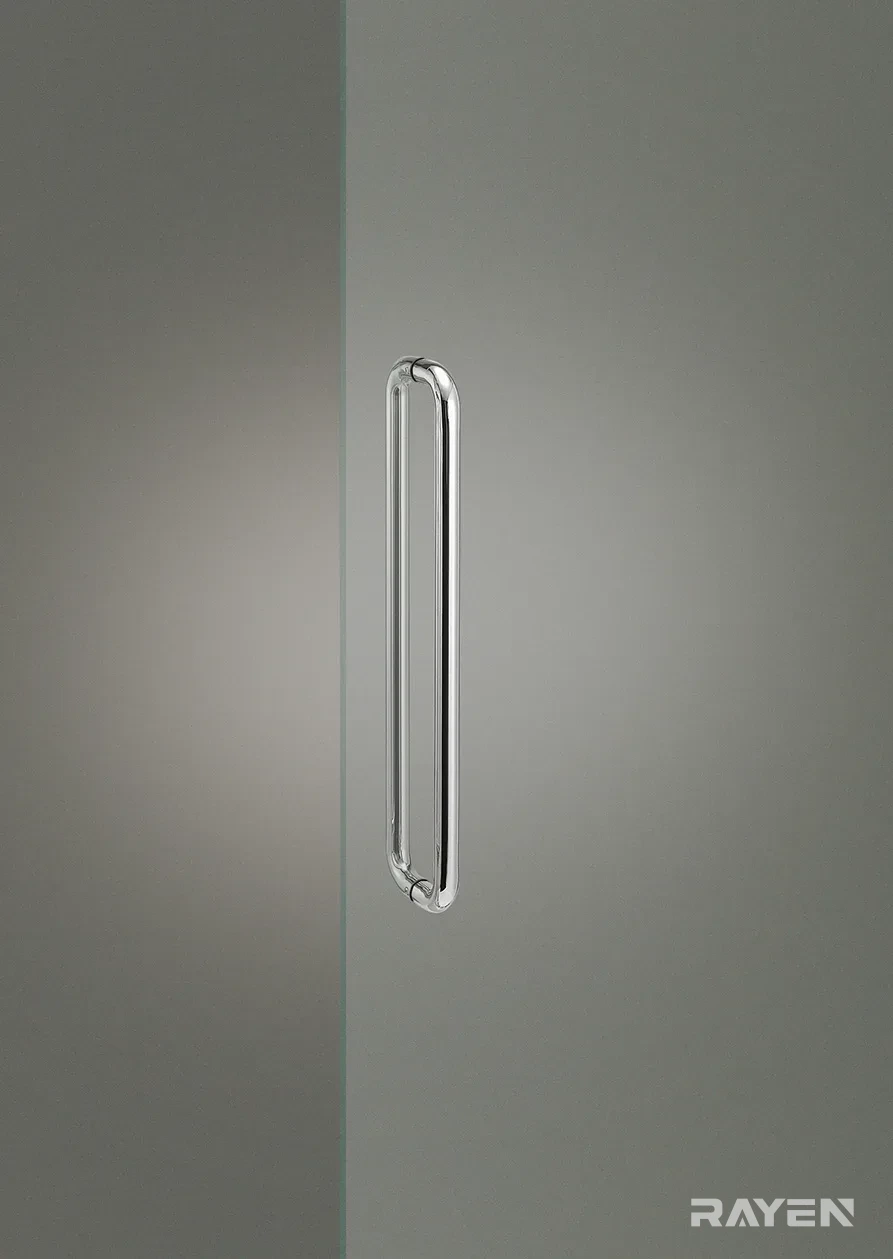

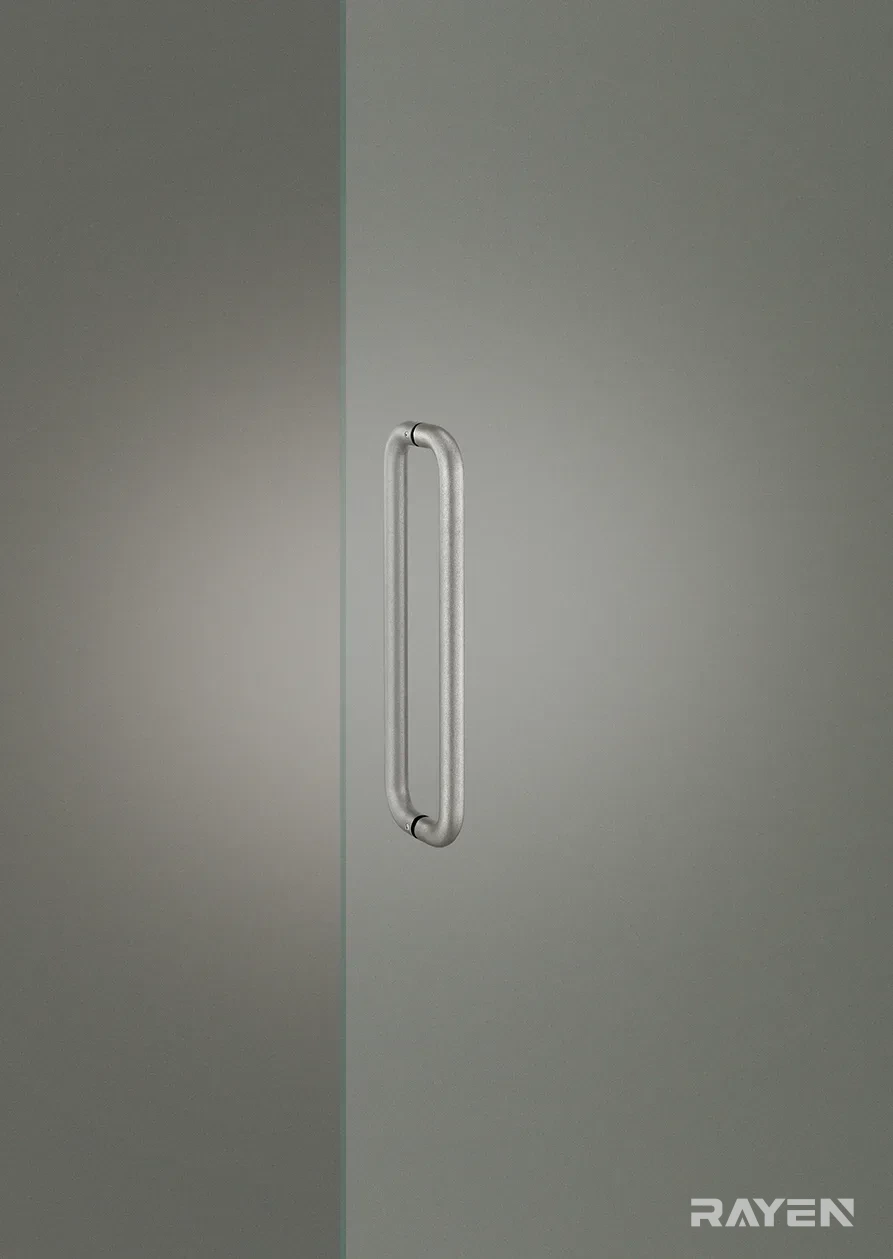

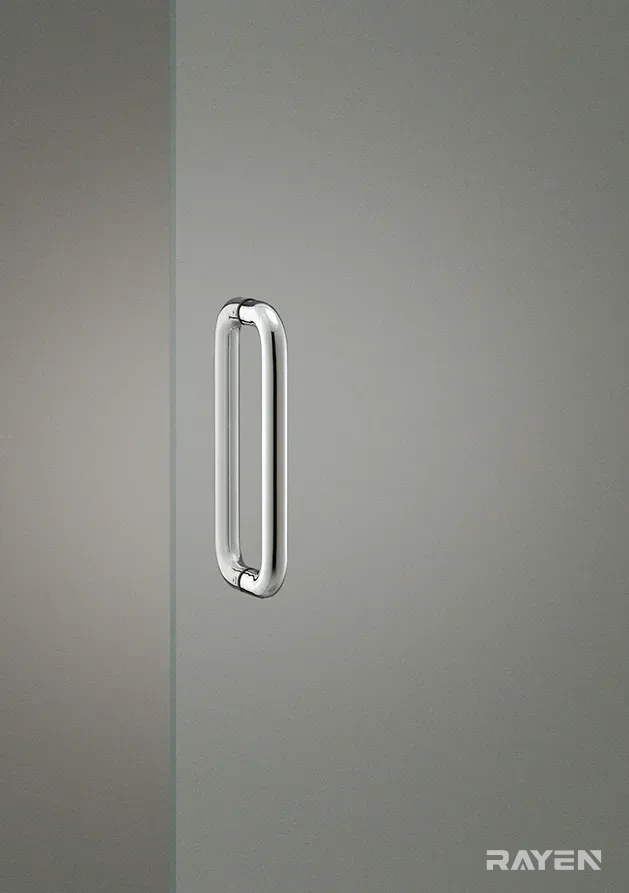

- Satin stainless

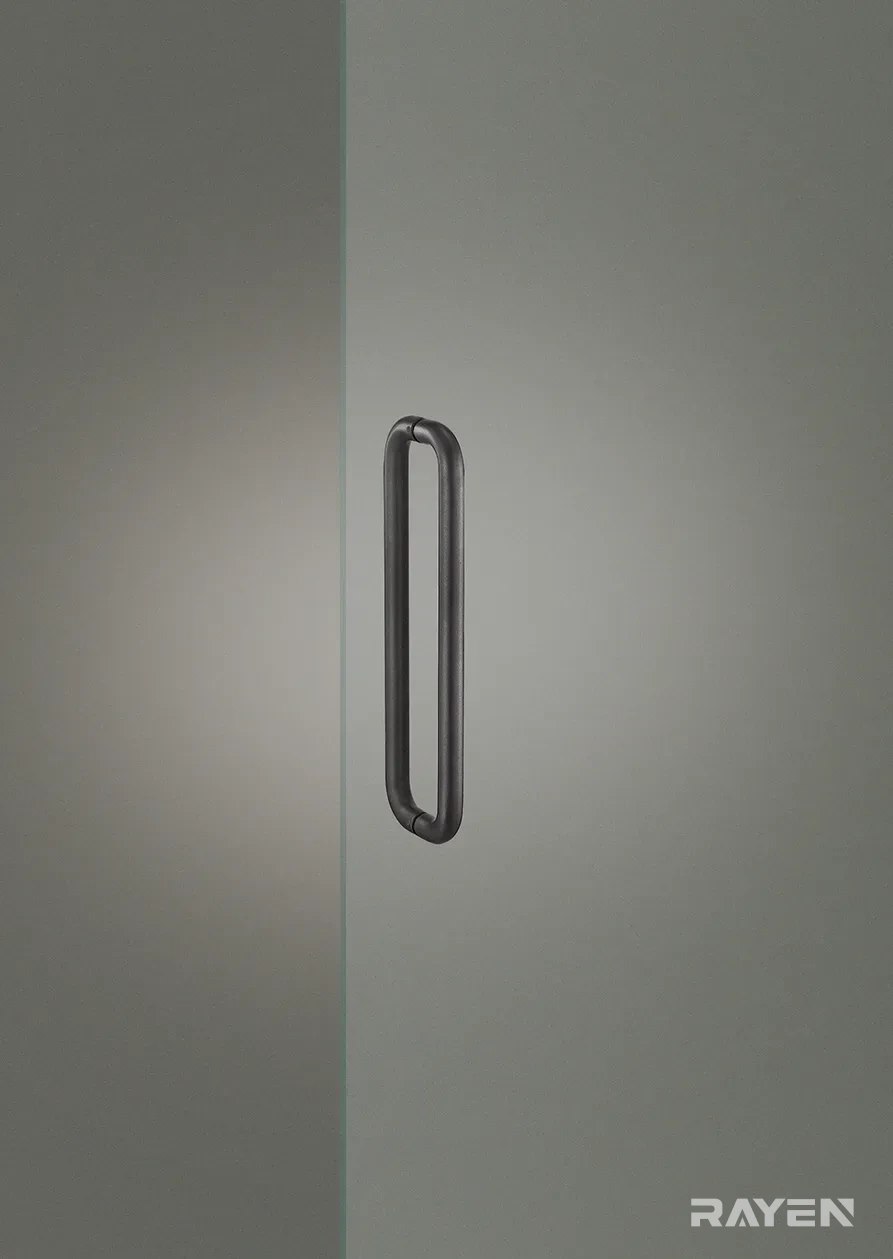

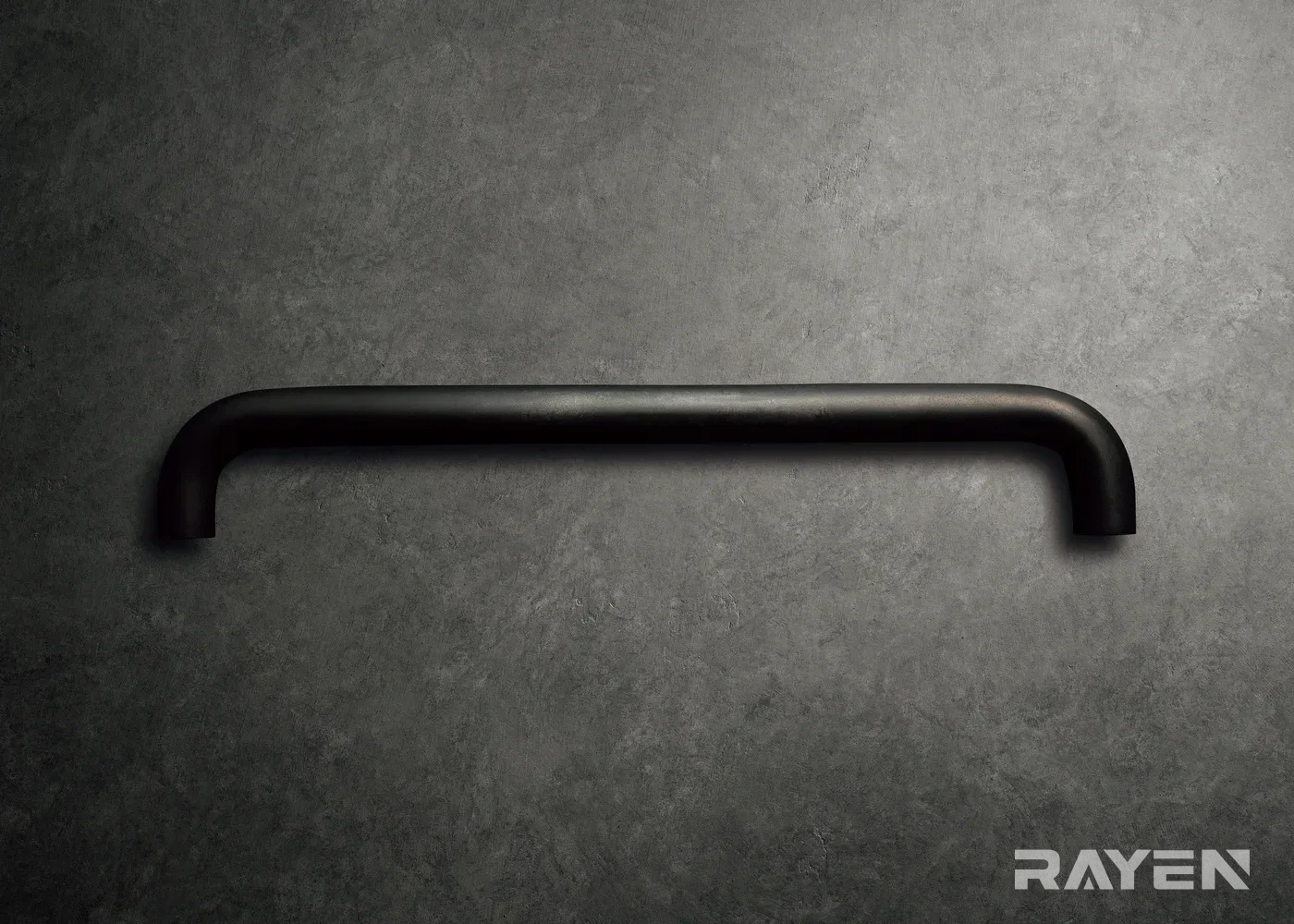

- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 452mm |
| Grip section | 27mm |
| Projection | 70mm |
| Weight | 1kg |
| Available lengths | 300–600mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
