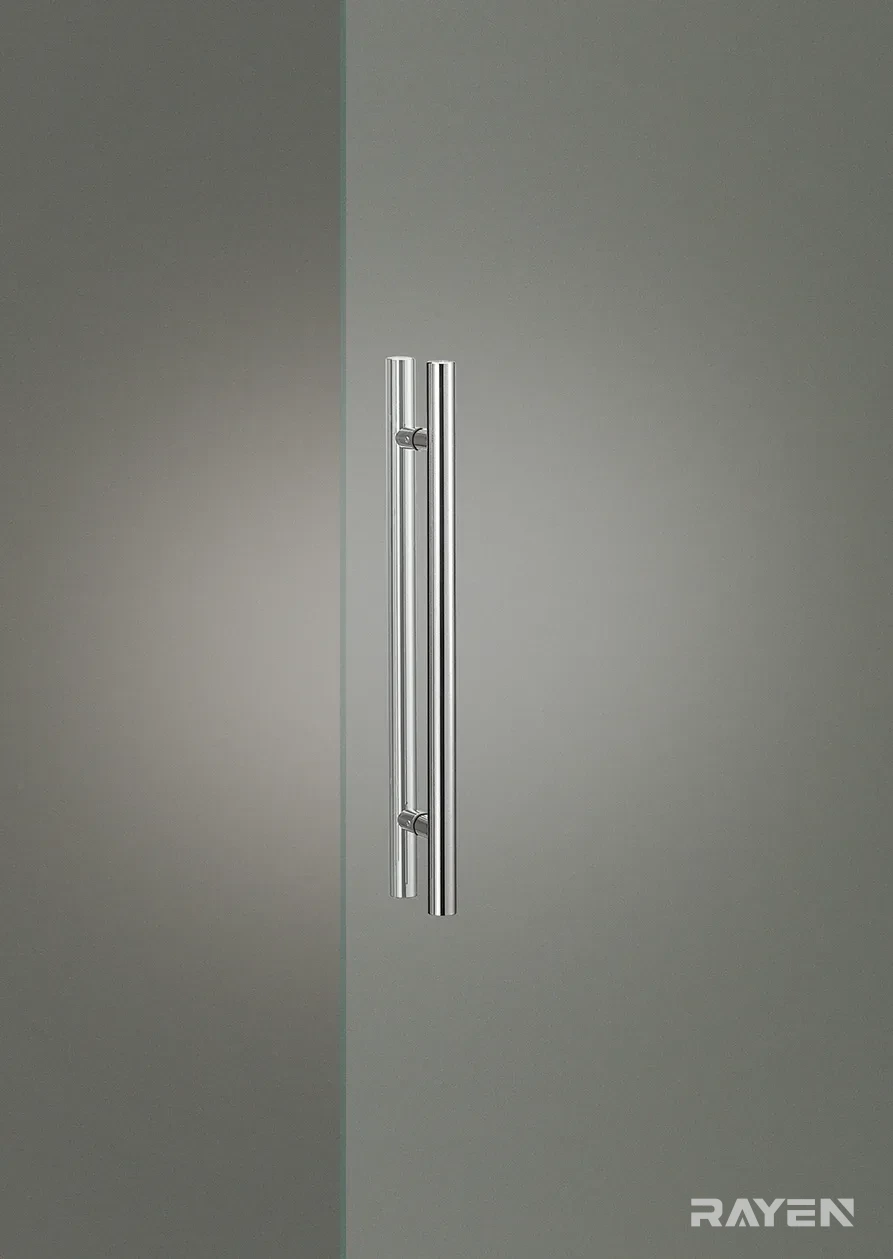

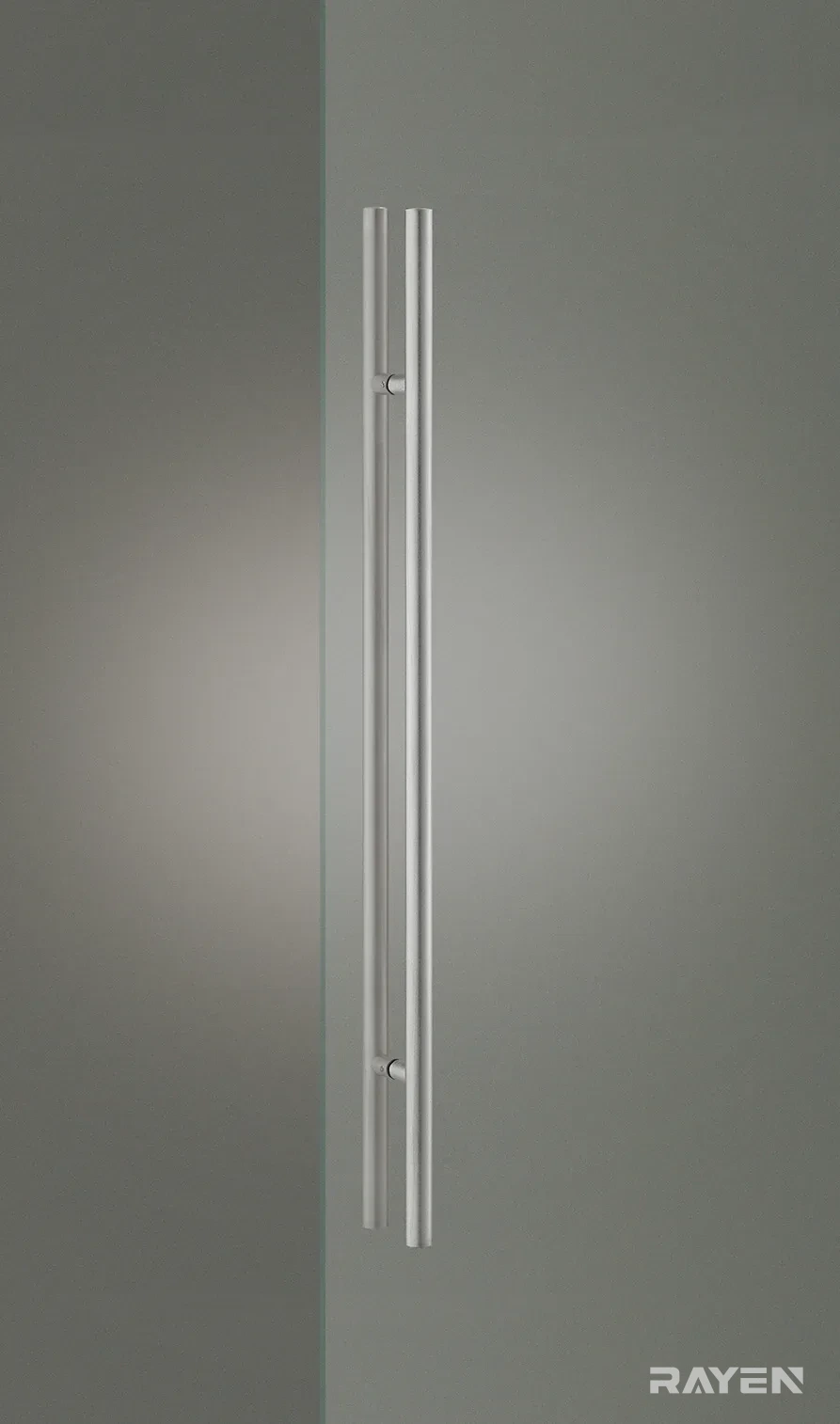

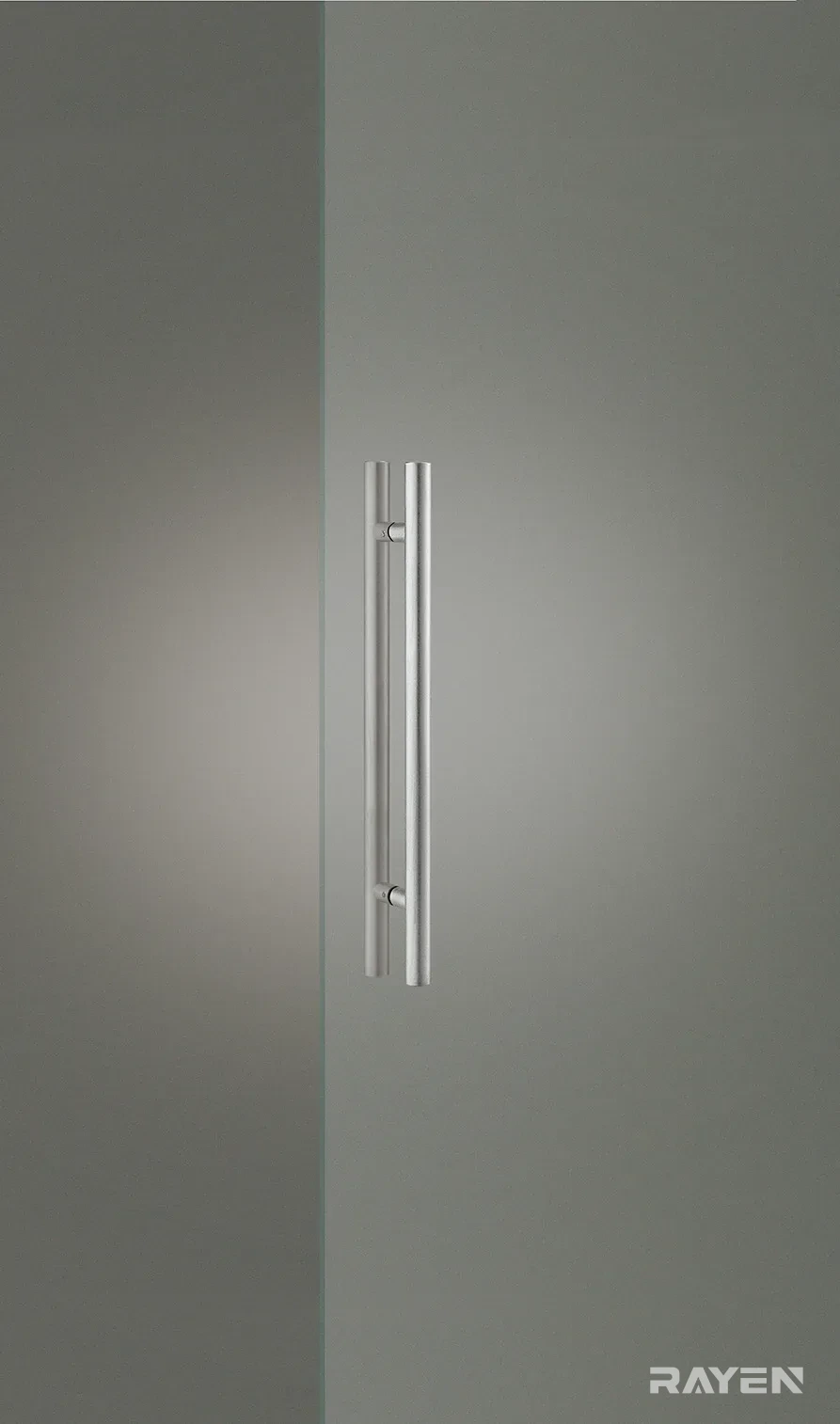

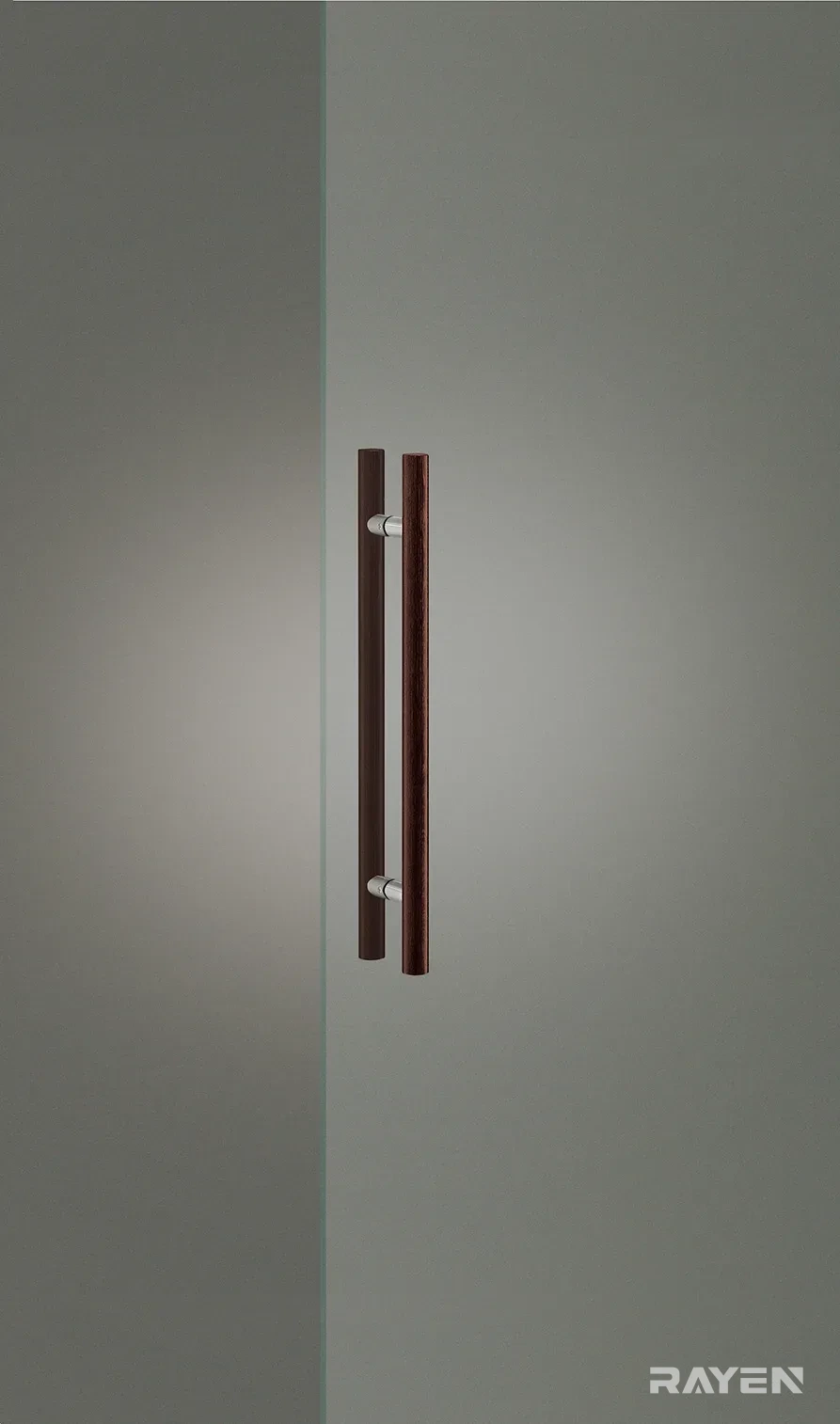

G52 Glass Door Handle
RAYEN G52 Glass Door Handle: centre distance 425mm (L600)/P=800mm (L1200), overall length 600mm/1200mm, grip section 25mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes

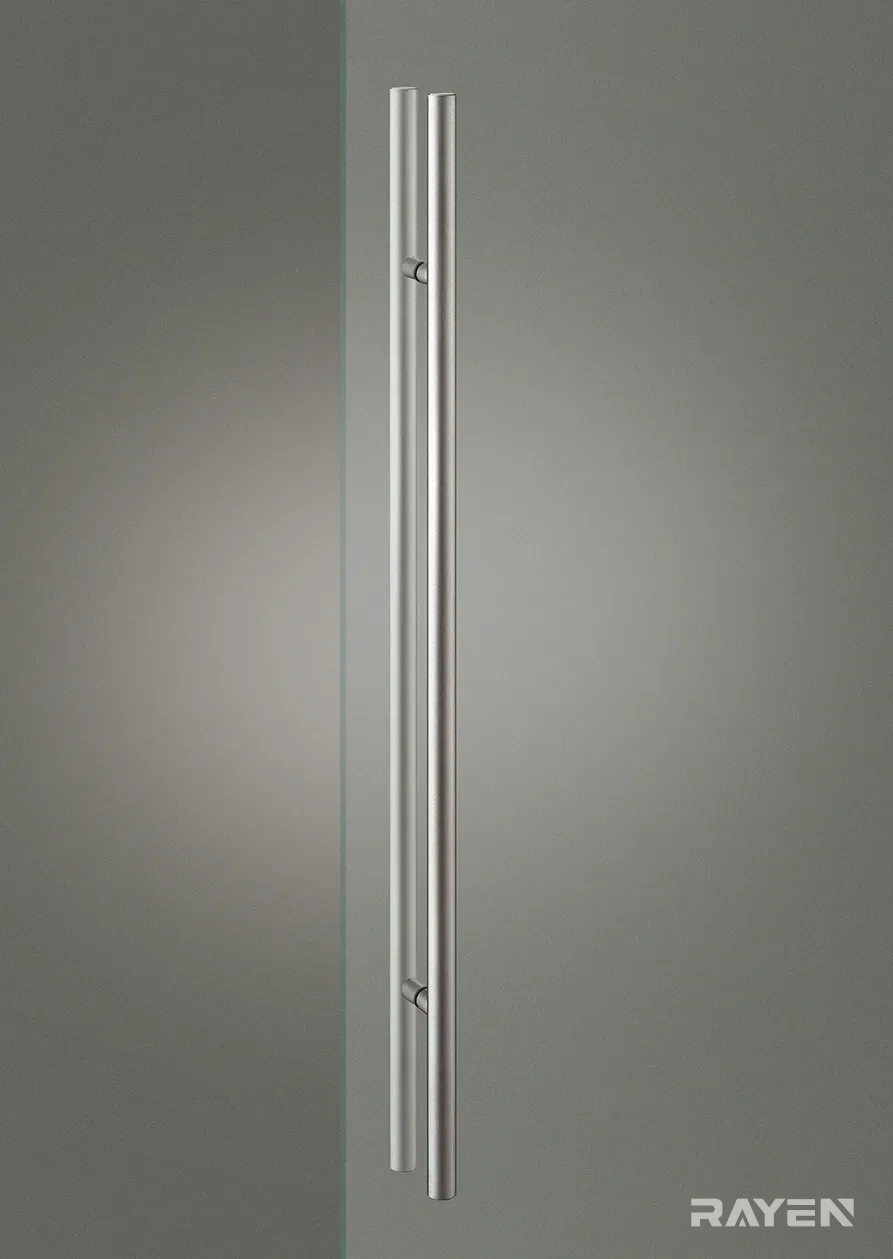

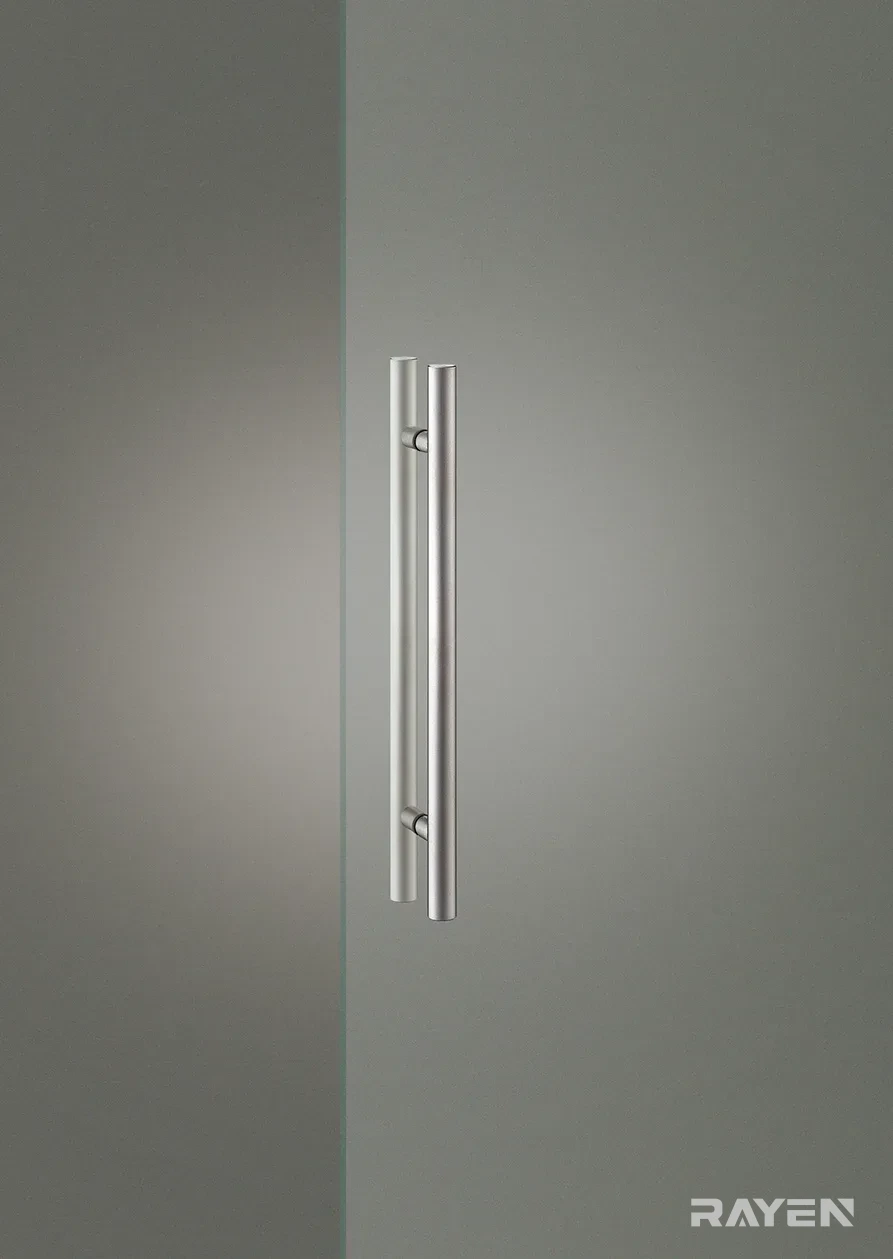

- Satin stainless

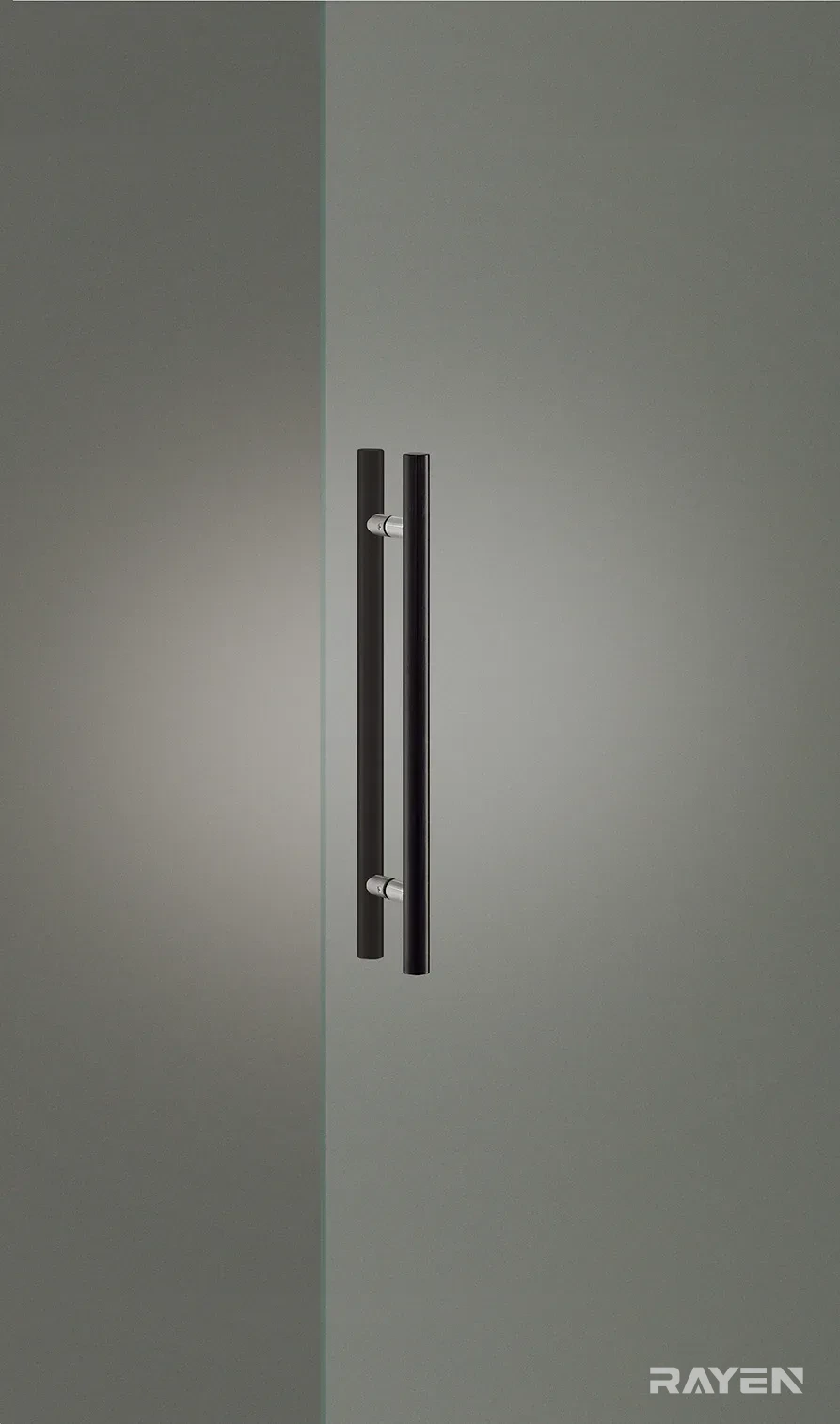

- Matt black
Specification
| Centre distance | P=425mm (L600) / P=800mm (L1200) |
|---|---|
| Overall length | 600mm / 1200mm |
| Grip section | 25mm |
| Projection | 64mm |
| Weight | 2.6kg |
| Available lengths | 600–1200mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
