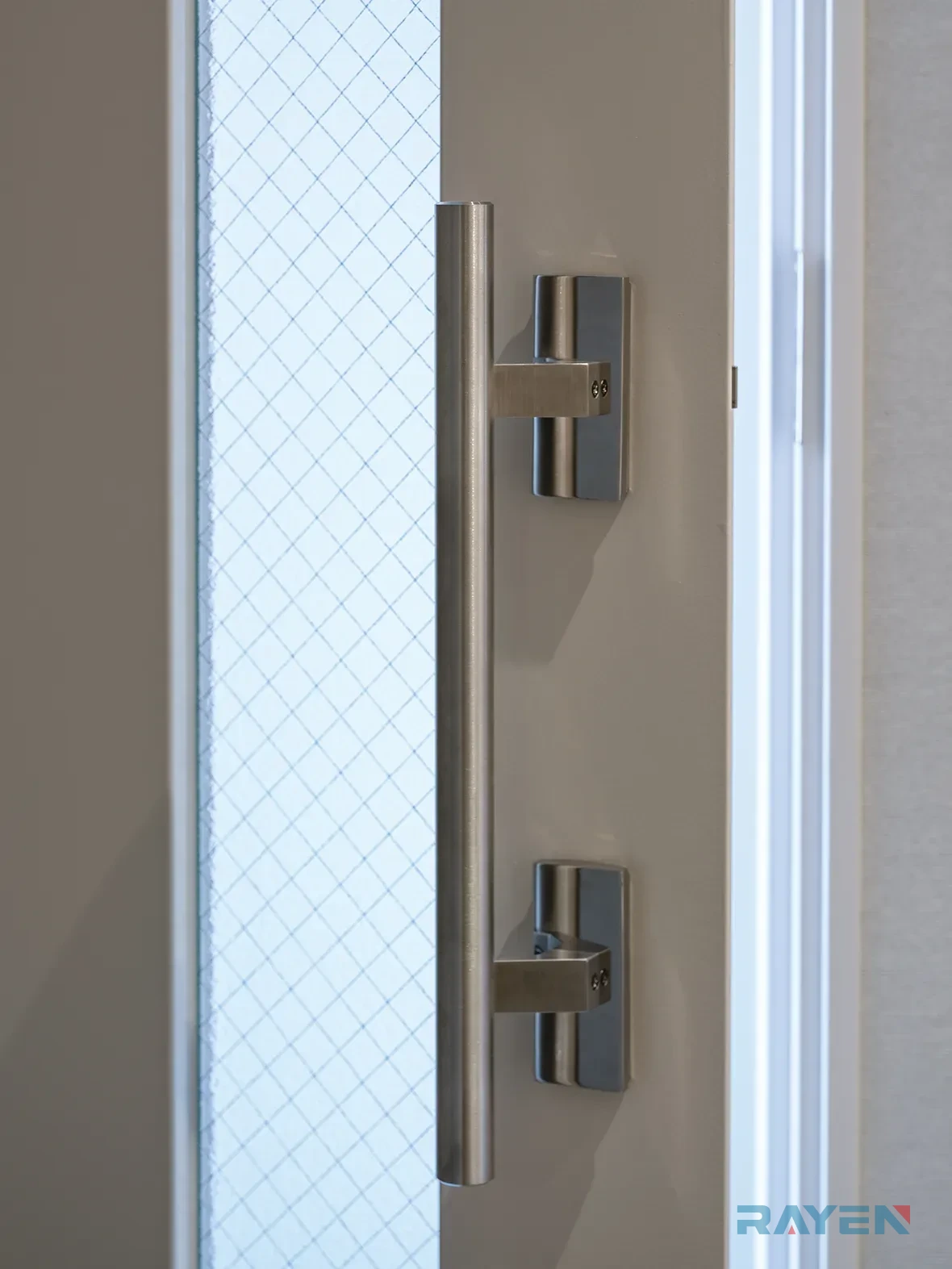

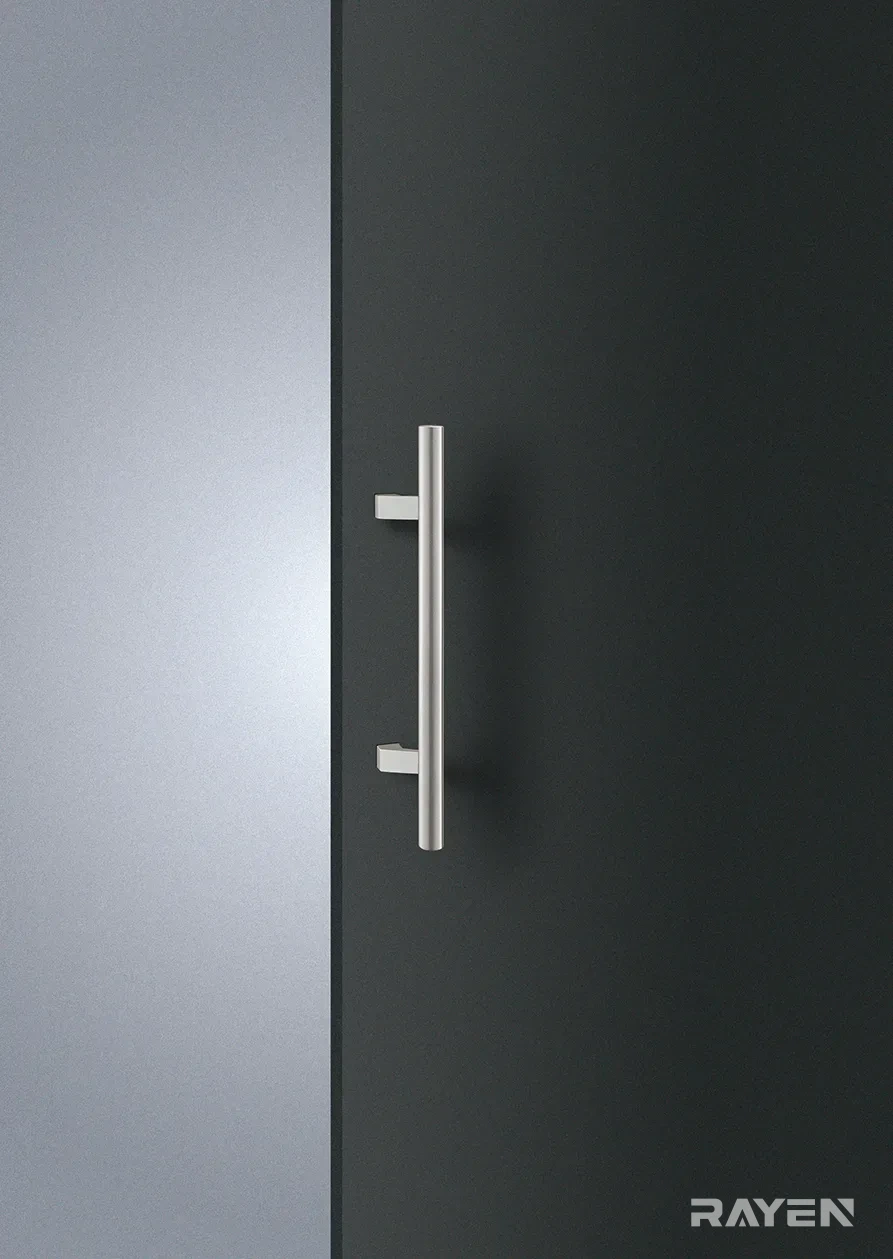

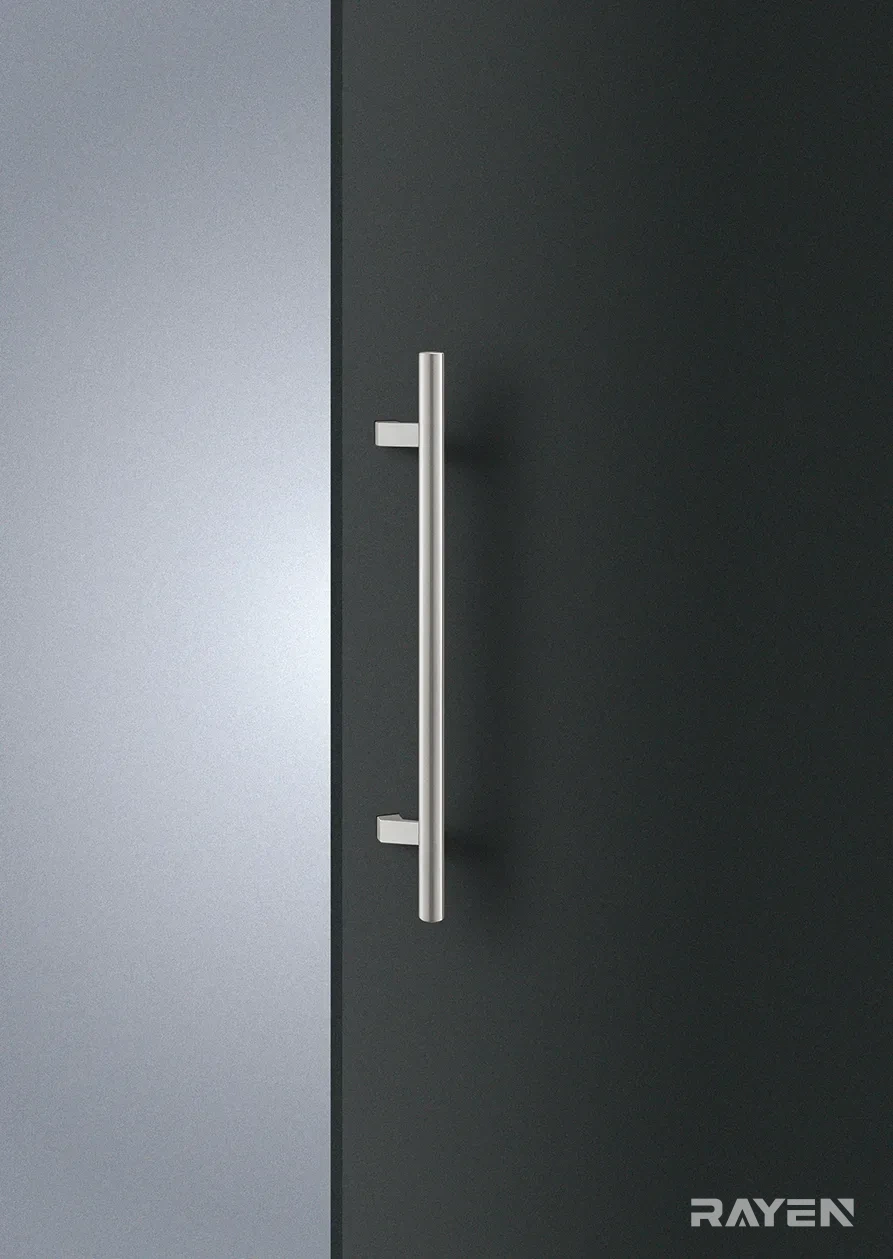

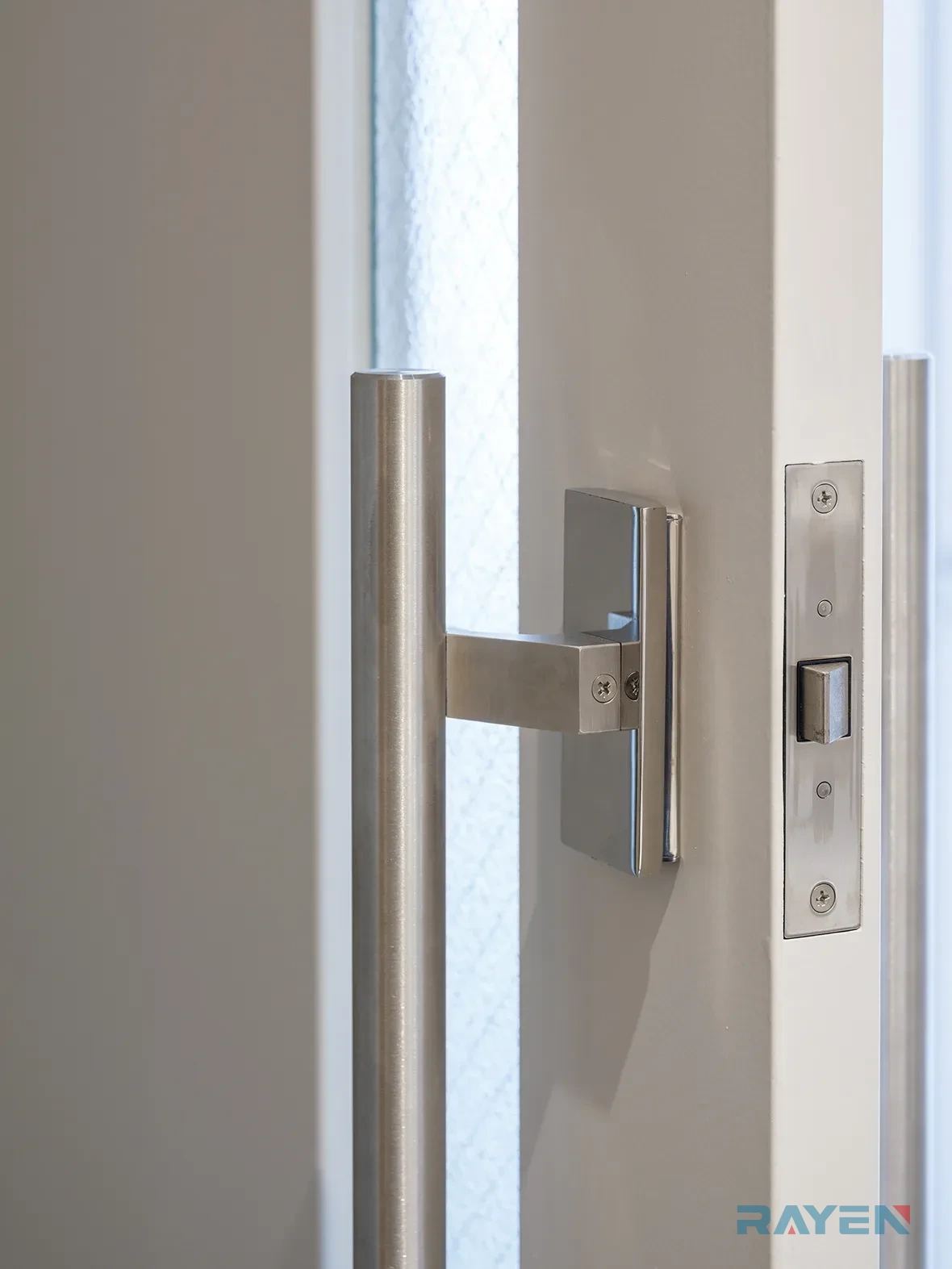

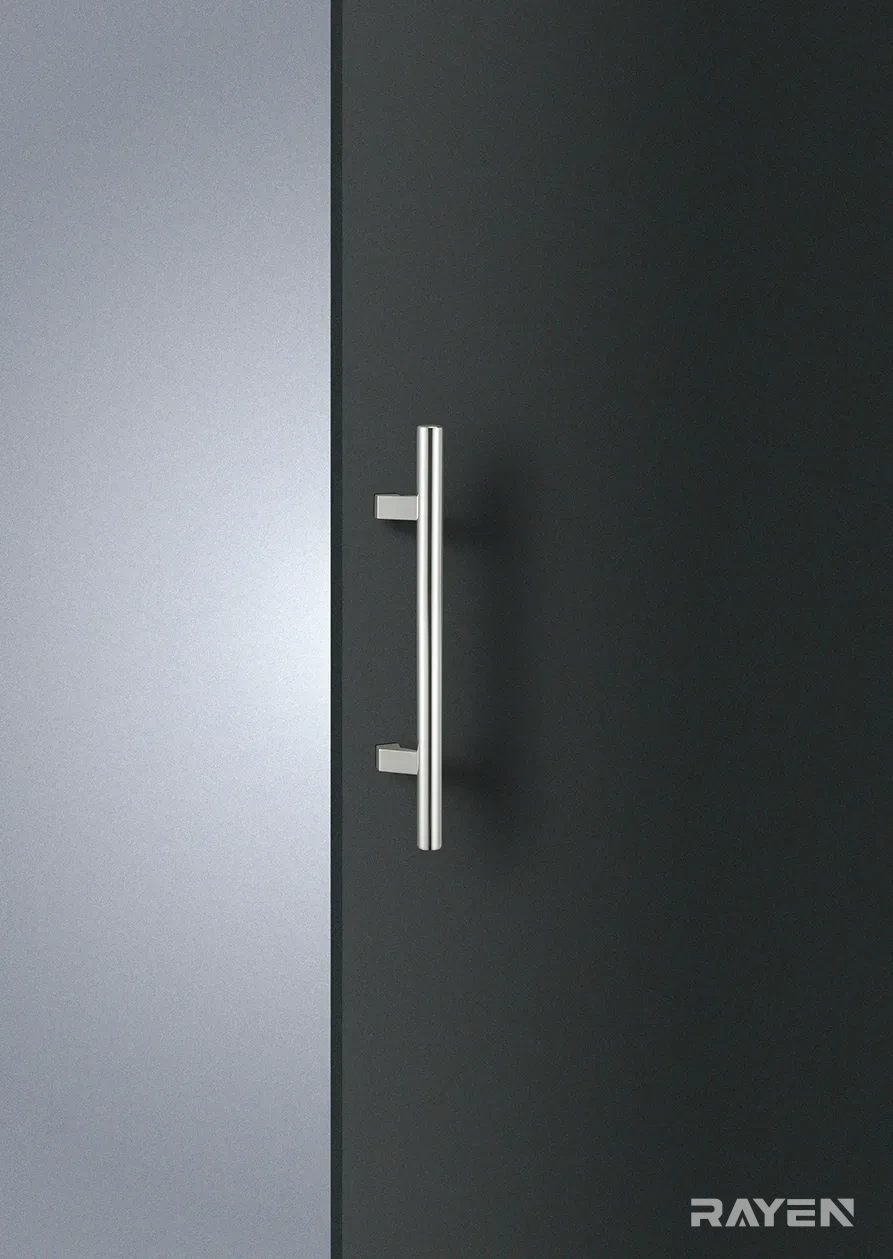

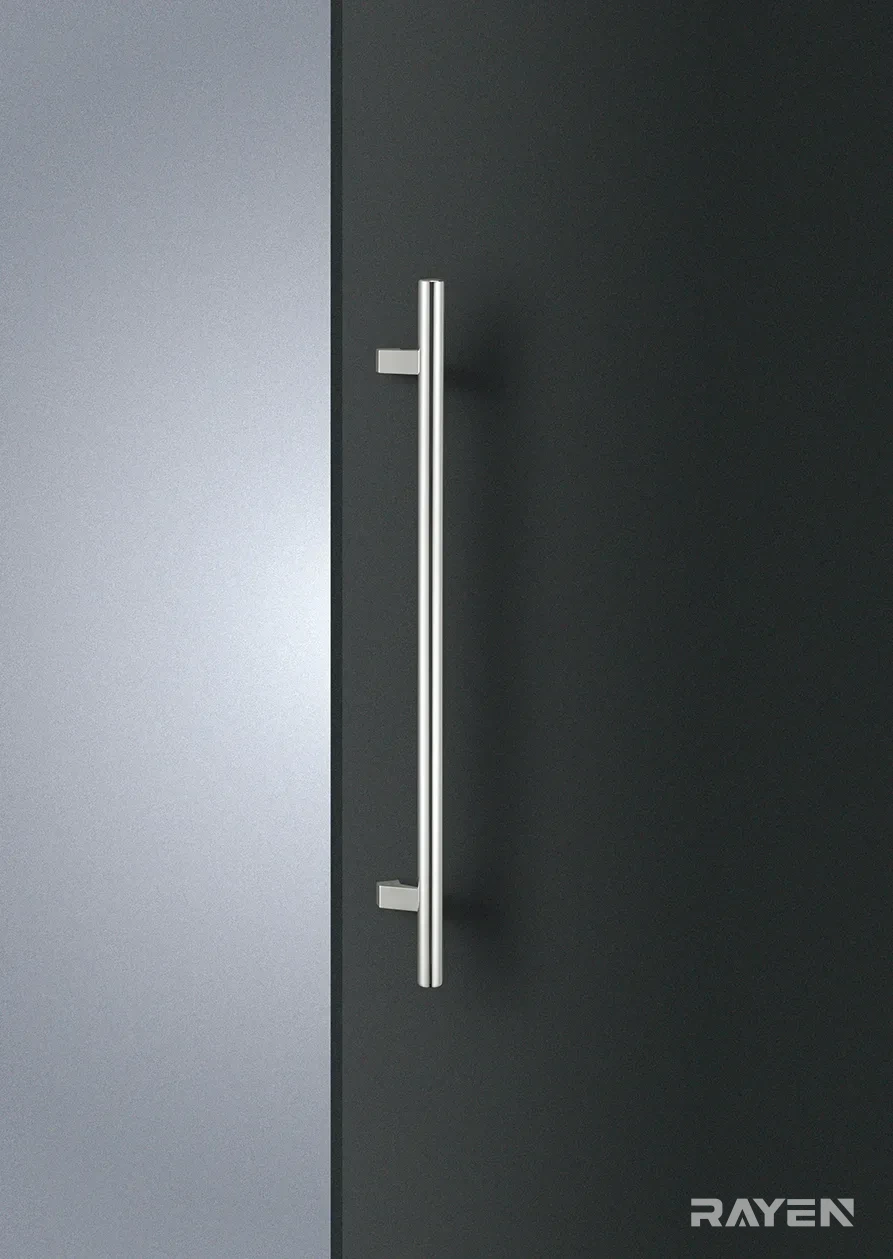

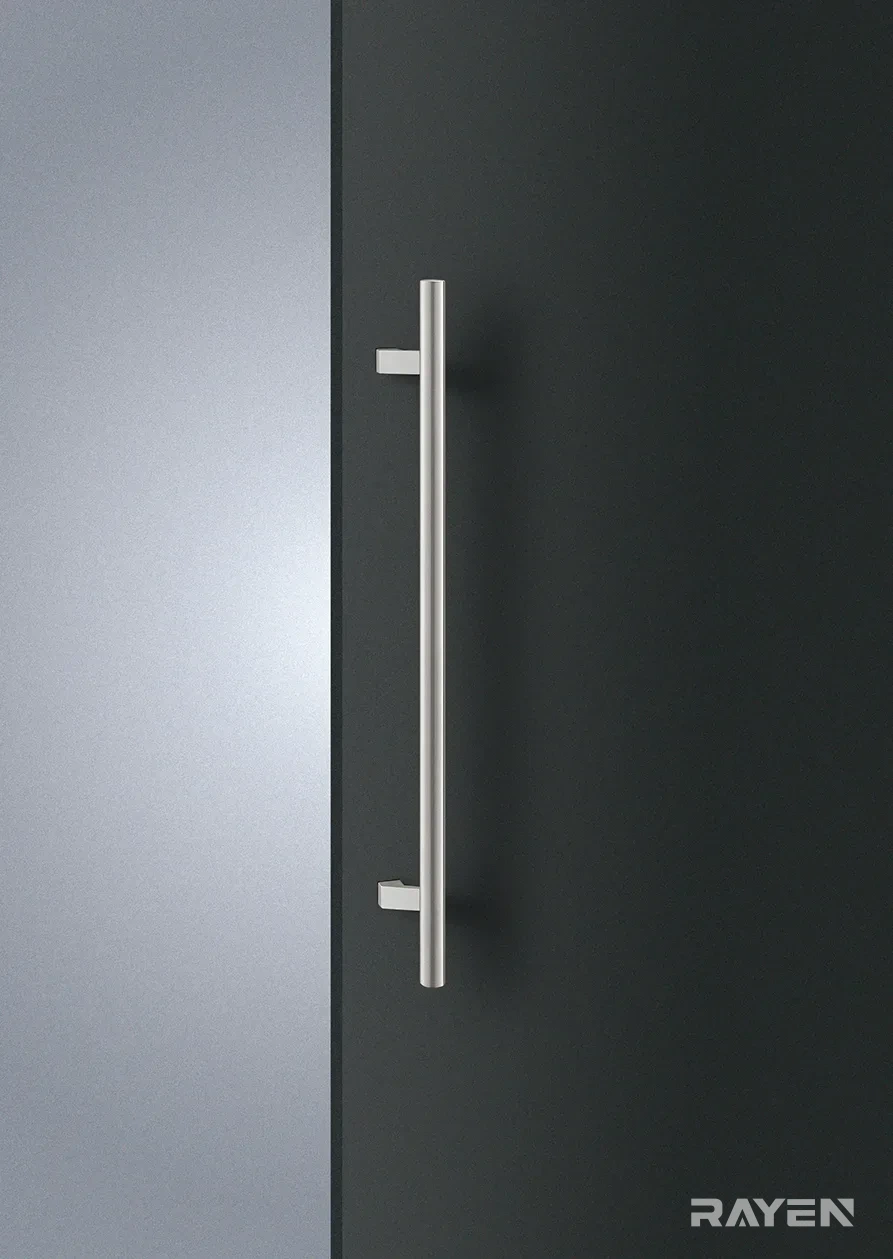

T1170 Stainless Steel Handle
RAYEN T1170 Stainless Steel Handle: overall length 450mm/600mm/750mm, grip section Ø27mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes

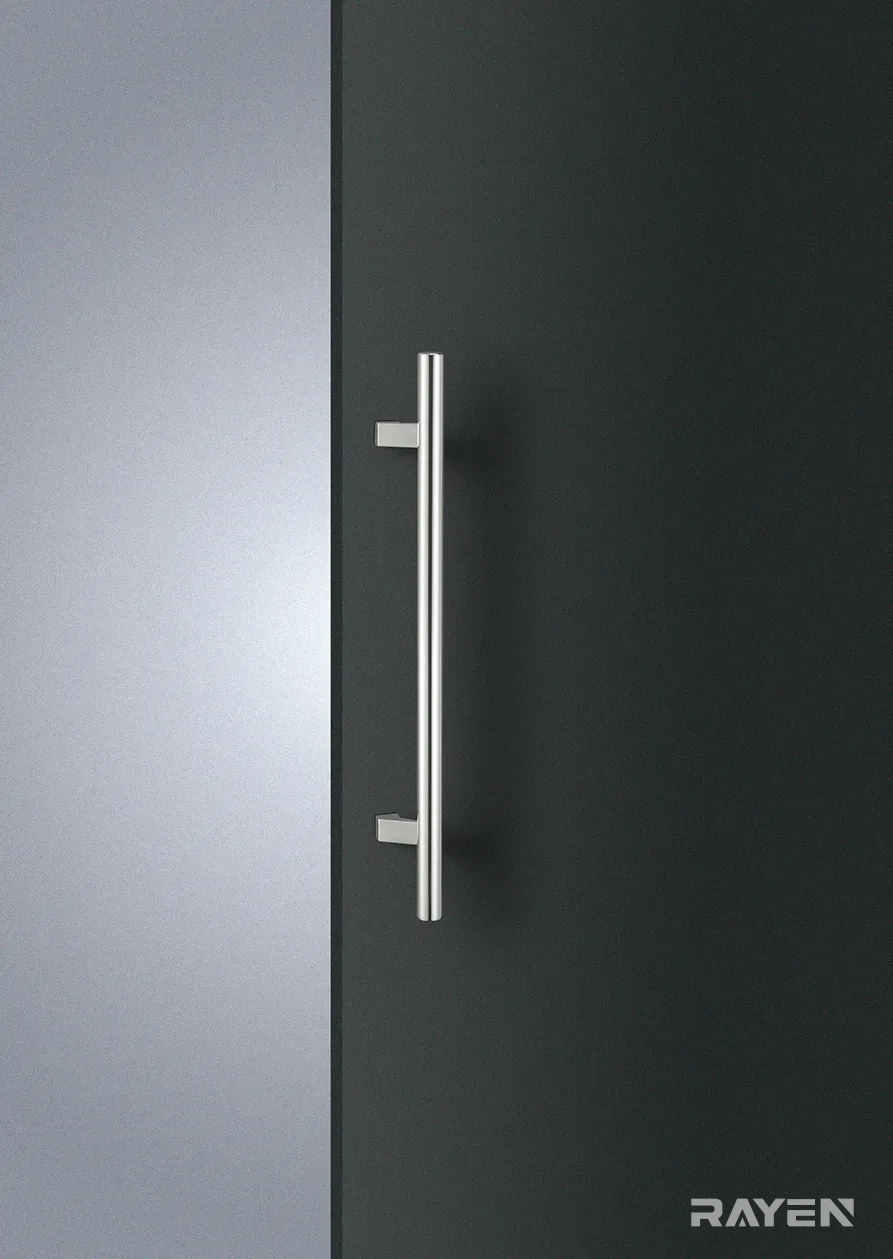

- Satin stainless

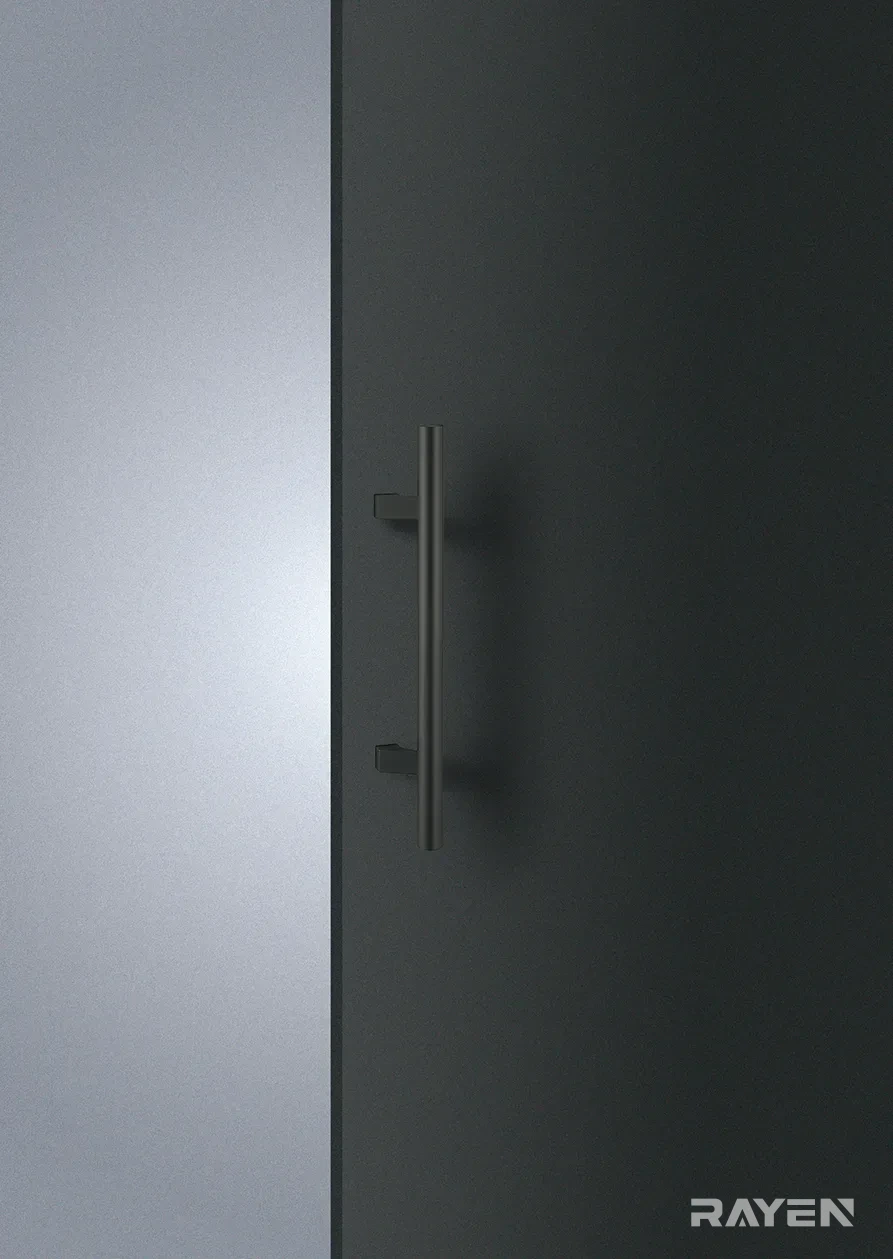

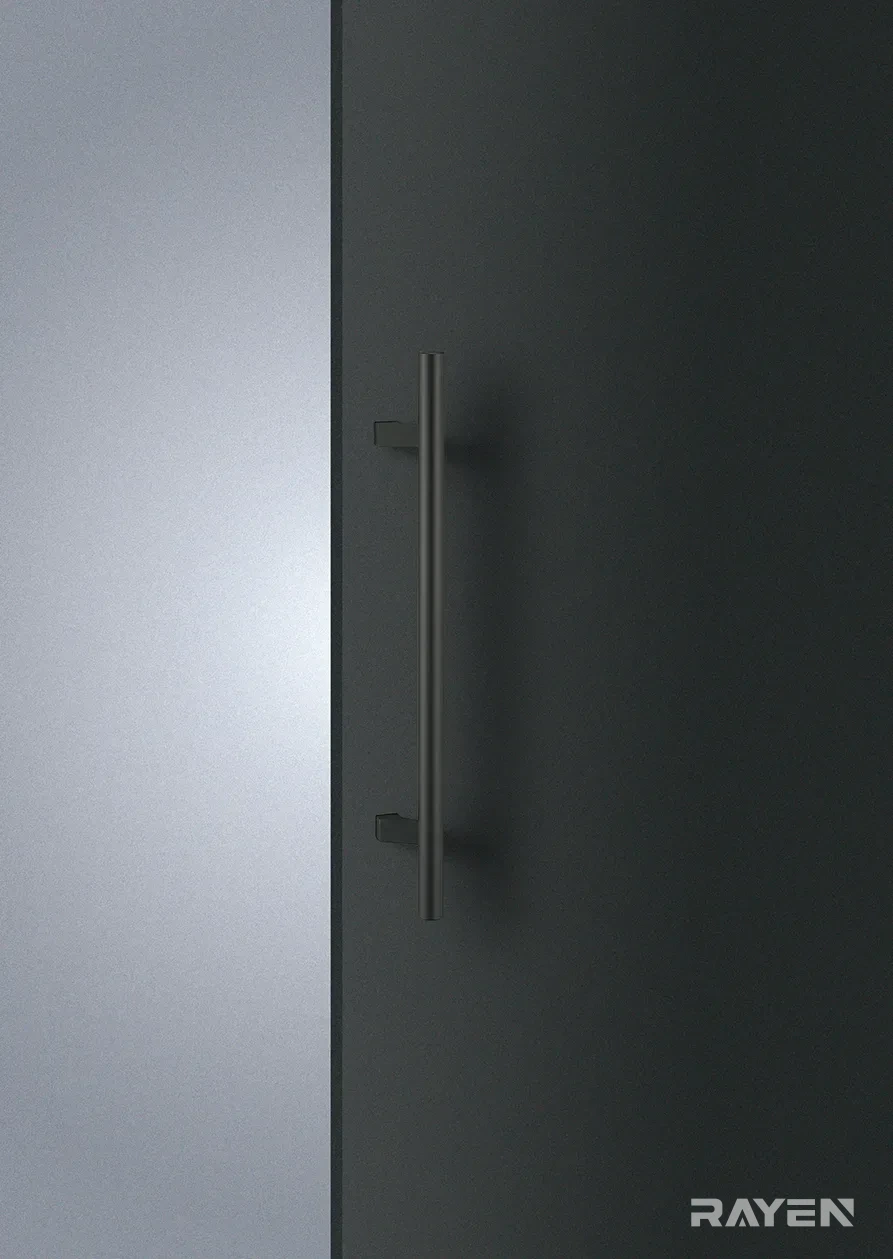

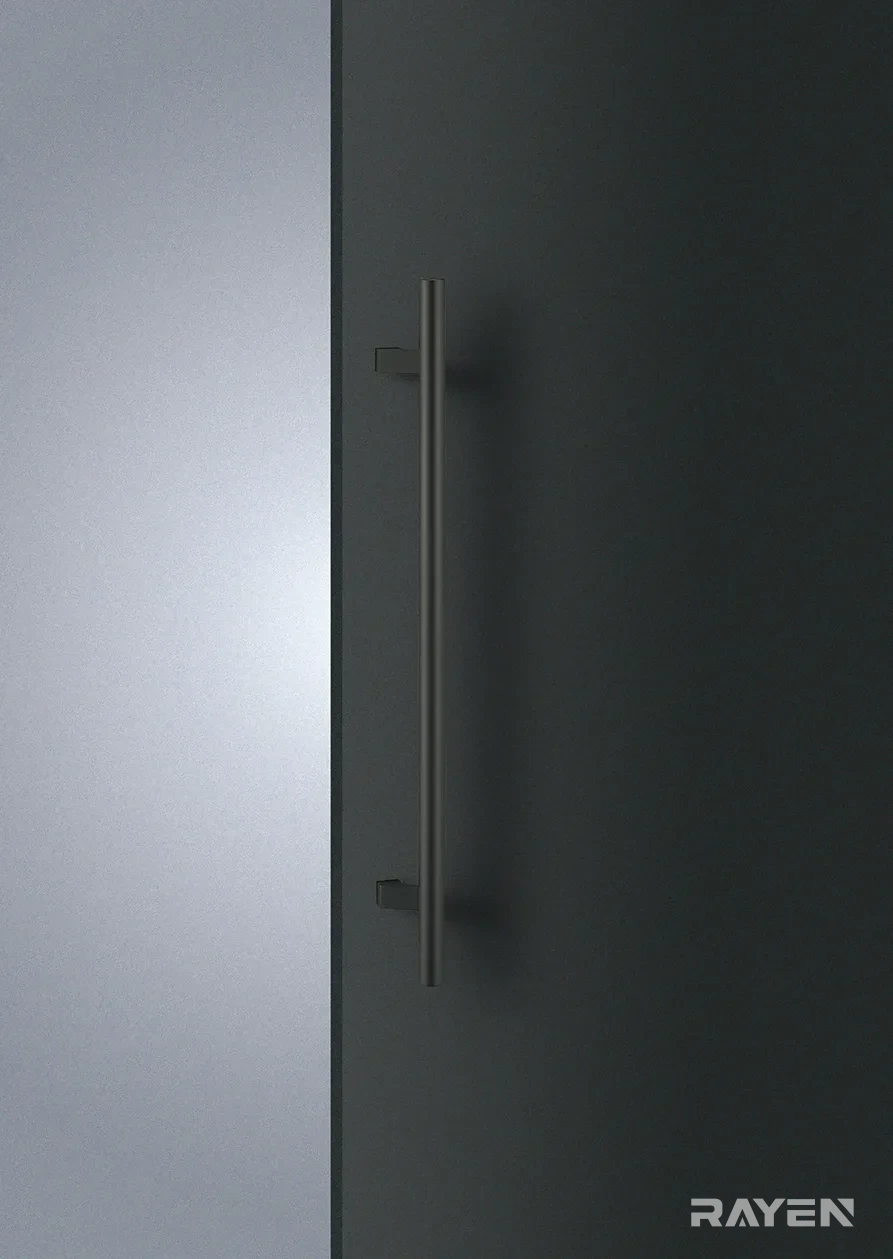

- Matt black
Specification
| Centre distance | P=275mm (L450) / P=425mm (L600) / P=575mm (L750) |
|---|---|
| Overall length | 450mm / 600mm / 750mm |
| Grip section | Ø27mm |
| Projection | 60.4mm |
| Available lengths | 450–750mm |
| Fixing screw | M6 |
| Fixing hole | φ8mm |
| Fixing hole (glass door) | φ12mm |
Matching range
This lever belongs to the same design family as the pull handles below.
