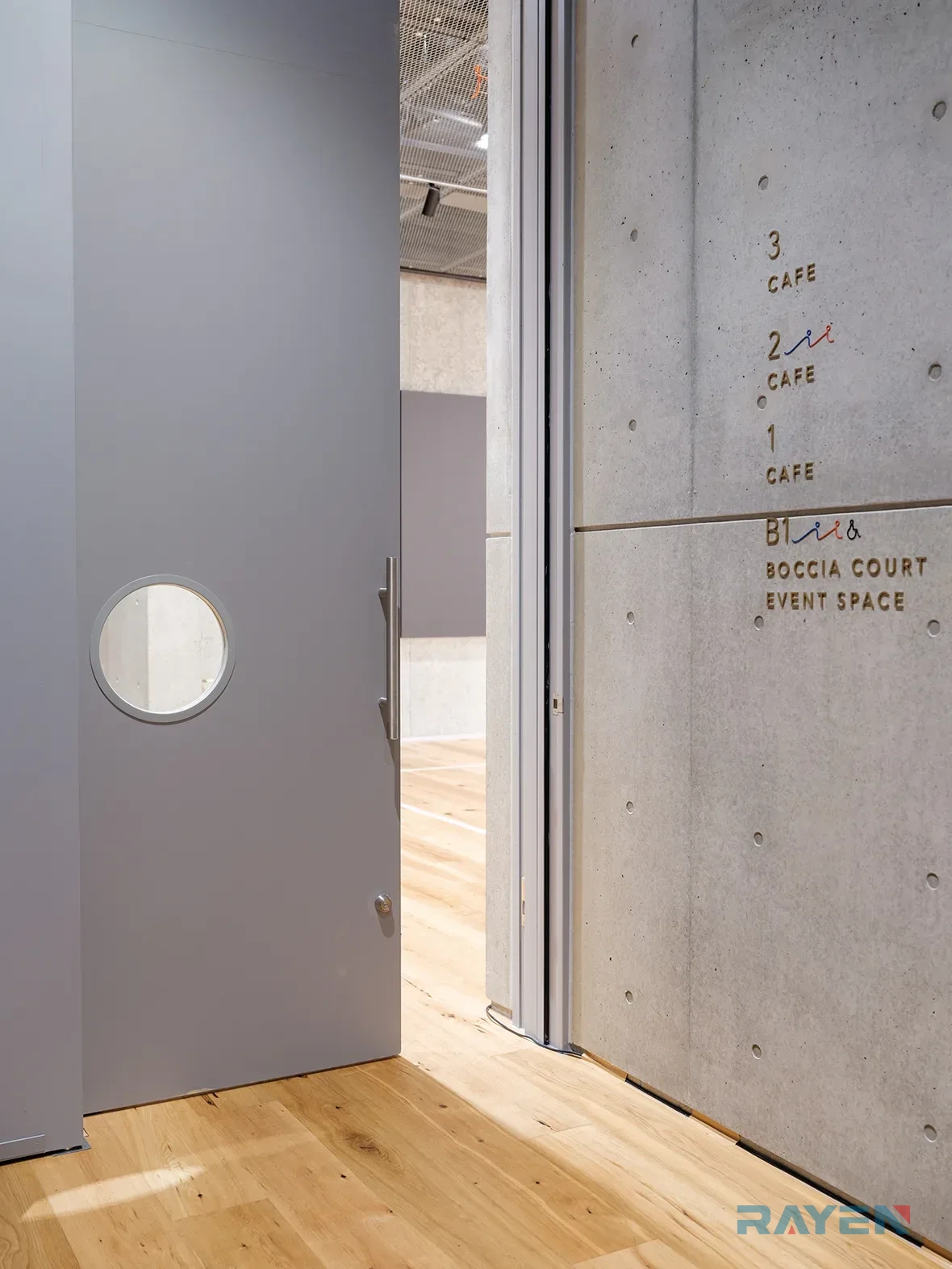

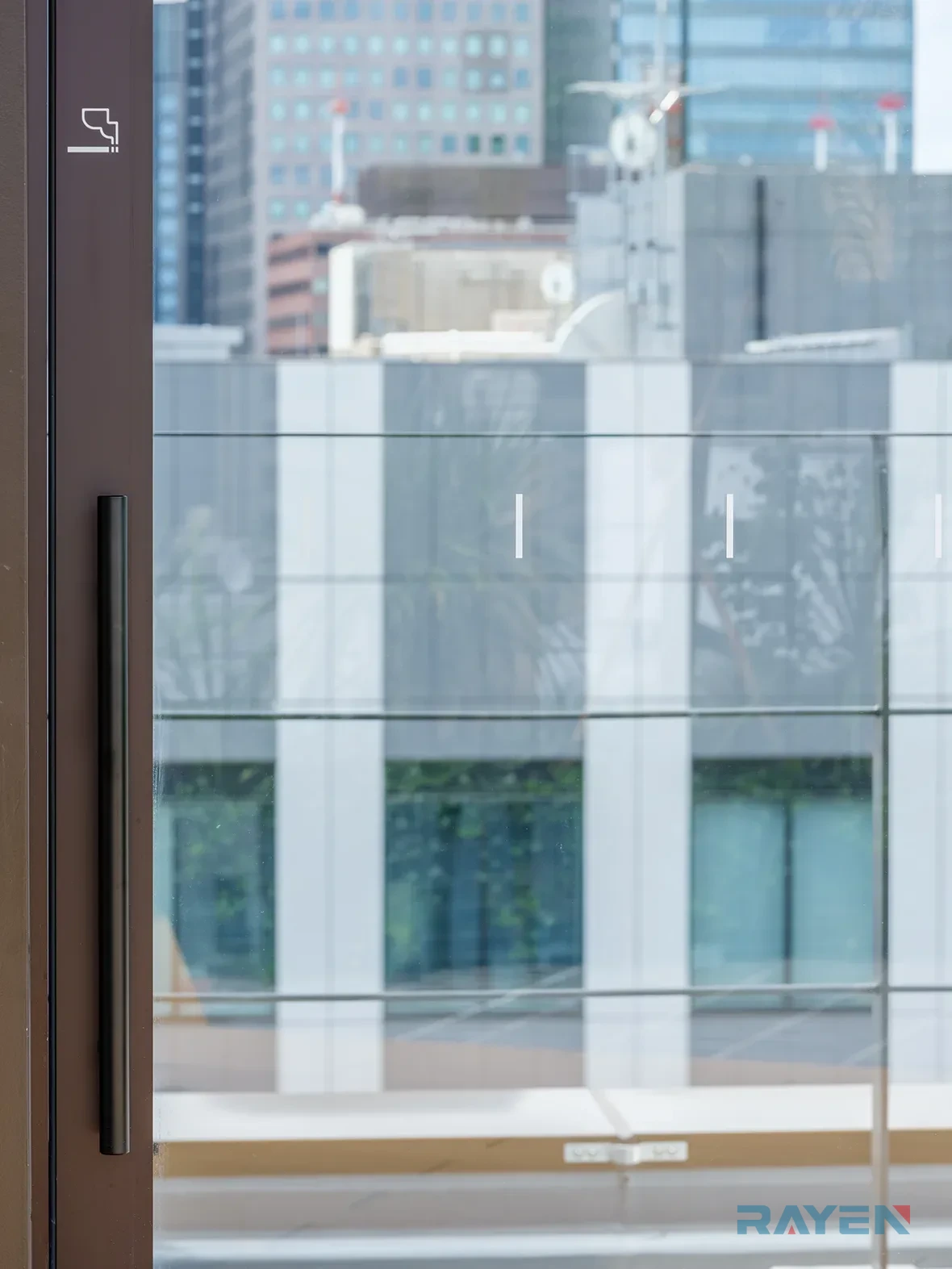

G1170 Glass Door Handle
RAYEN G1170 Glass Door Handle: centre distance 275mm (L450)/P=425mm (L600), overall length 450mm/600mm, grip section Ø27mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.

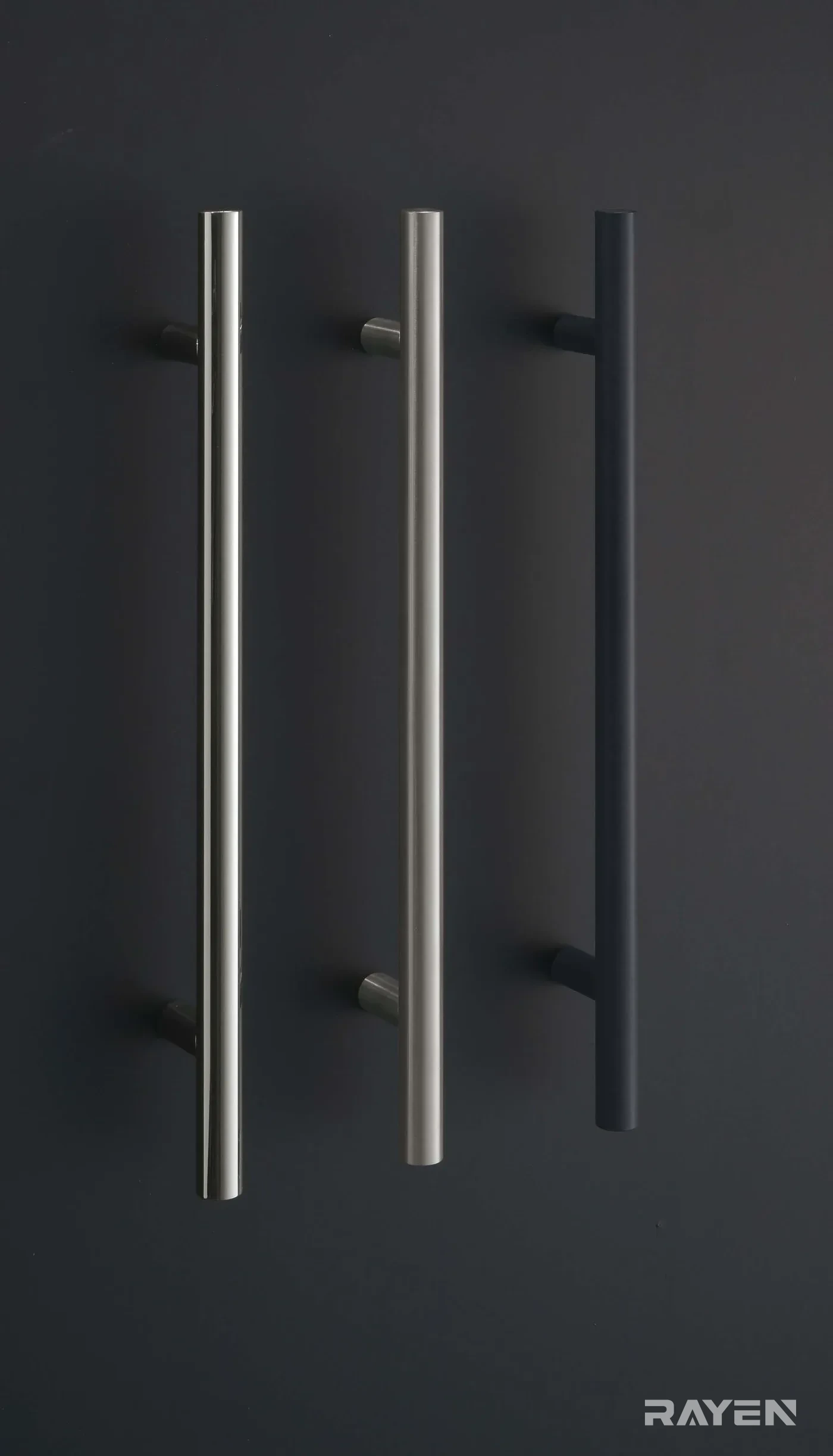

Available finishes

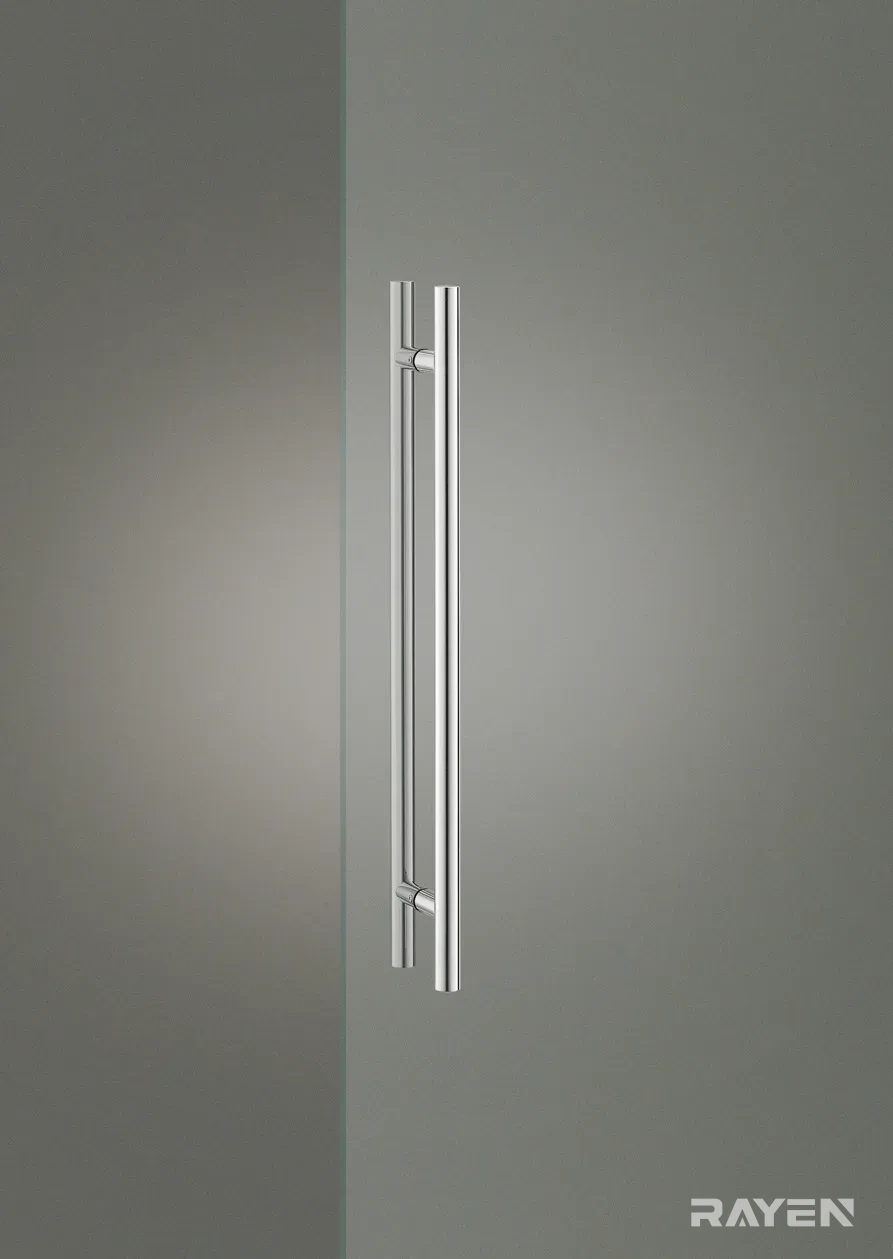

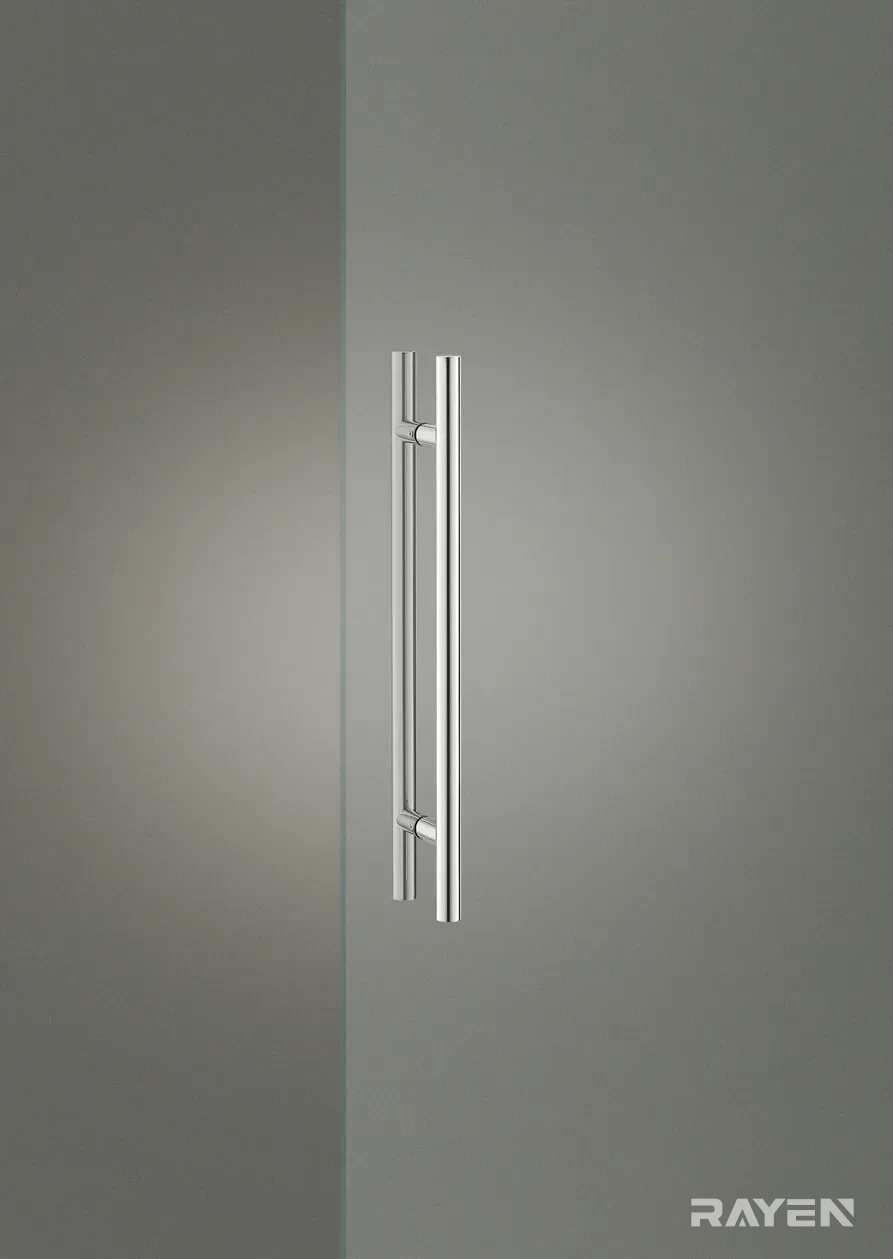

- Satin stainless

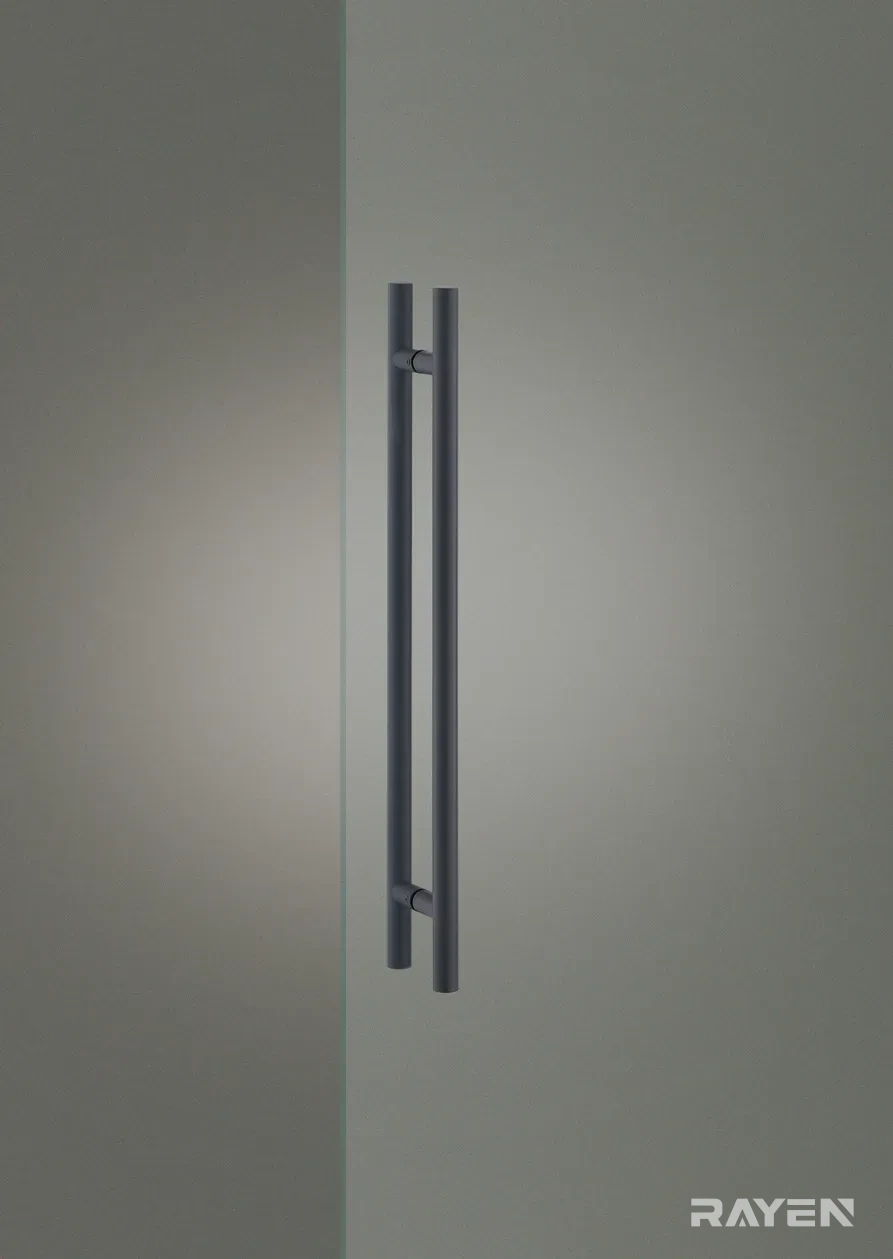

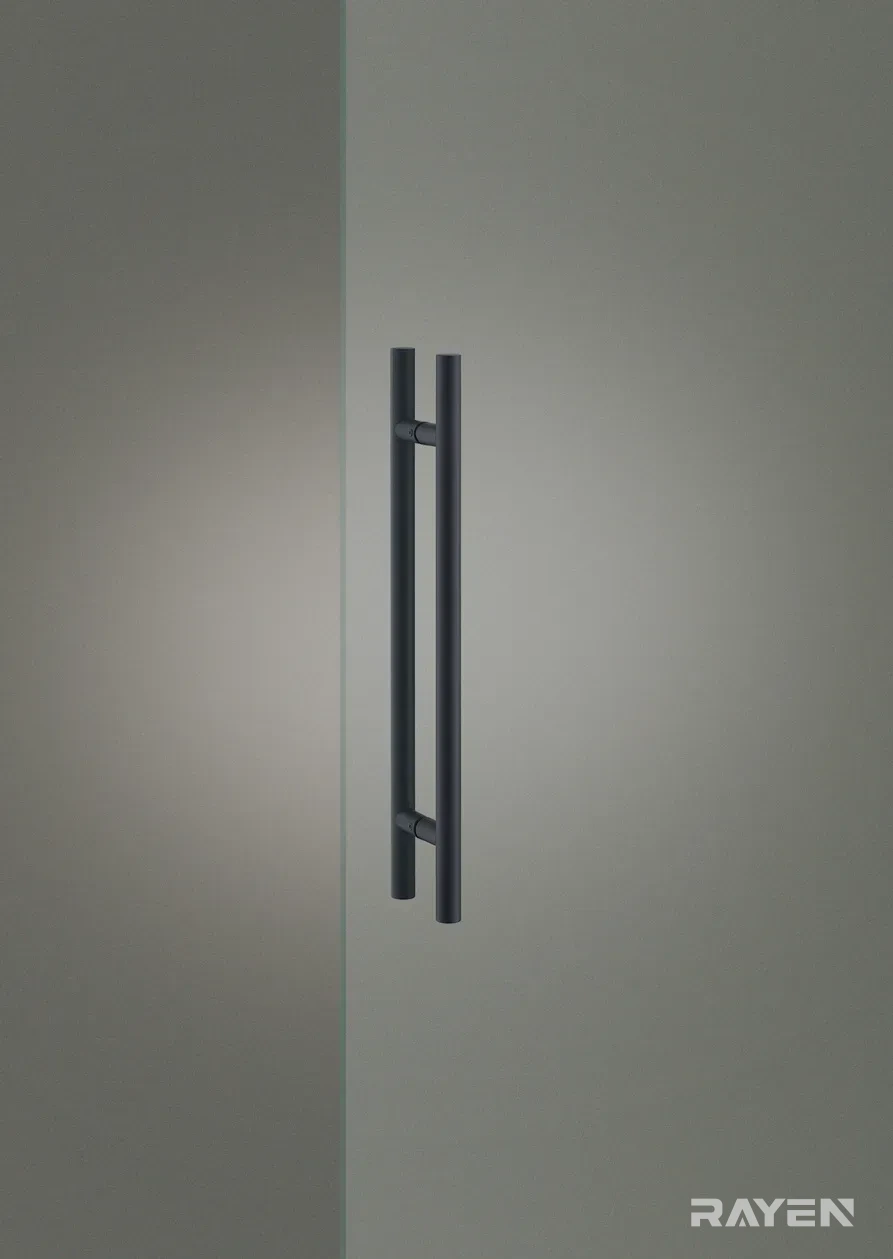

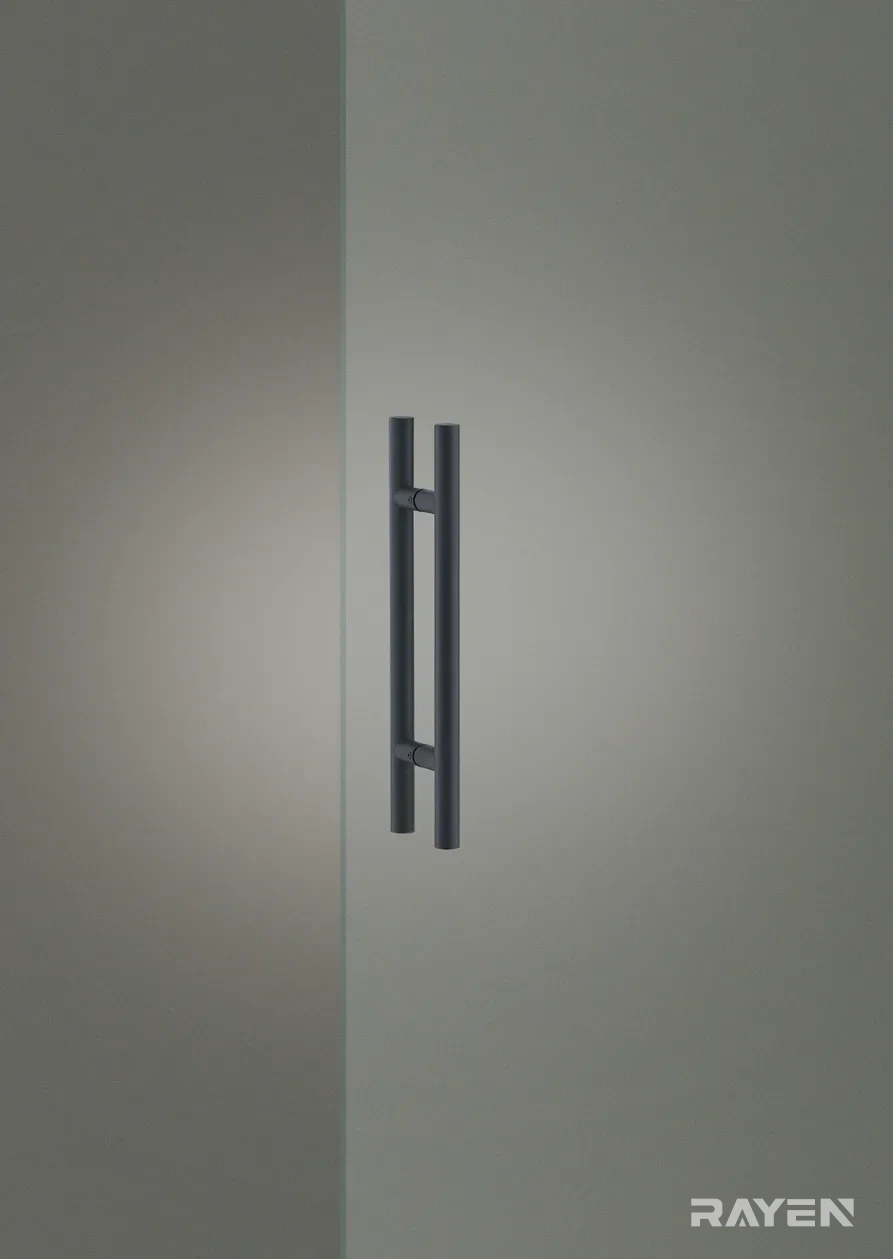

- Matt black
Specification
| Centre distance | P=275mm (L450) / P=425mm (L600) |
|---|---|
| Overall length | 450mm / 600mm |
| Grip section | Ø27mm |
| Stem diameter | Ø25mm |
| Projection | 67.2mm |
| Weight | 1.3kg |
| Available lengths | 450–750mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
