T685 · 1 of 11

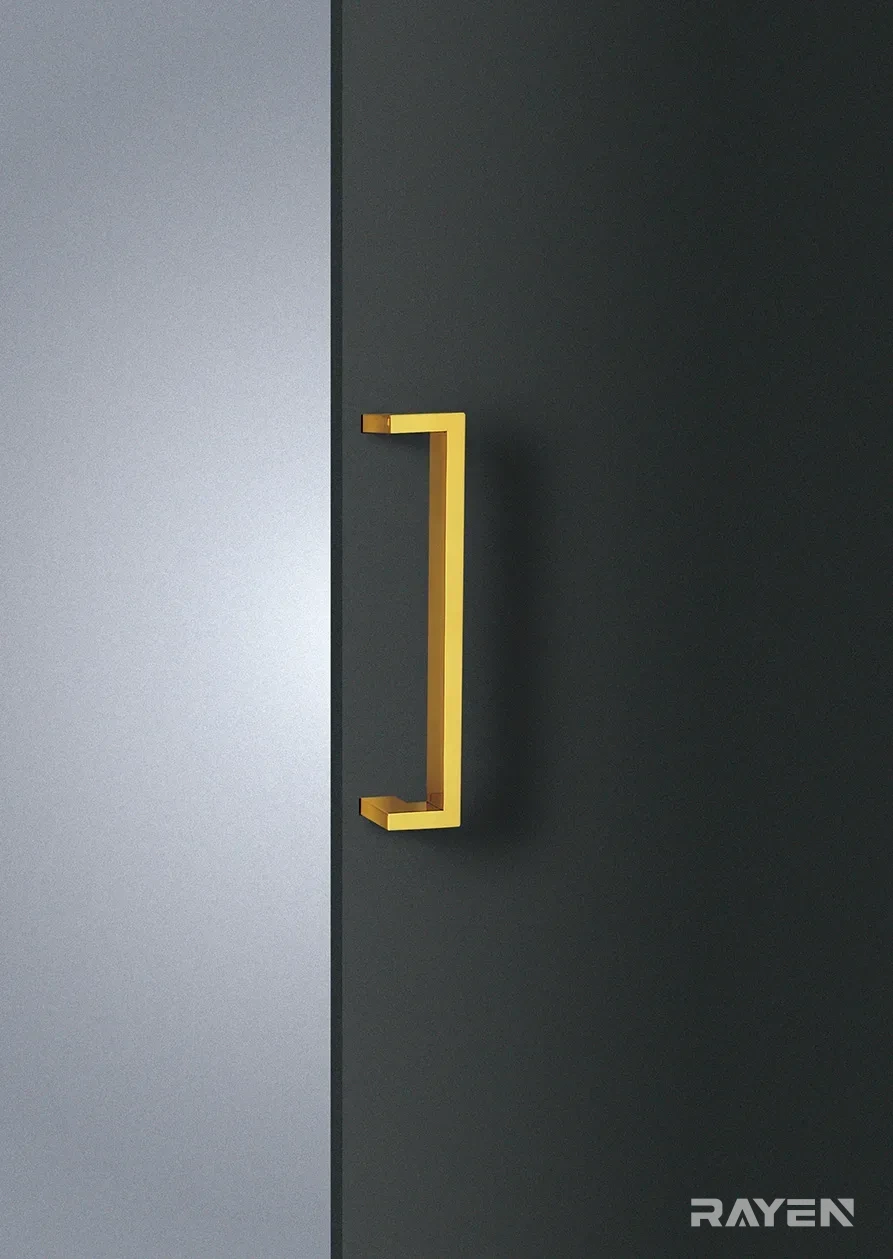

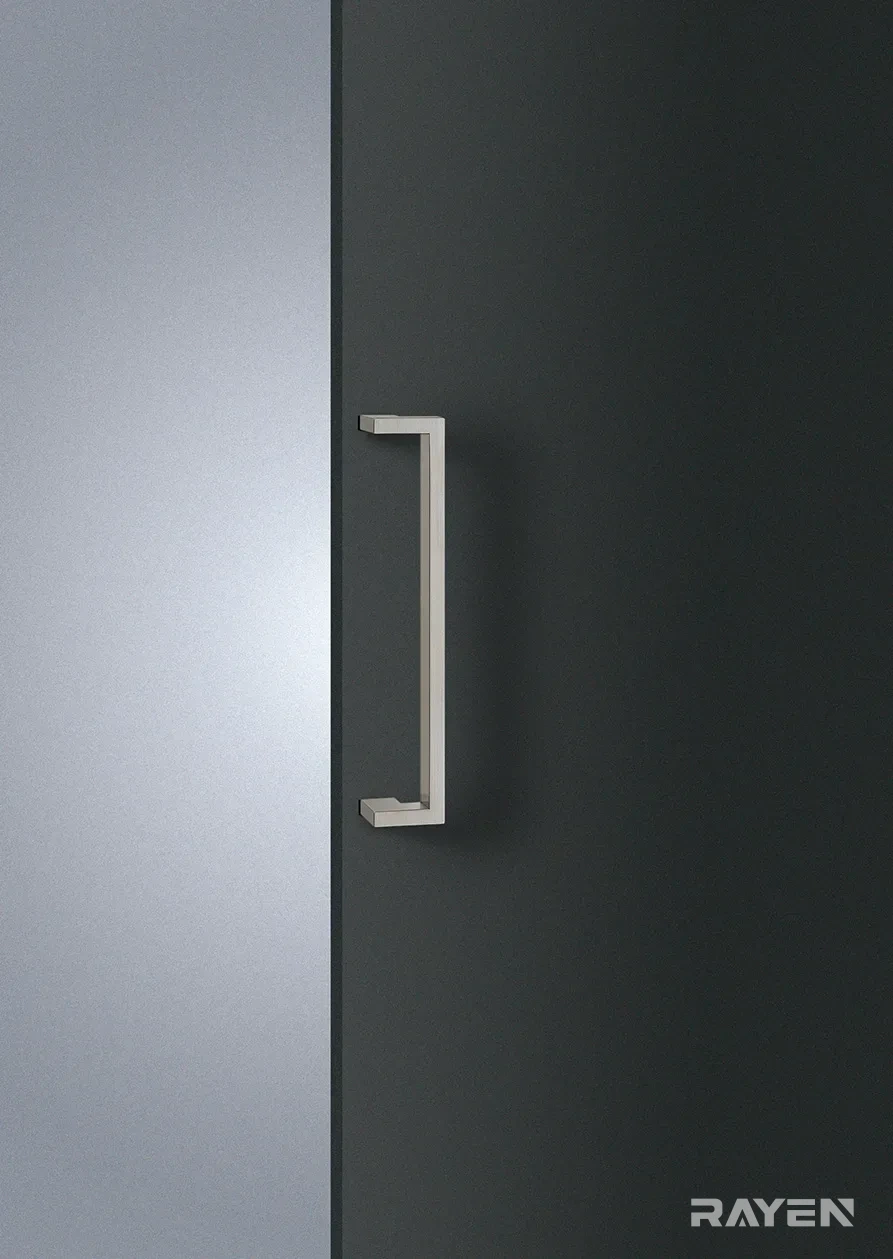

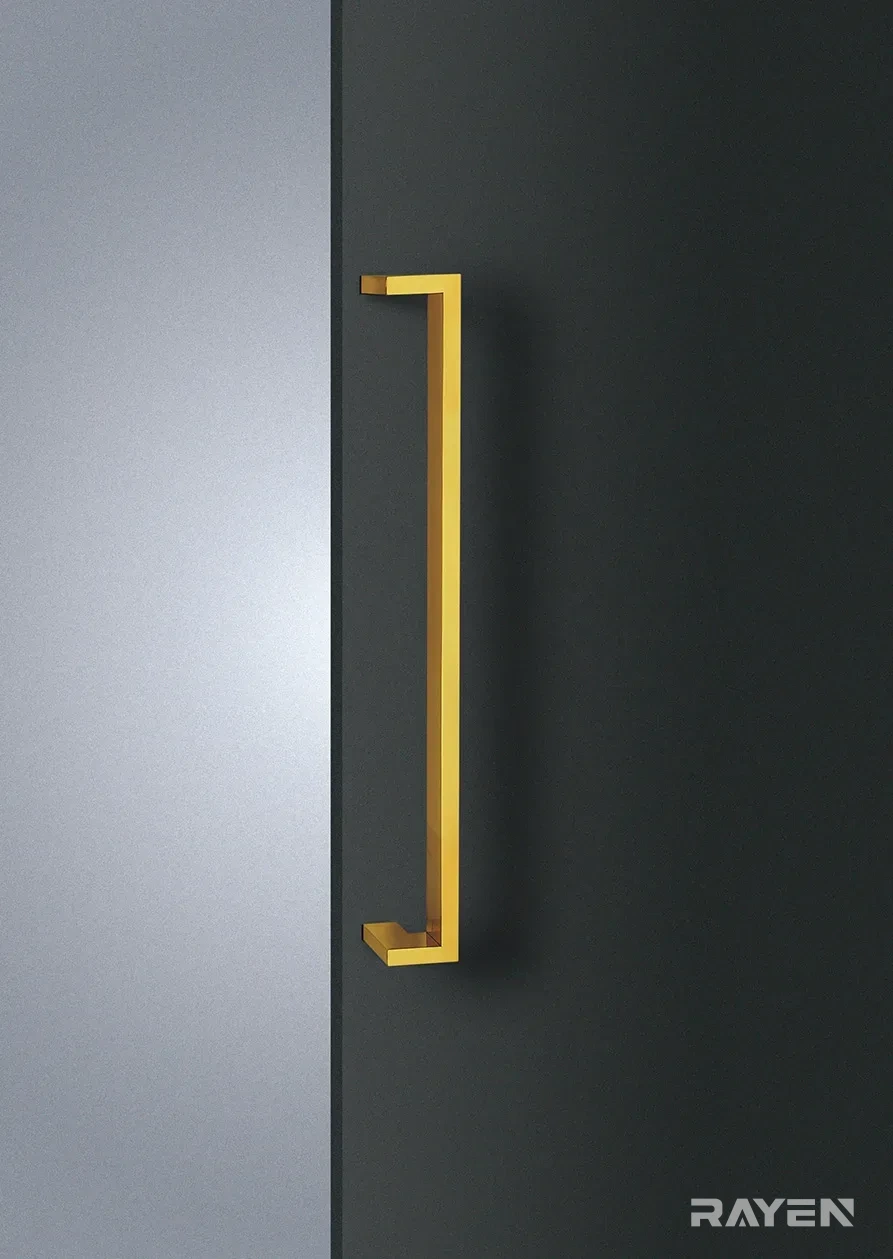

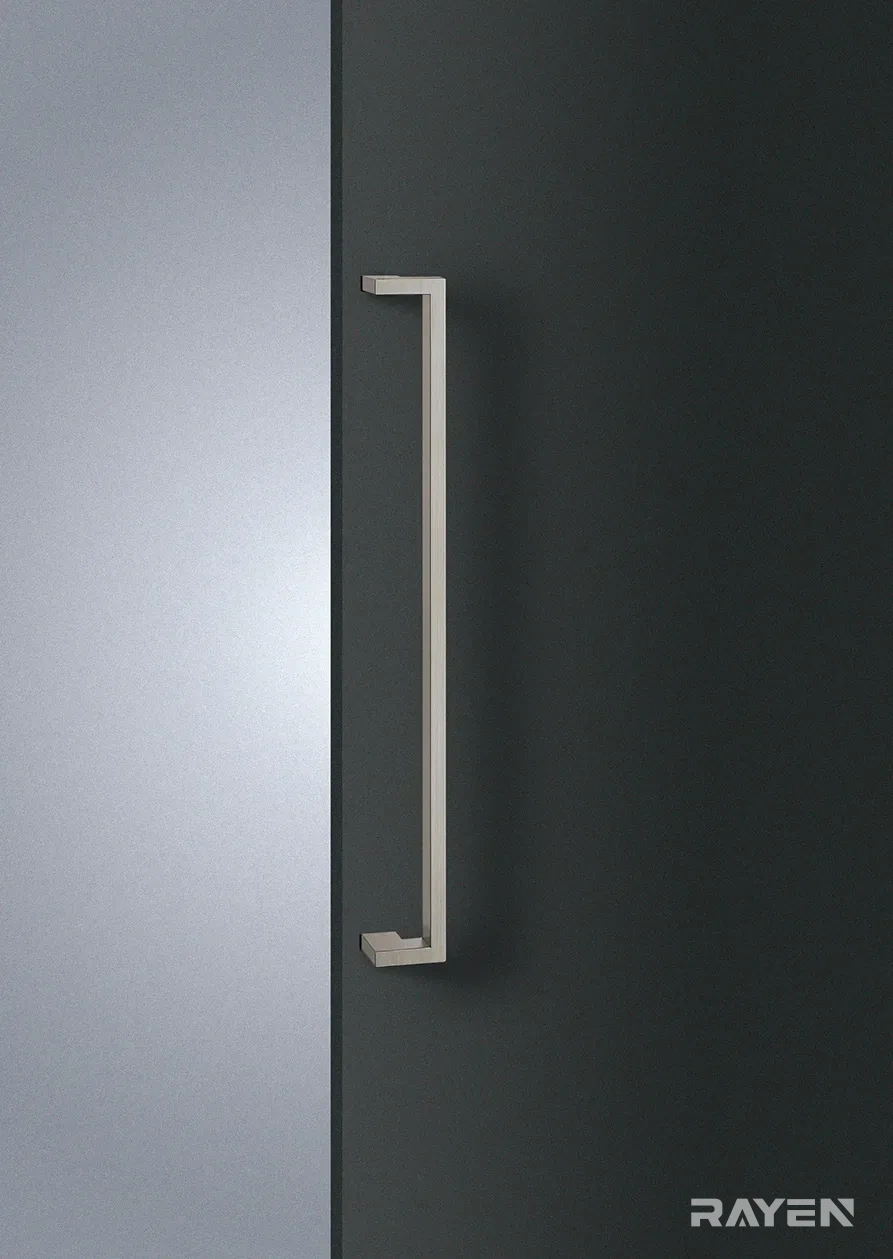

T685 Stainless Steel Handle
RAYEN T685 Stainless Steel Handle: centre distance 425mm (L443)/P=730mm (L748), overall length 443mm/748mm, grip section 40 × 18mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=425mm (L443) / P=730mm (L748) |
|---|---|
| Overall length | 443mm / 748mm |
| Grip section | 40 × 18mm |
| Projection | 70mm |
| Weight | 1.7kg |
| Available lengths | 443–750mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
