G685 Glass Door Handle
RAYEN G685 Glass Door Handle: centre distance 425mm, overall length 443mm, grip section 40mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes

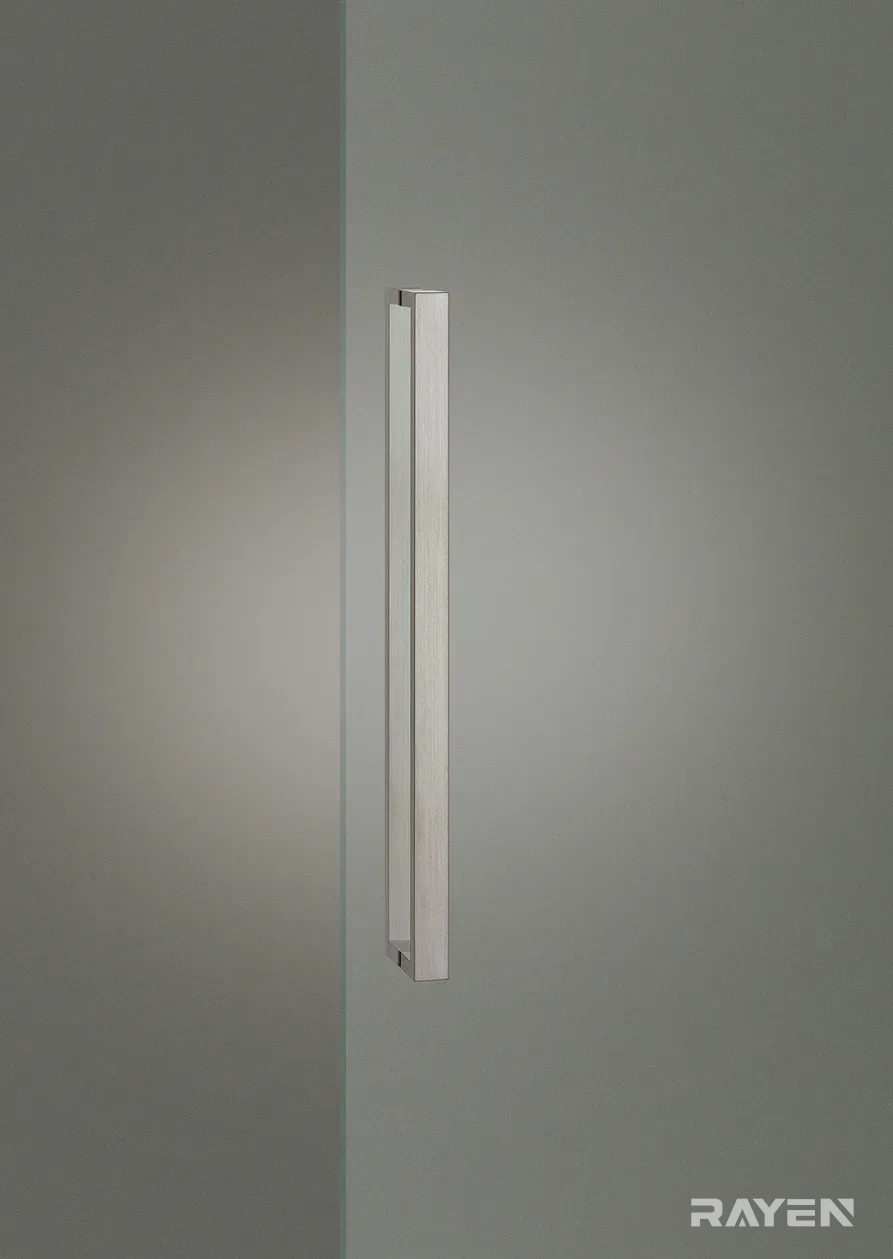

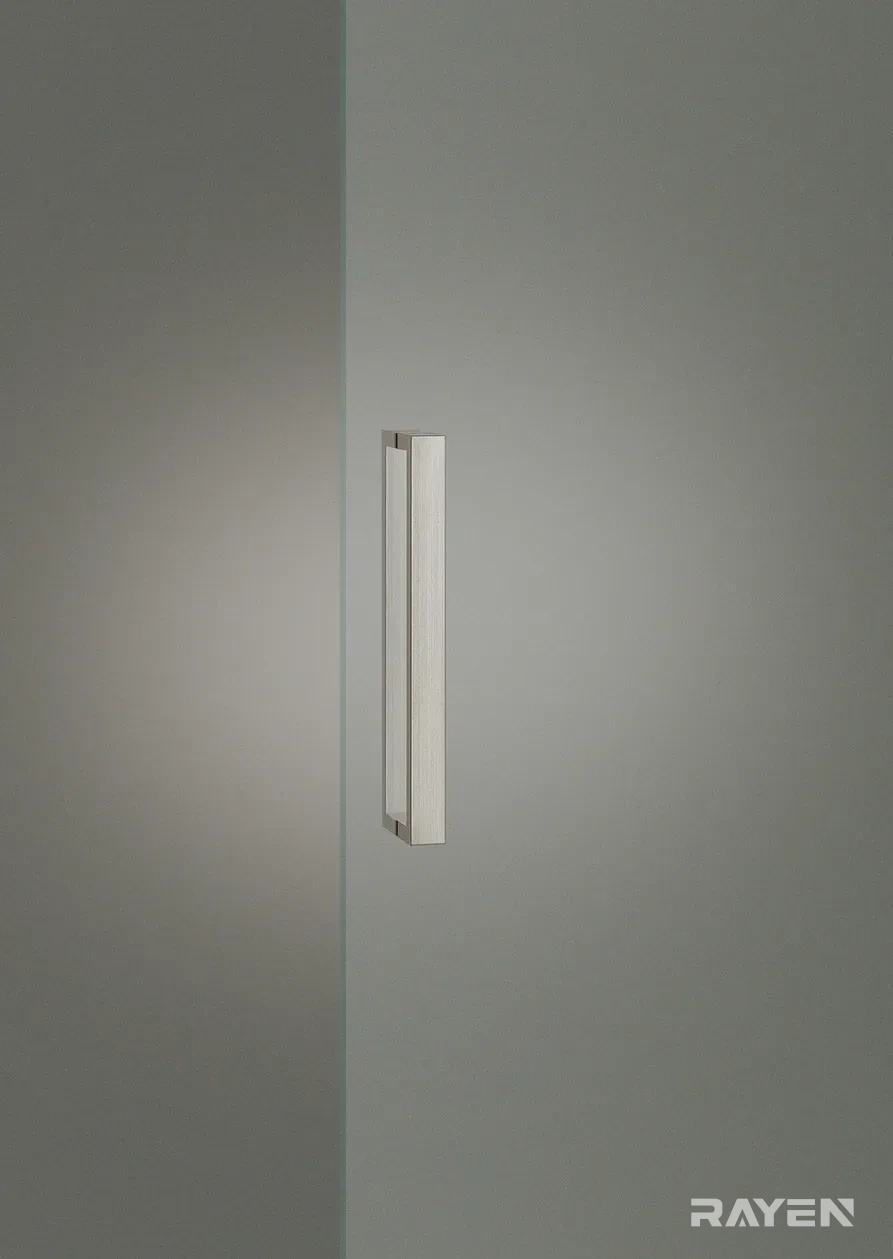

- Satin stainless
- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 443mm |
| Grip section | 40mm |
| Stem diameter | 18mm |
| Projection | 60mm |
| Weight | 1.5kg |
| Available lengths | 443–750mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
