T720 Stainless Steel Handle
RAYEN T720 Stainless Steel Handle: centre distance 425mm, overall length 800mm, grip section 25mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes

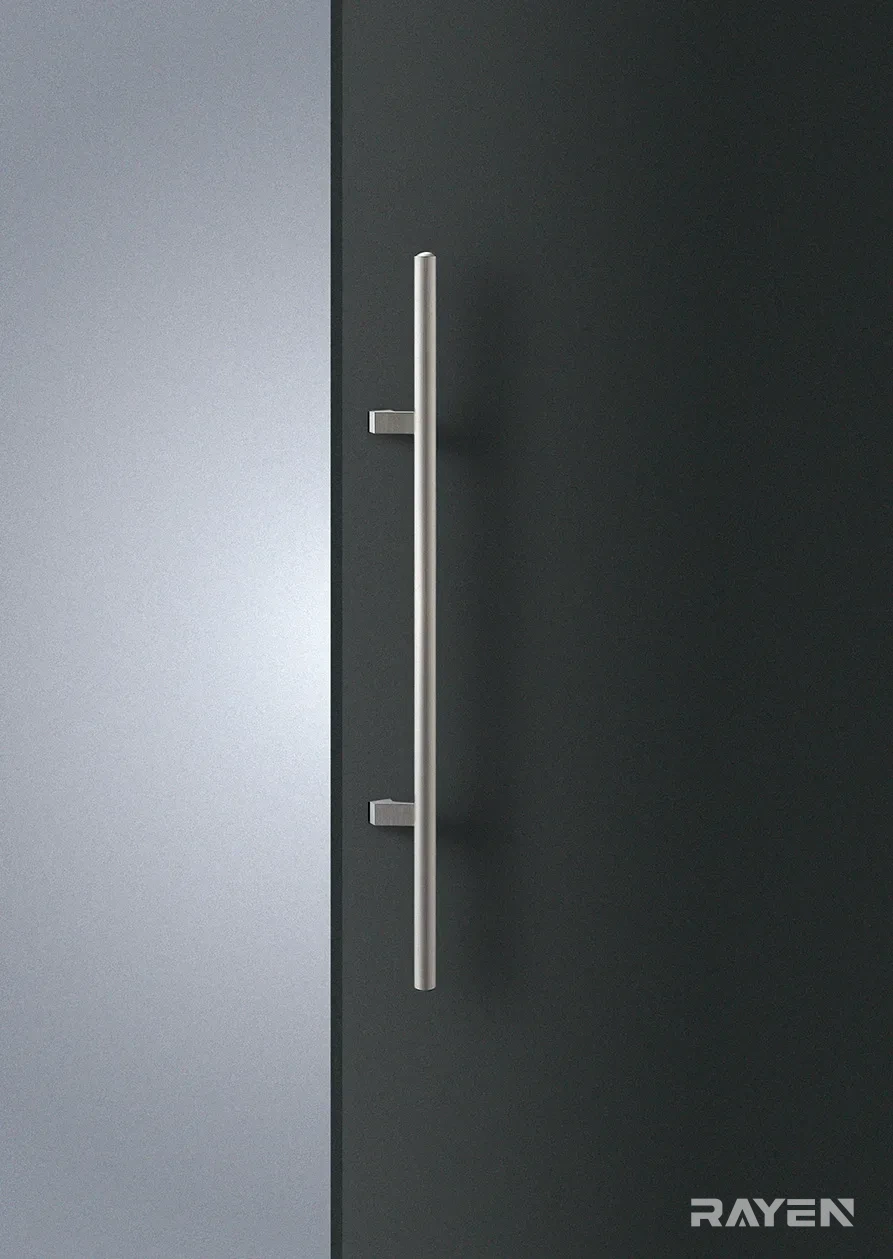

- Satin stainless

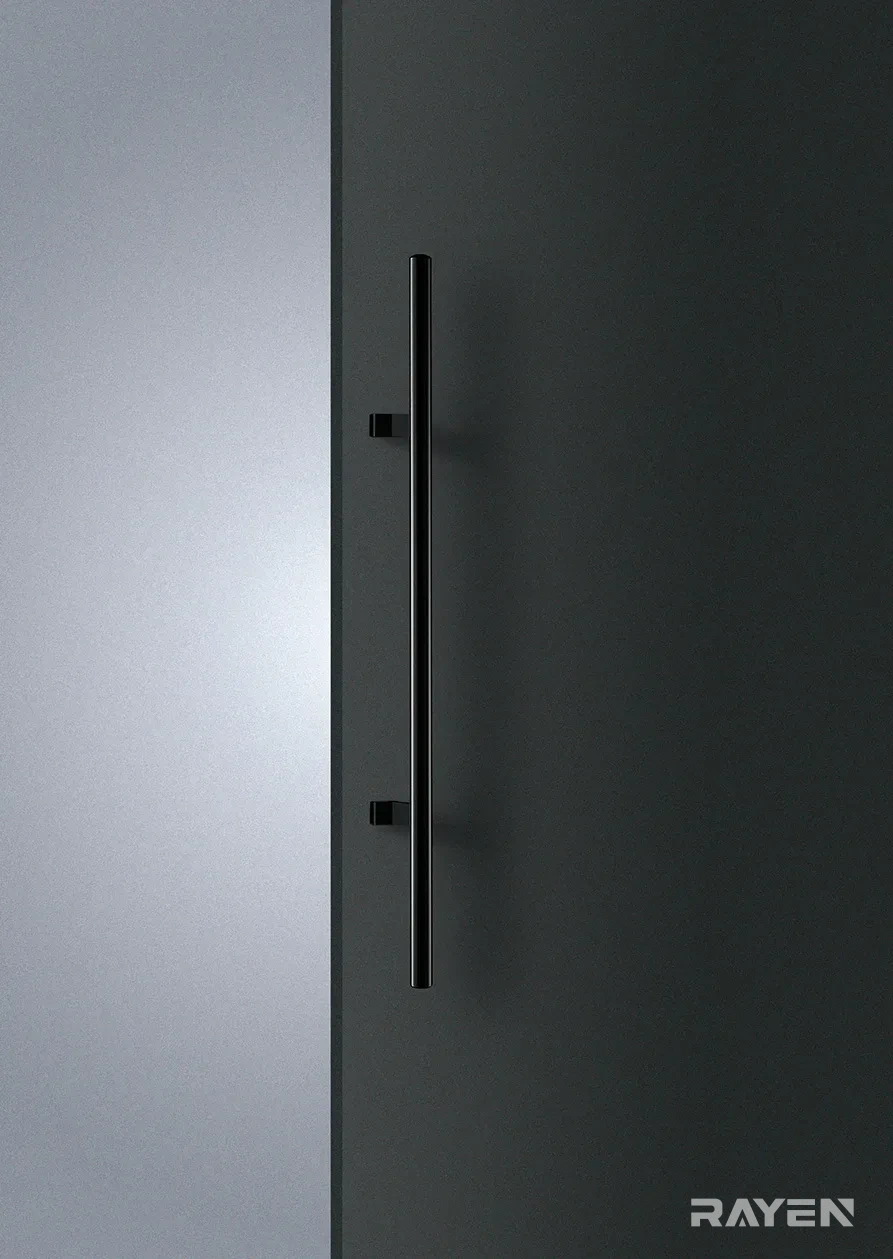

- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 800mm |
| Grip section | 25mm |
| Projection | 58mm |
| Weight | 2kg |
| Fixing screw | M6 |
| Fixing hole | φ8mm |
| Fixing hole (glass door) | φ12mm |
Matching range
This lever belongs to the same design family as the pull handles below.
