G720 Glass Door Handle

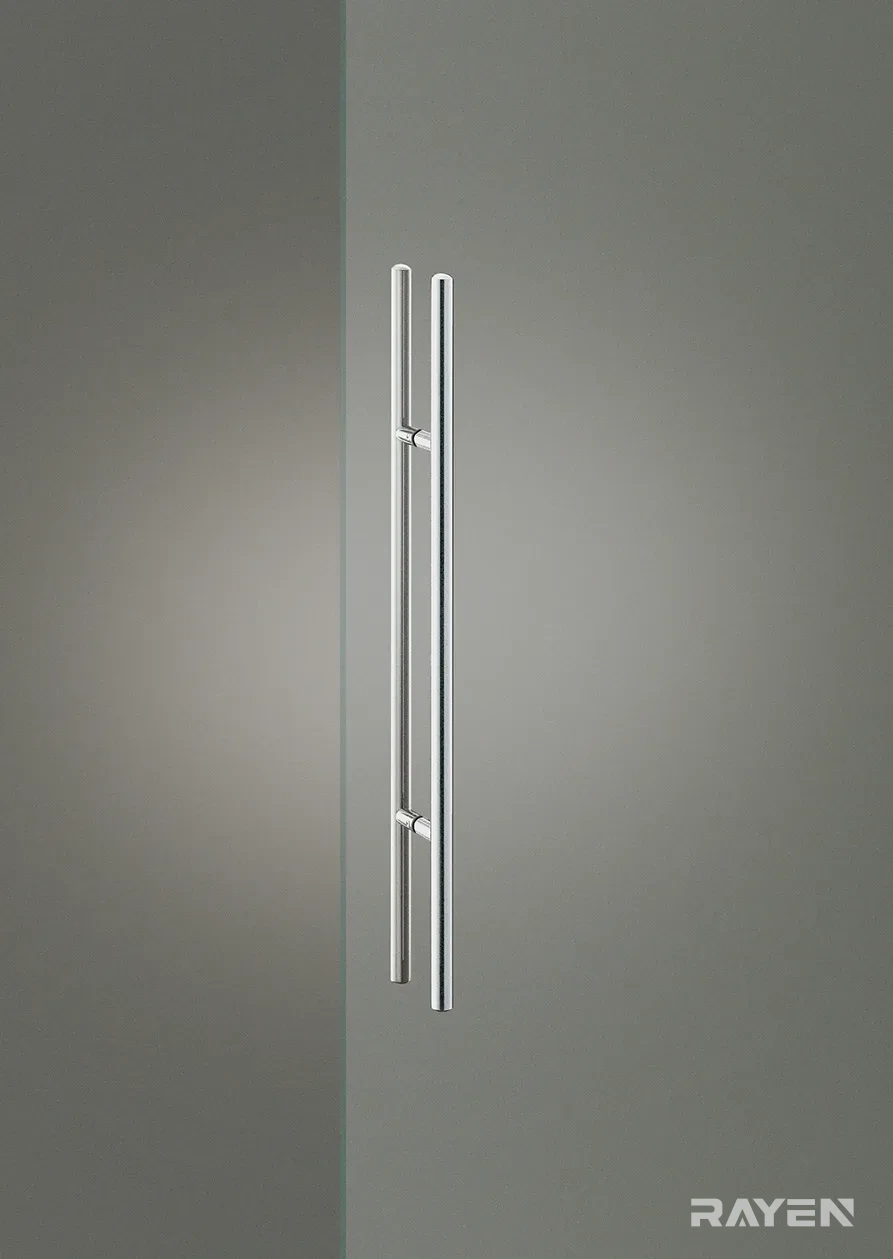

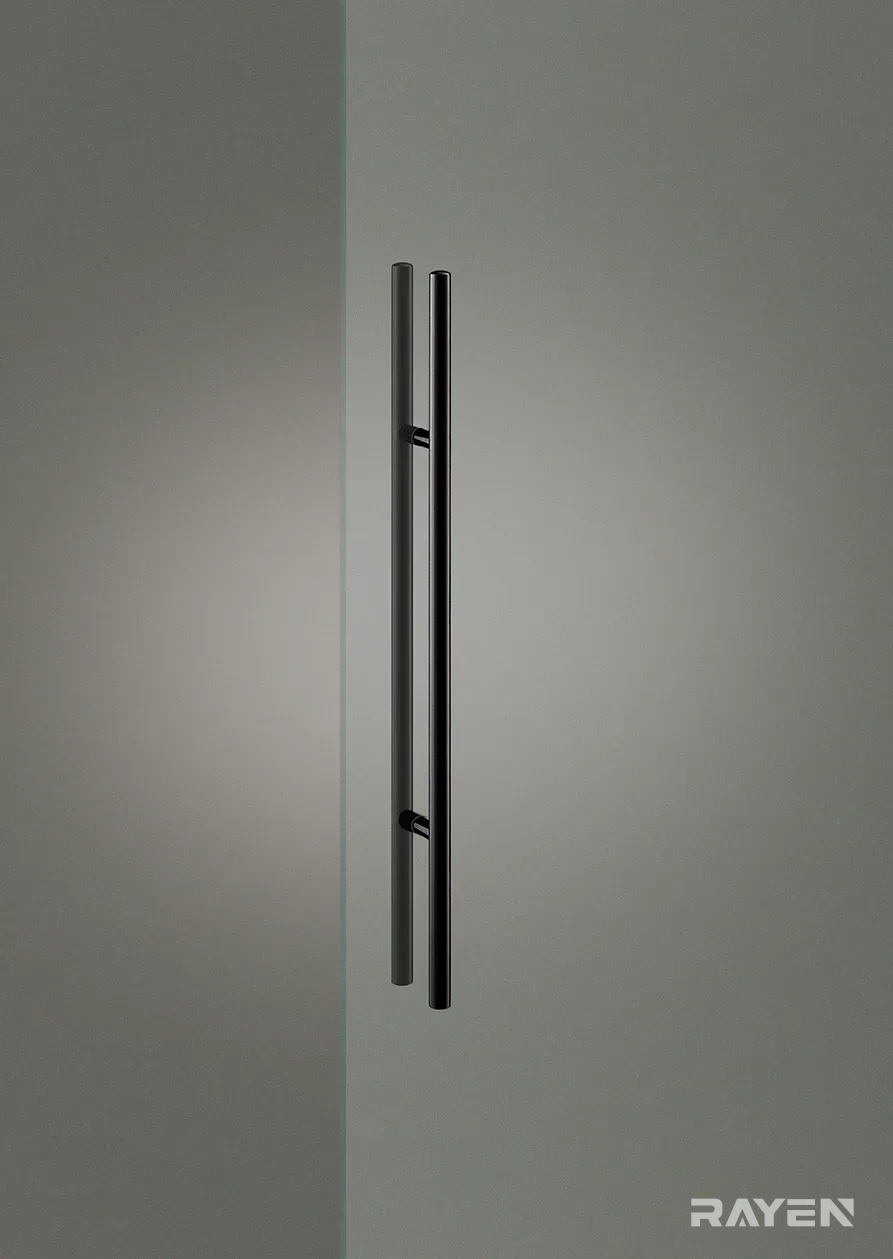

RAYEN G720 Glass Door Handle: centre distance 425mm, overall length 800mm, grip section 20mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 800mm |
| Grip section | 20mm |
| Projection | 60mm |
| Weight | 1.6kg |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
Matching range
This lever belongs to the same design family as the pull handles below.
