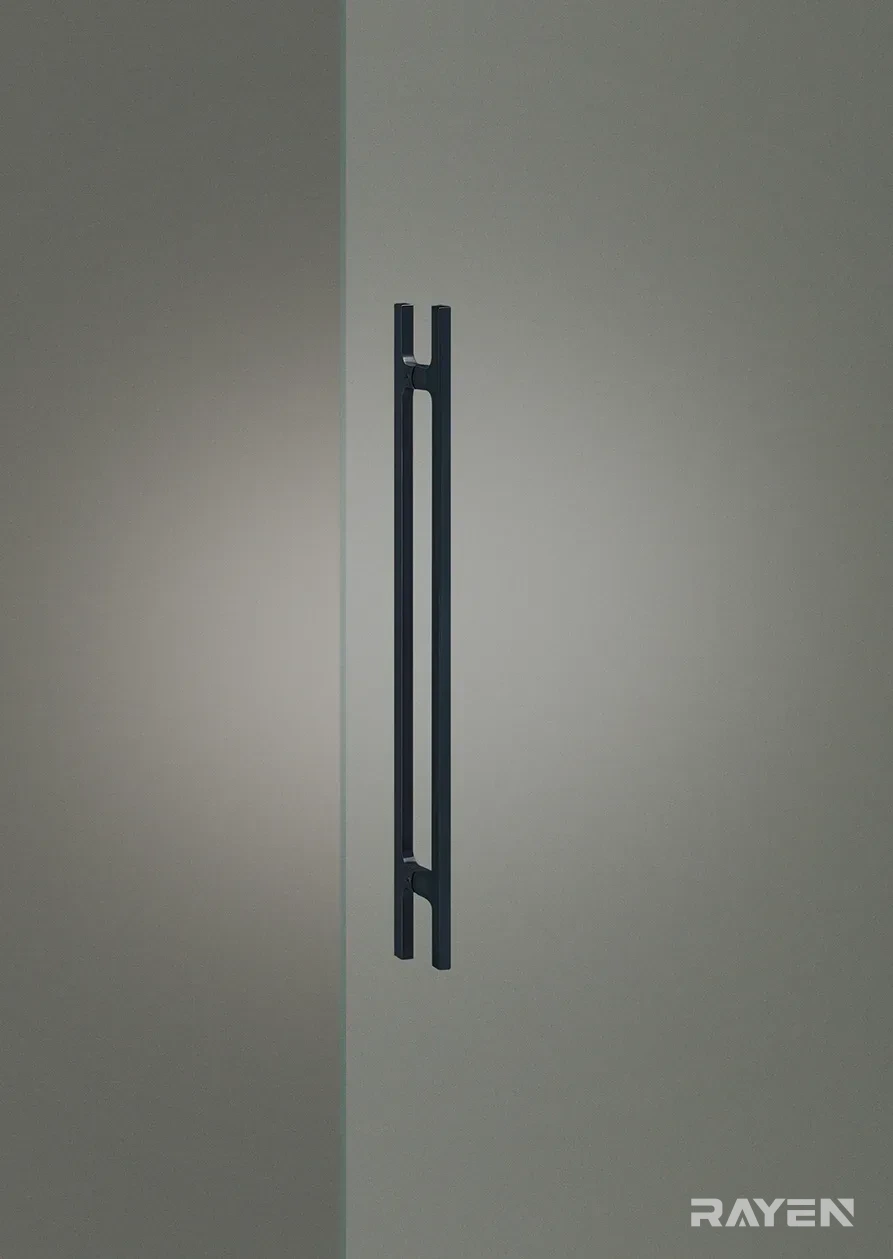

G1130 Glass Door Handle
RAYEN G1130 Glass Door Handle: centre distance 540mm, overall length 700mm, rose diameter 24mm, grip section 22mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | 540mm |
|---|---|
| Overall length | 700mm |
| Projection | 65mm |
| Rose diameter | 24mm |
| Stem diameter | 14mm |
| Grip section | 22mm |
| Weight | 2.6kg |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
Matching range
Matching lever handles in the same design: MUL1022, UL1022. Available as a set.
