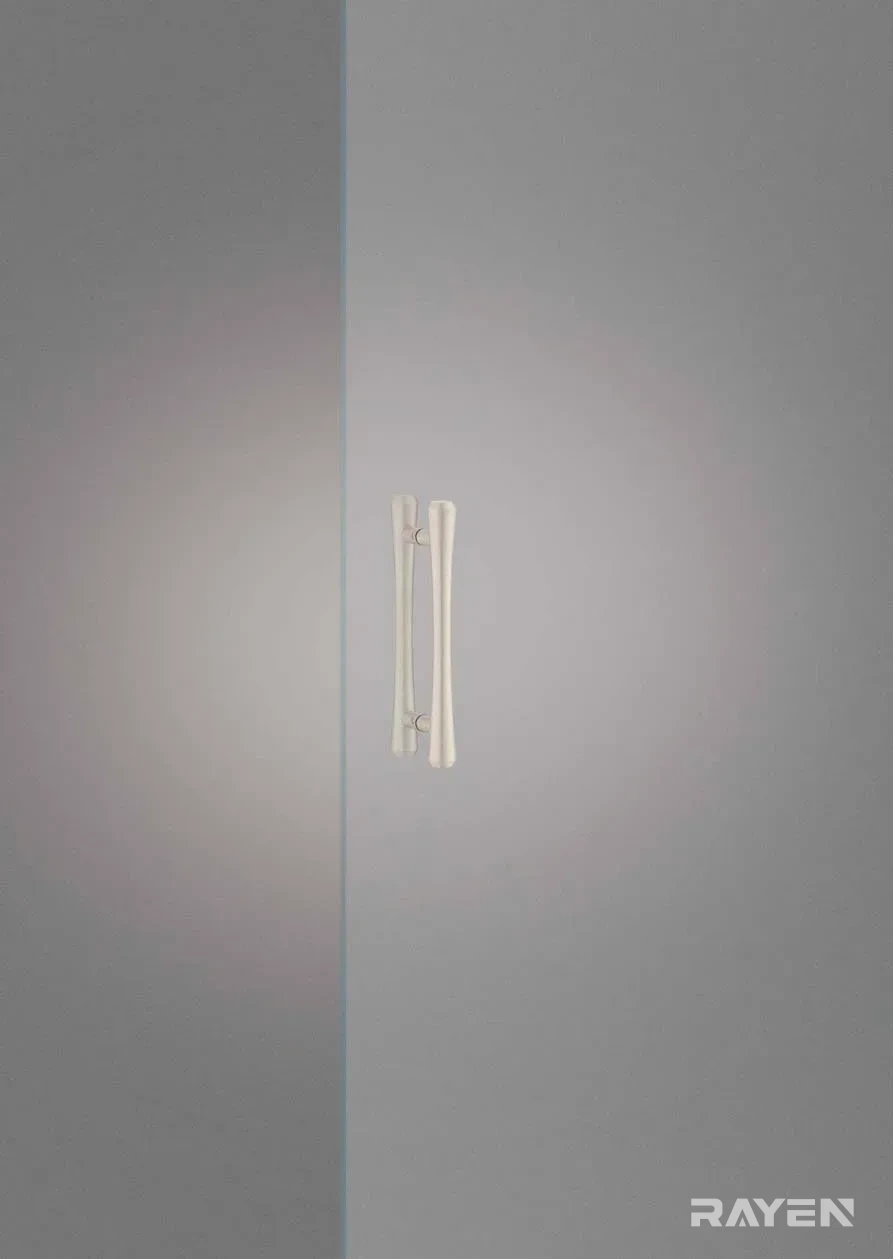

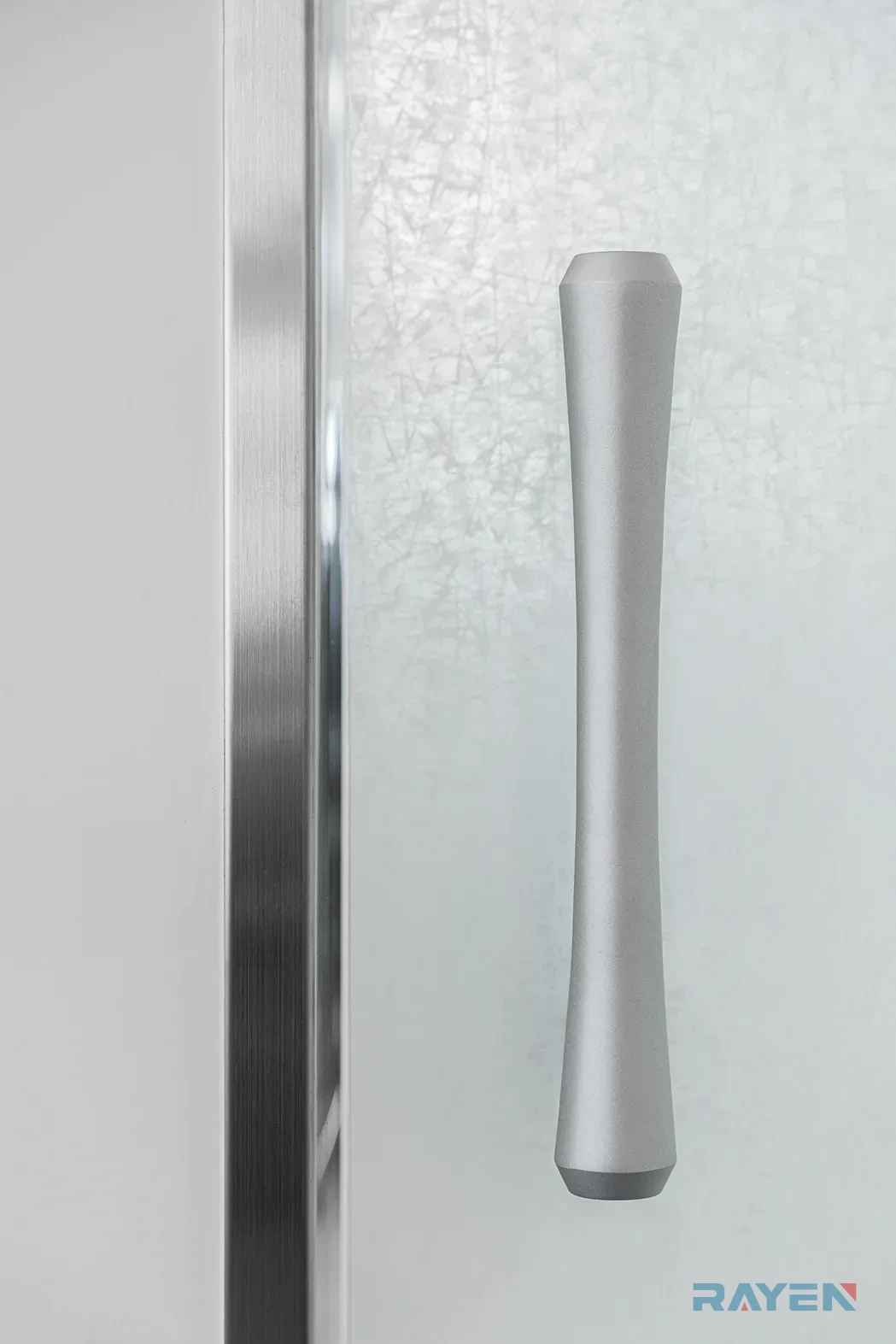

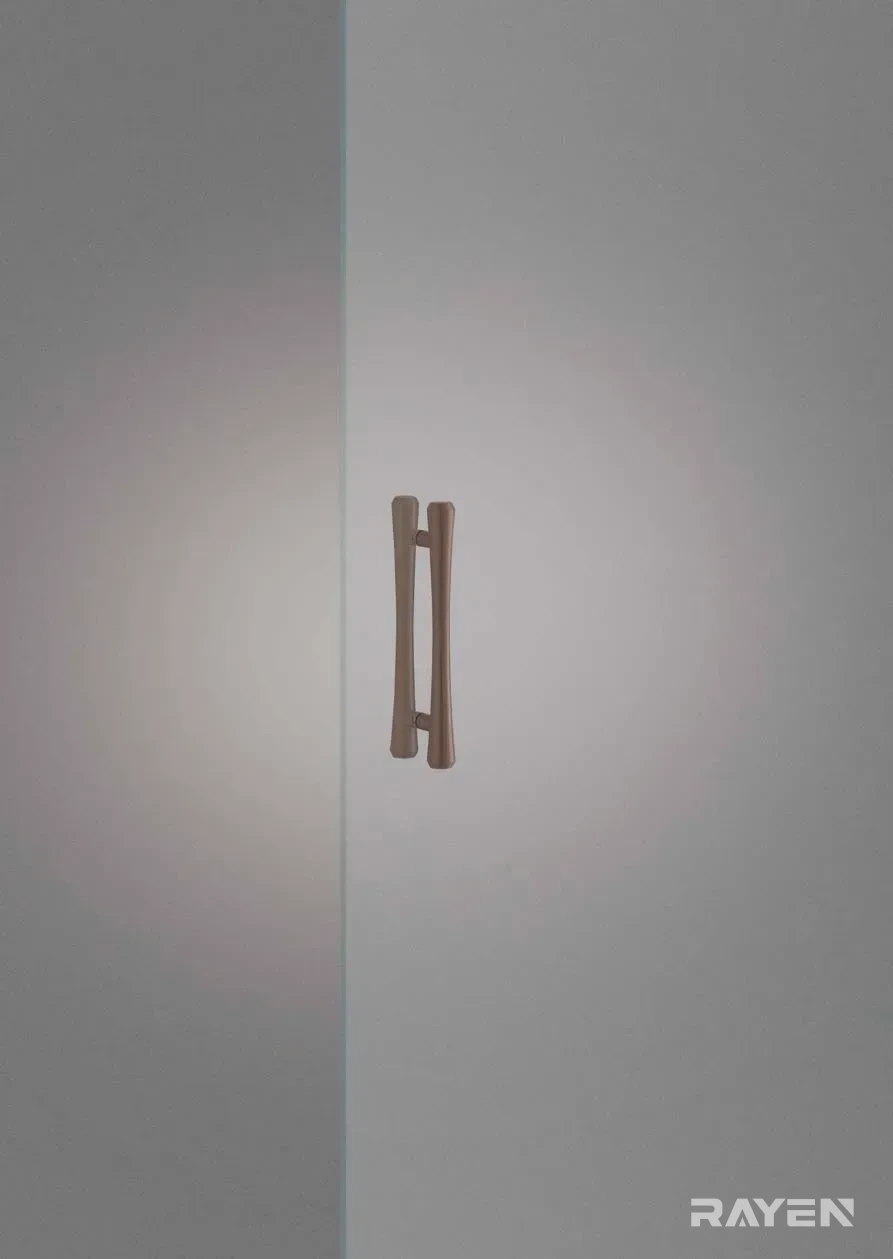

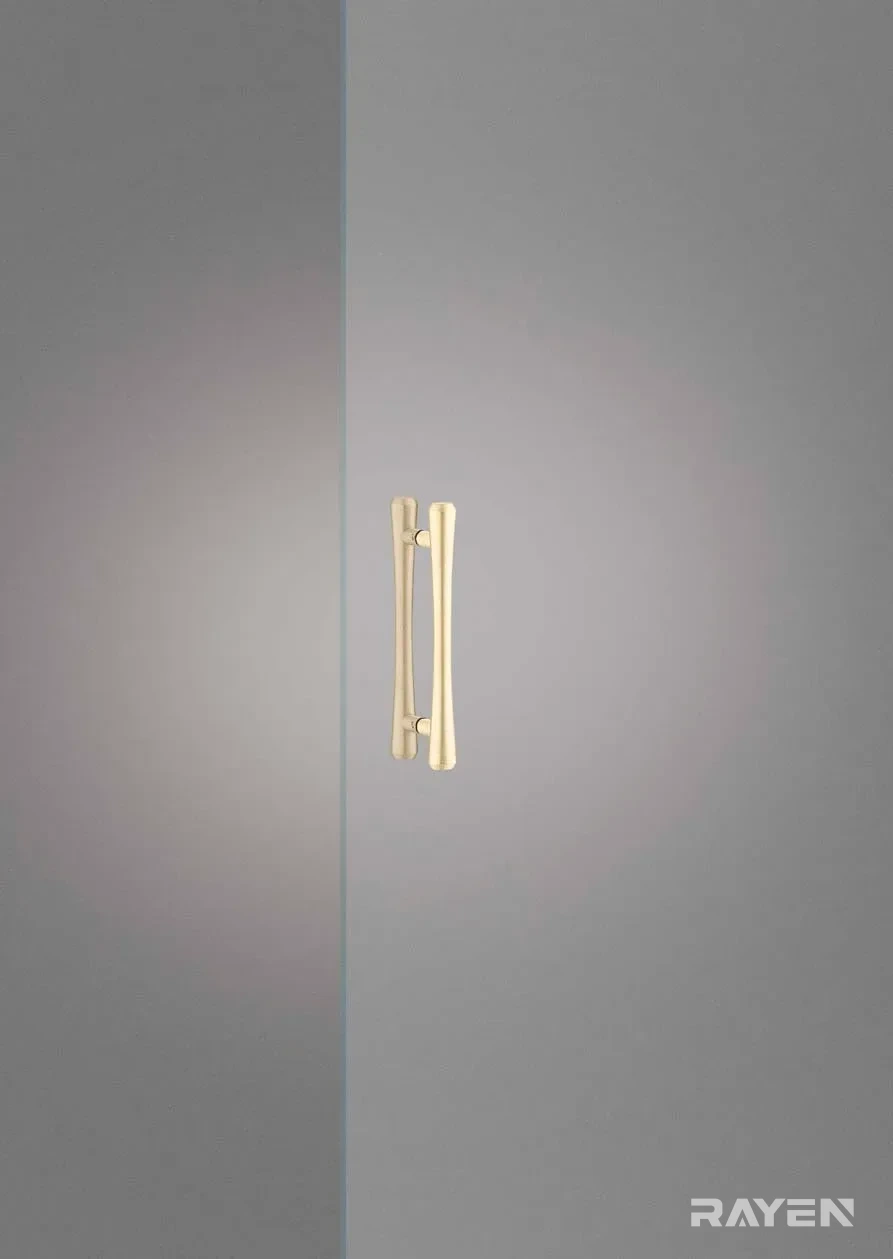

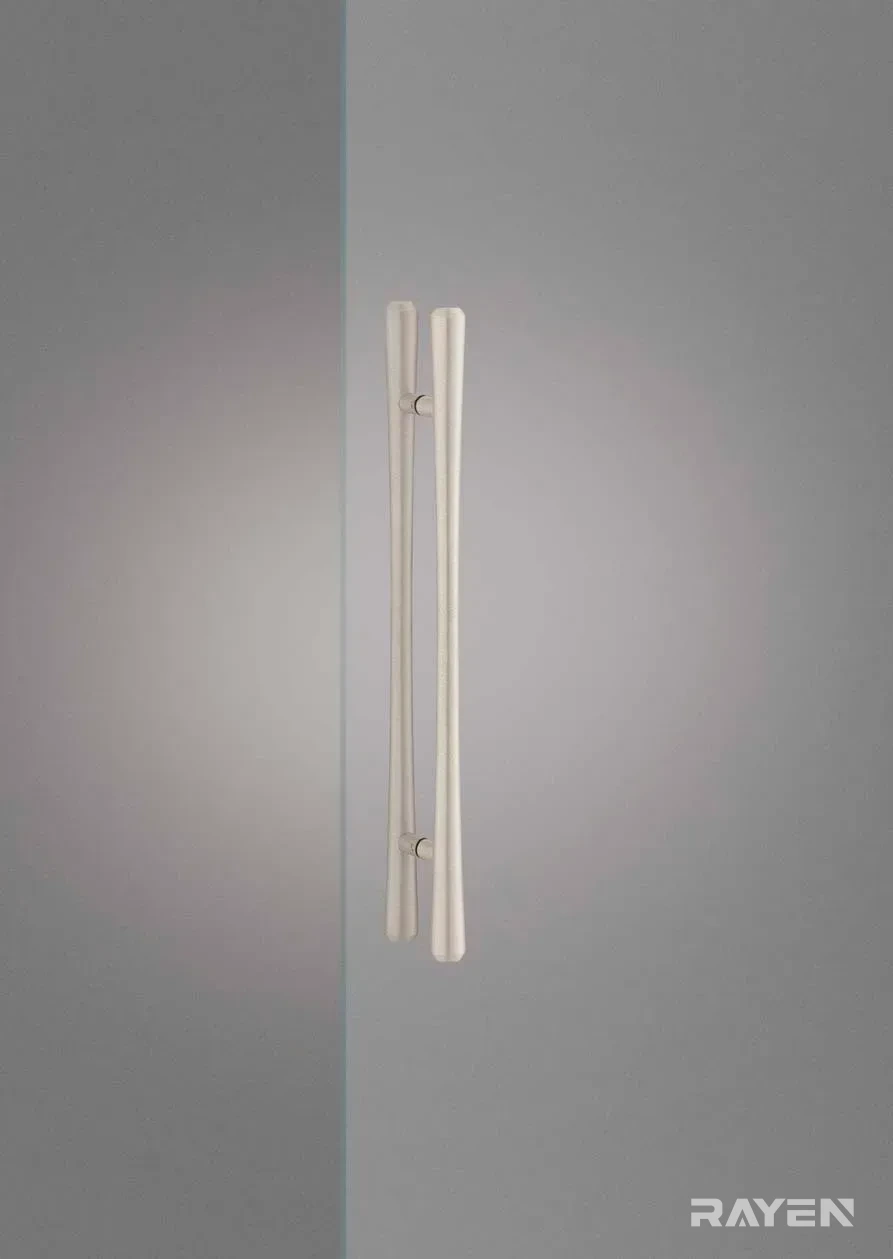

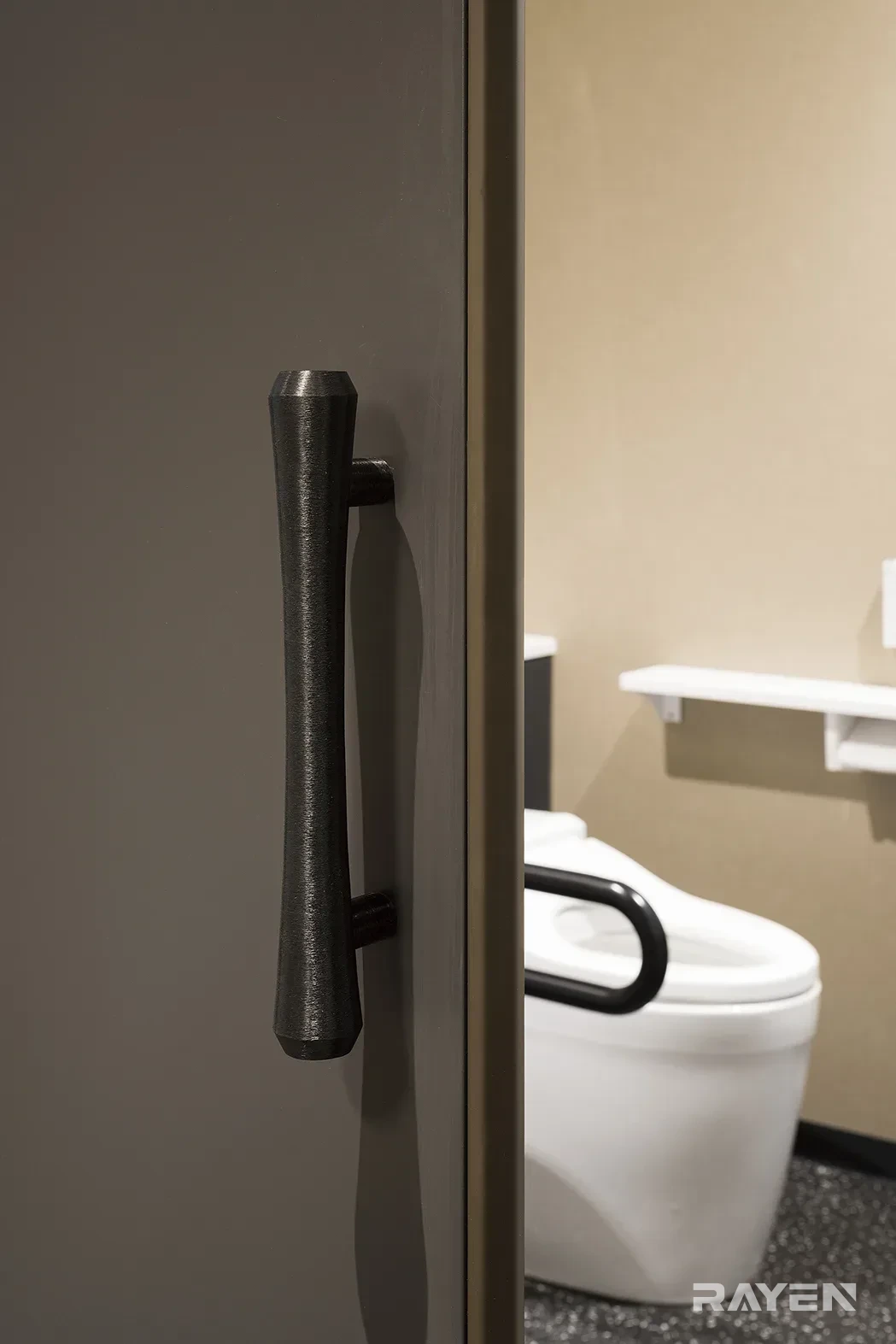

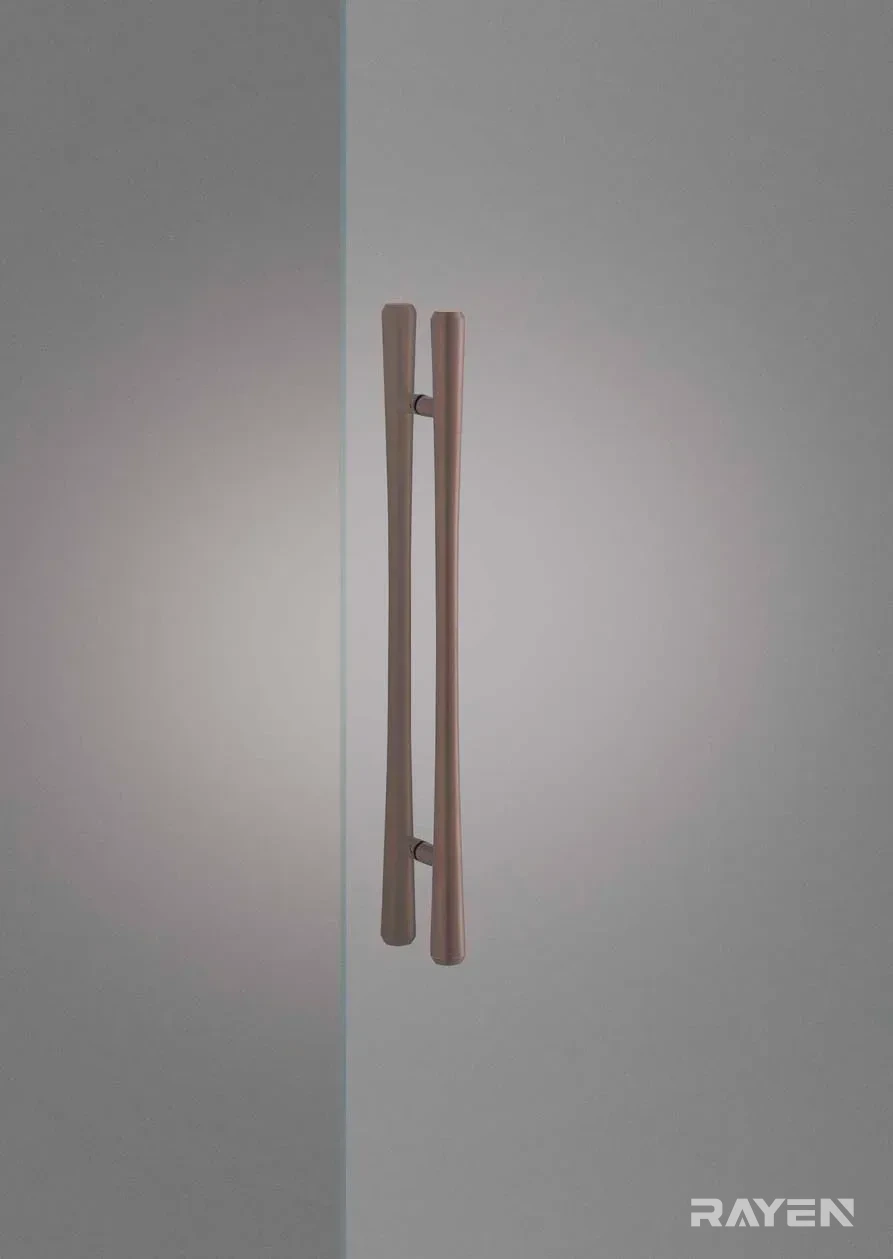

G1234 Glass Door Handle
RAYEN G1234 Glass Door Handle: centre distance 500mm, overall length 700mm, grip section 22mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.

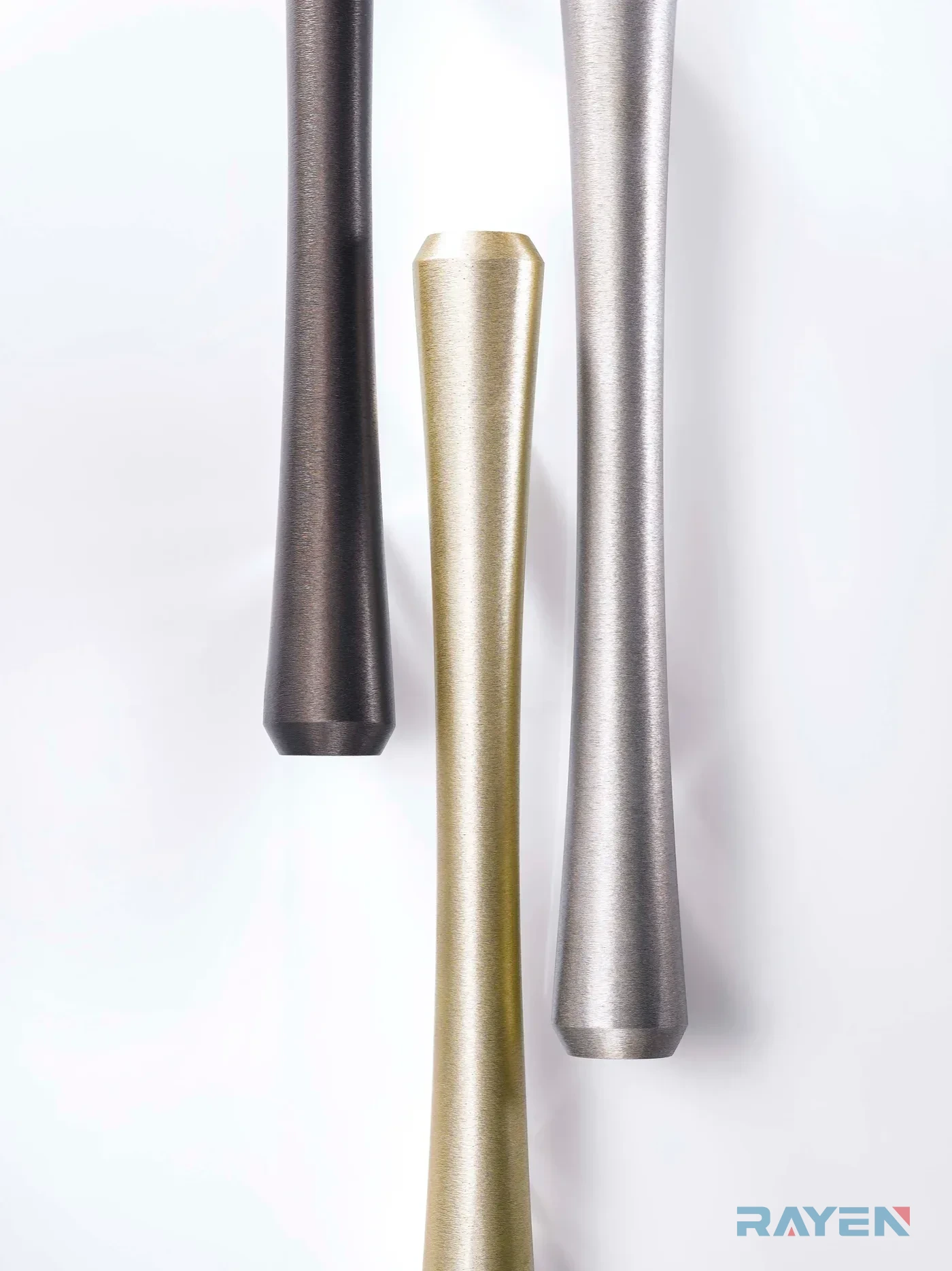

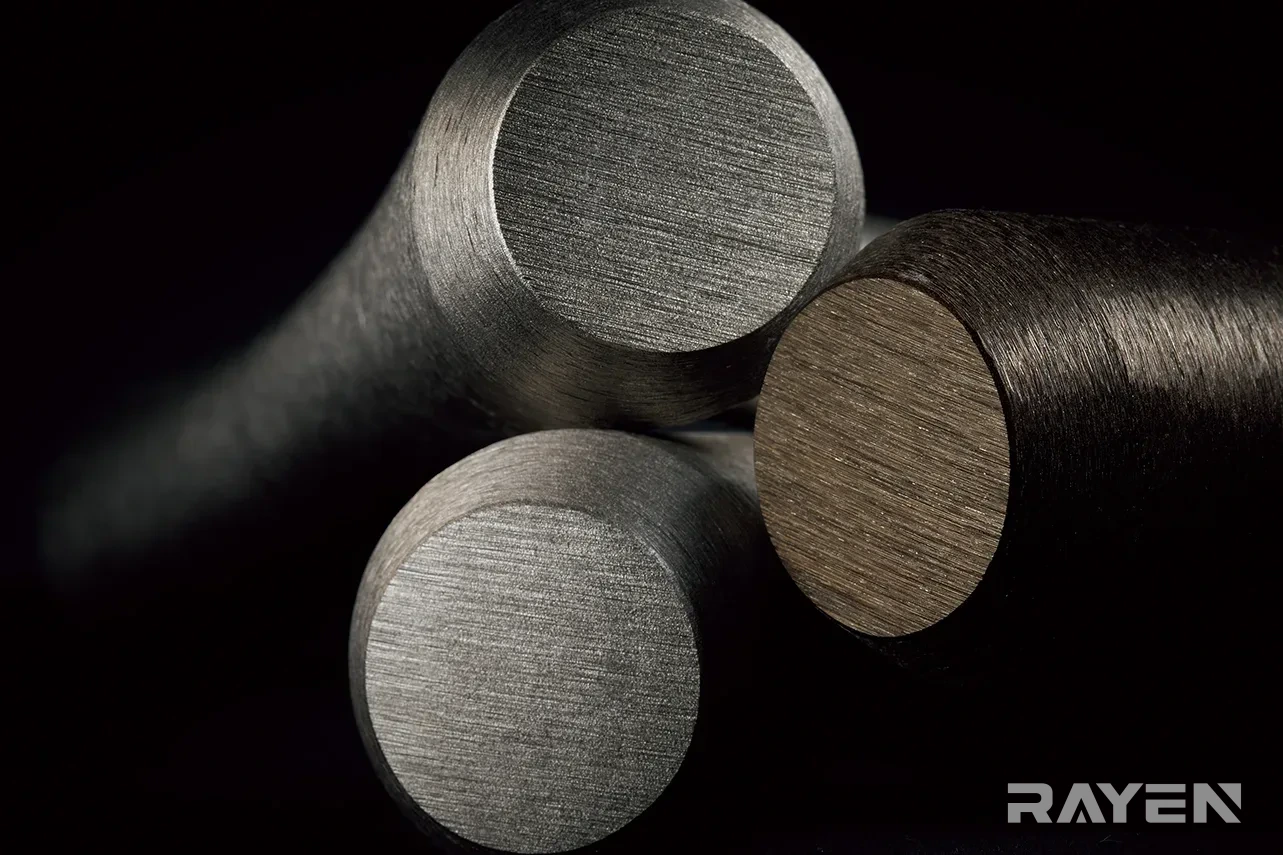

Available finishes
- Satin stainless
- Matt black
- Antique brass
Specification
| Centre distance | P=500mm |
|---|---|
| Overall length | 700mm |
| Grip section | 22mm |
| Stem diameter | 40mm |
| Projection | 64.5mm |
| Weight | 3.1kg |
| Available lengths | 300–700mm |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
