G1236 · 1 of 13
G1236 Glass Door Handle
RAYEN G1236 Glass Door Handle: centre distance 425mm, overall length 600mm, grip section 22mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.

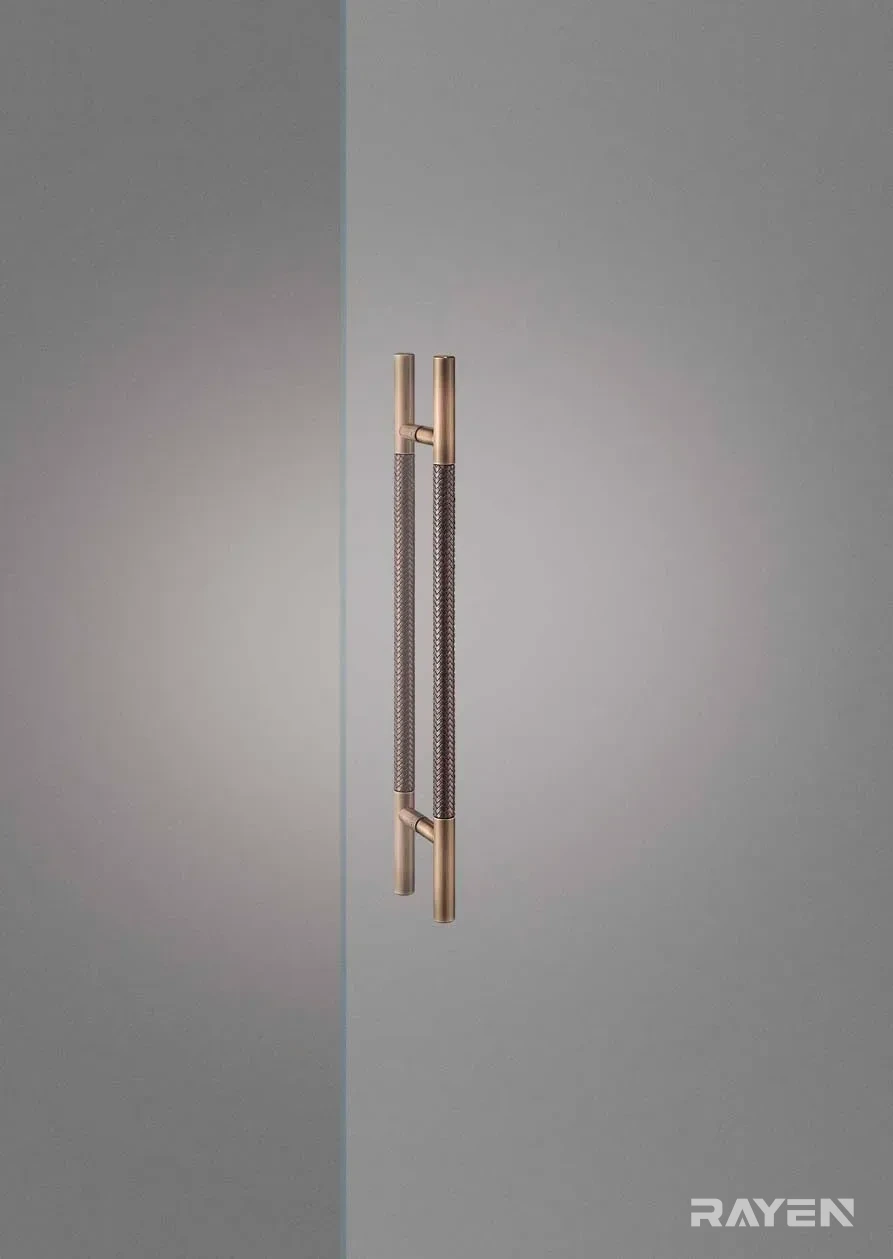

Available finishes

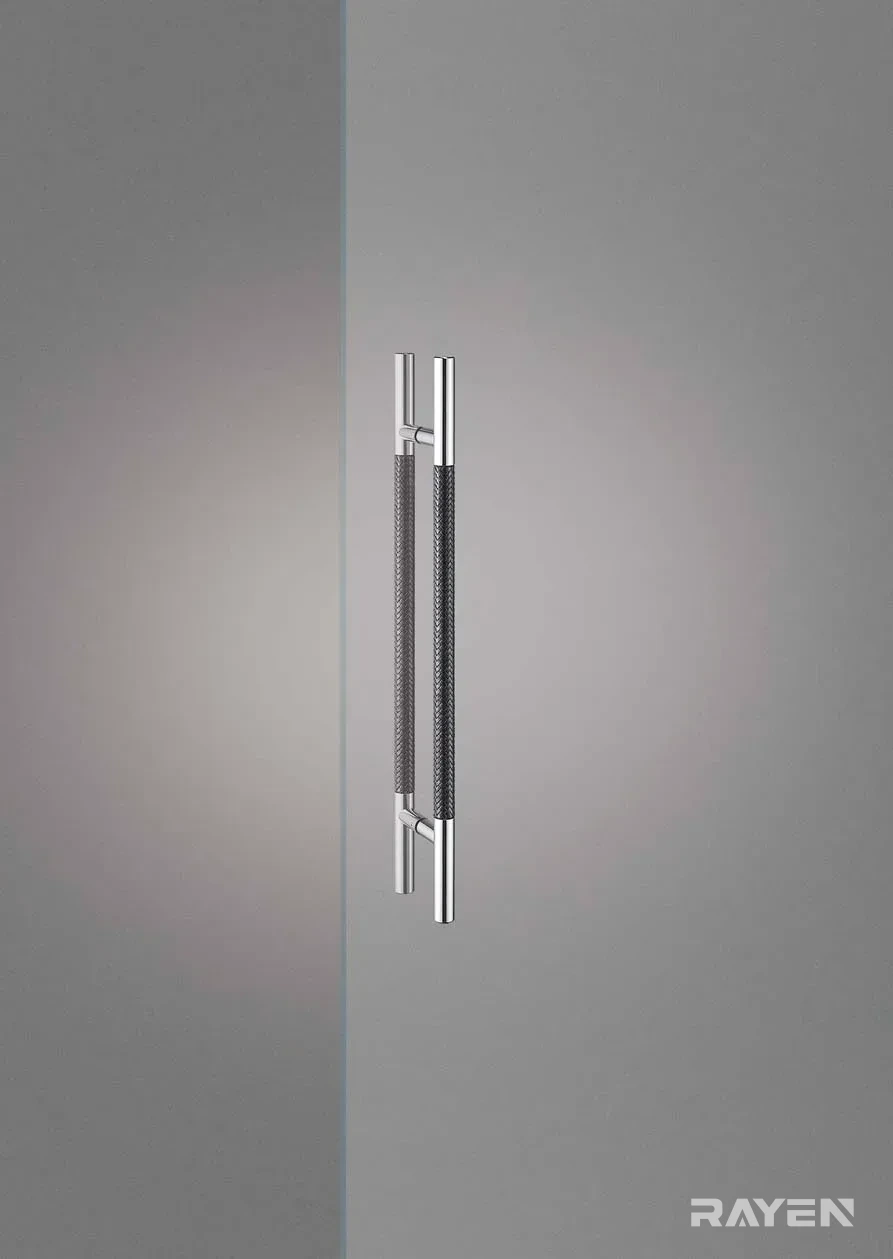

- Satin stainless

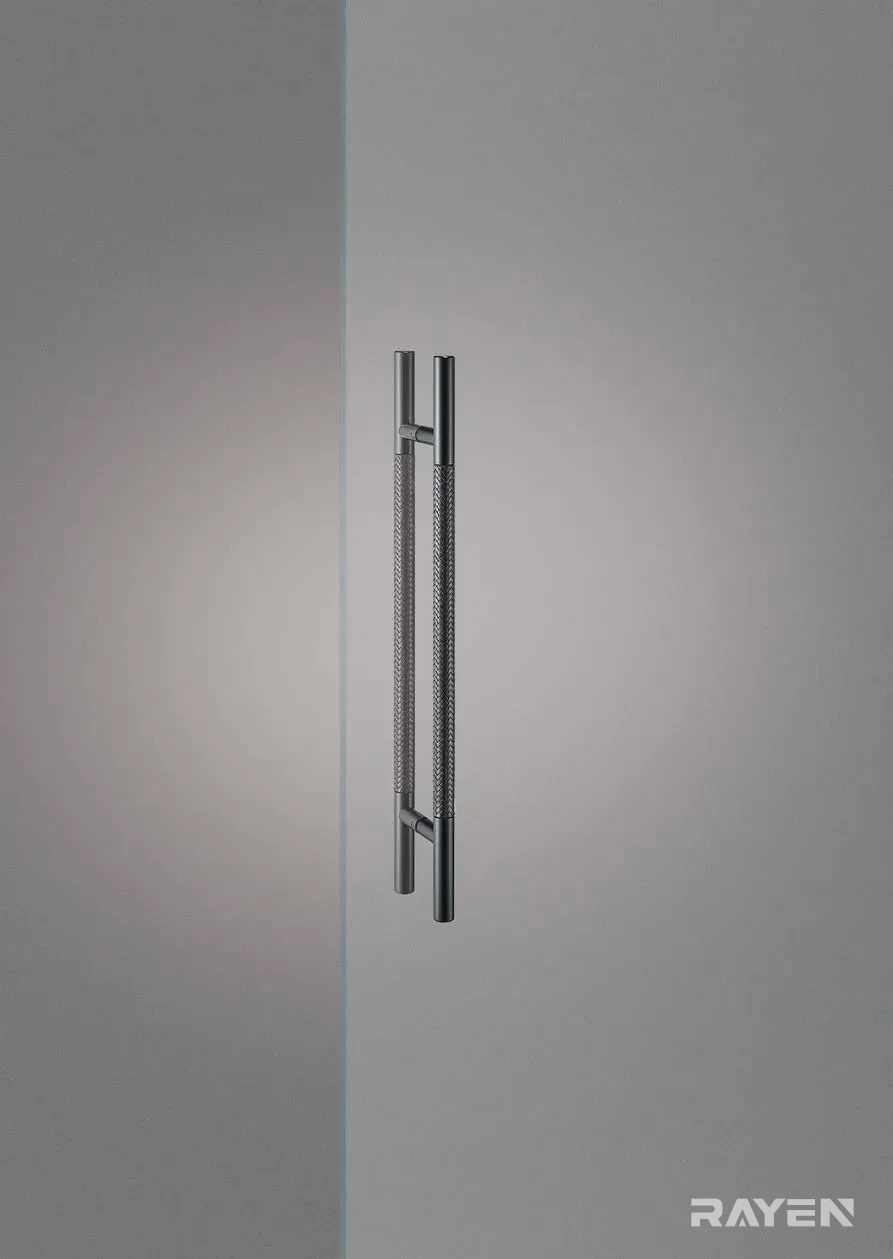

- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 600mm |
| Grip section | 22mm |
| Stem diameter | 19mm |
| Projection | 62mm |
| Weight | 1.4kg |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
Matching range
Matching lever handles in the same design: UL1061. Available as a set.
