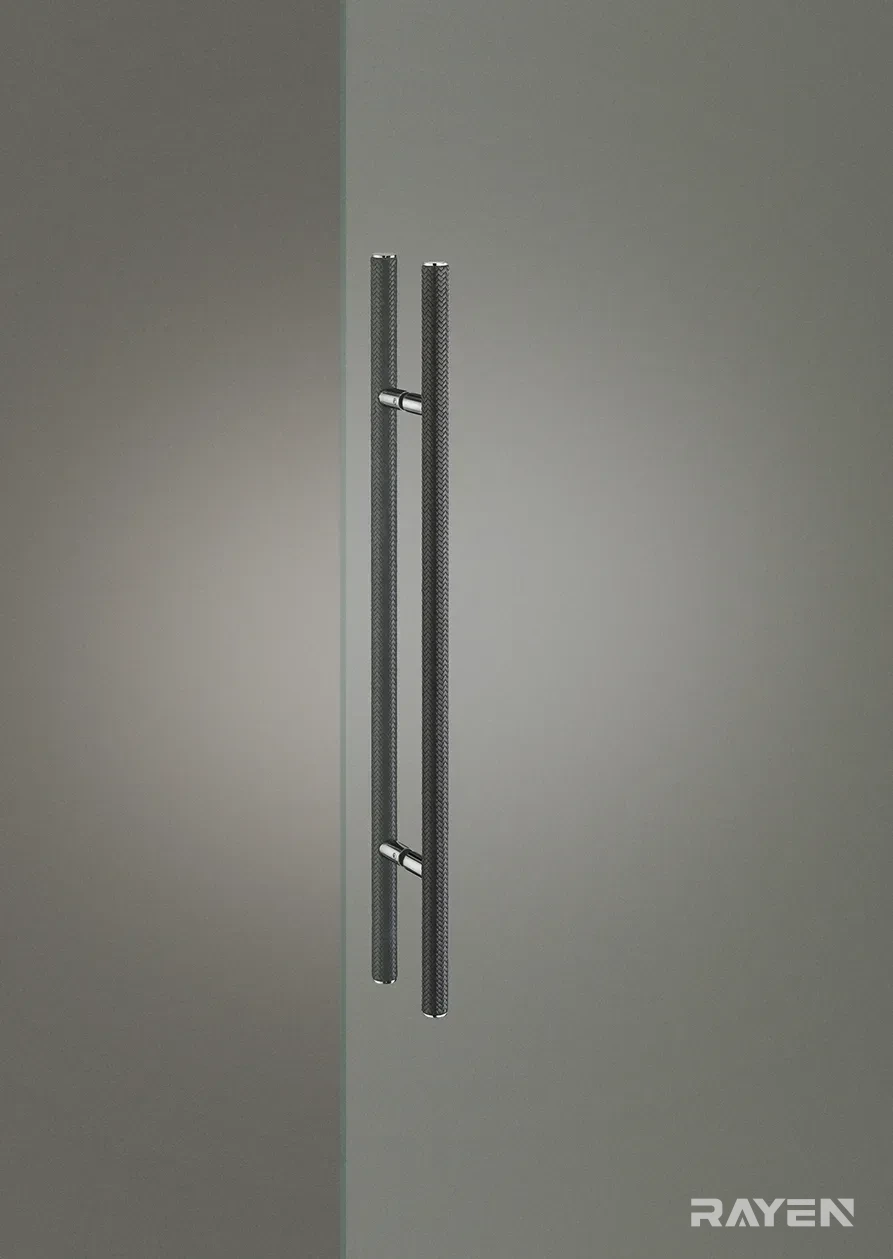

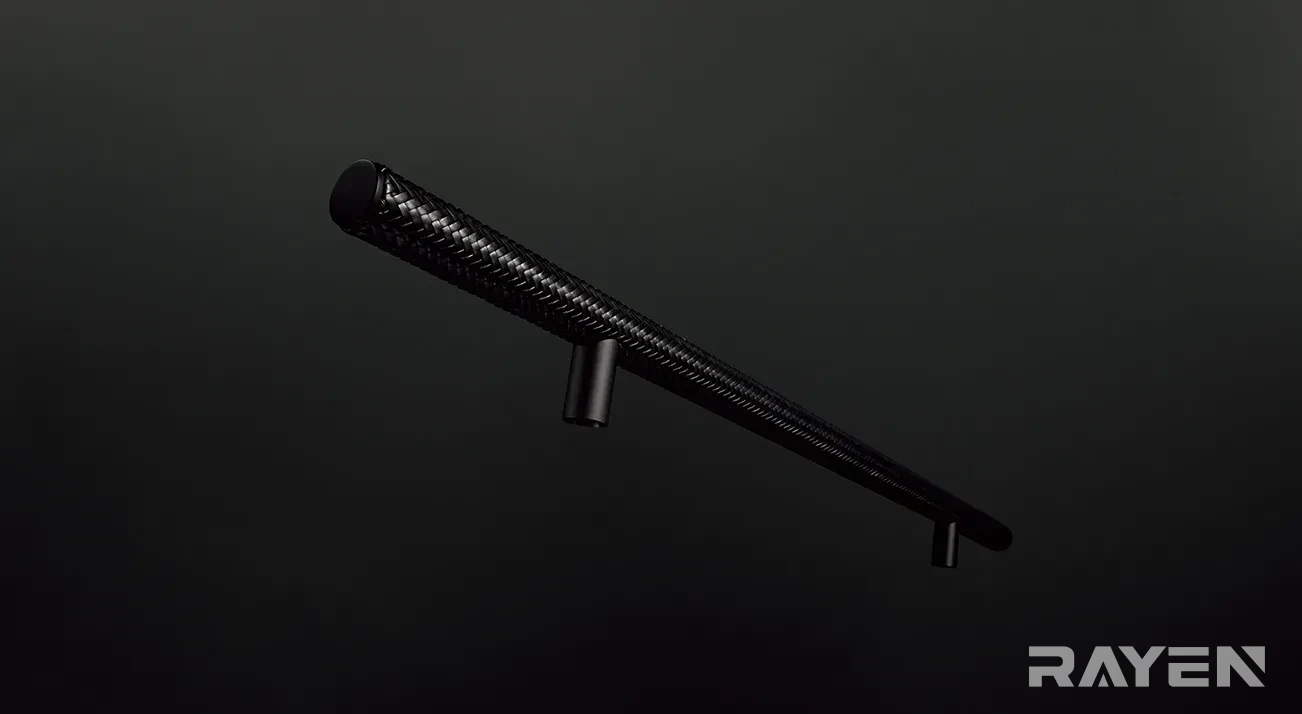

G1237 Glass Door Handle
RAYEN G1237 Glass Door Handle: centre distance 500mm, overall length 806mm, grip section 28mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.

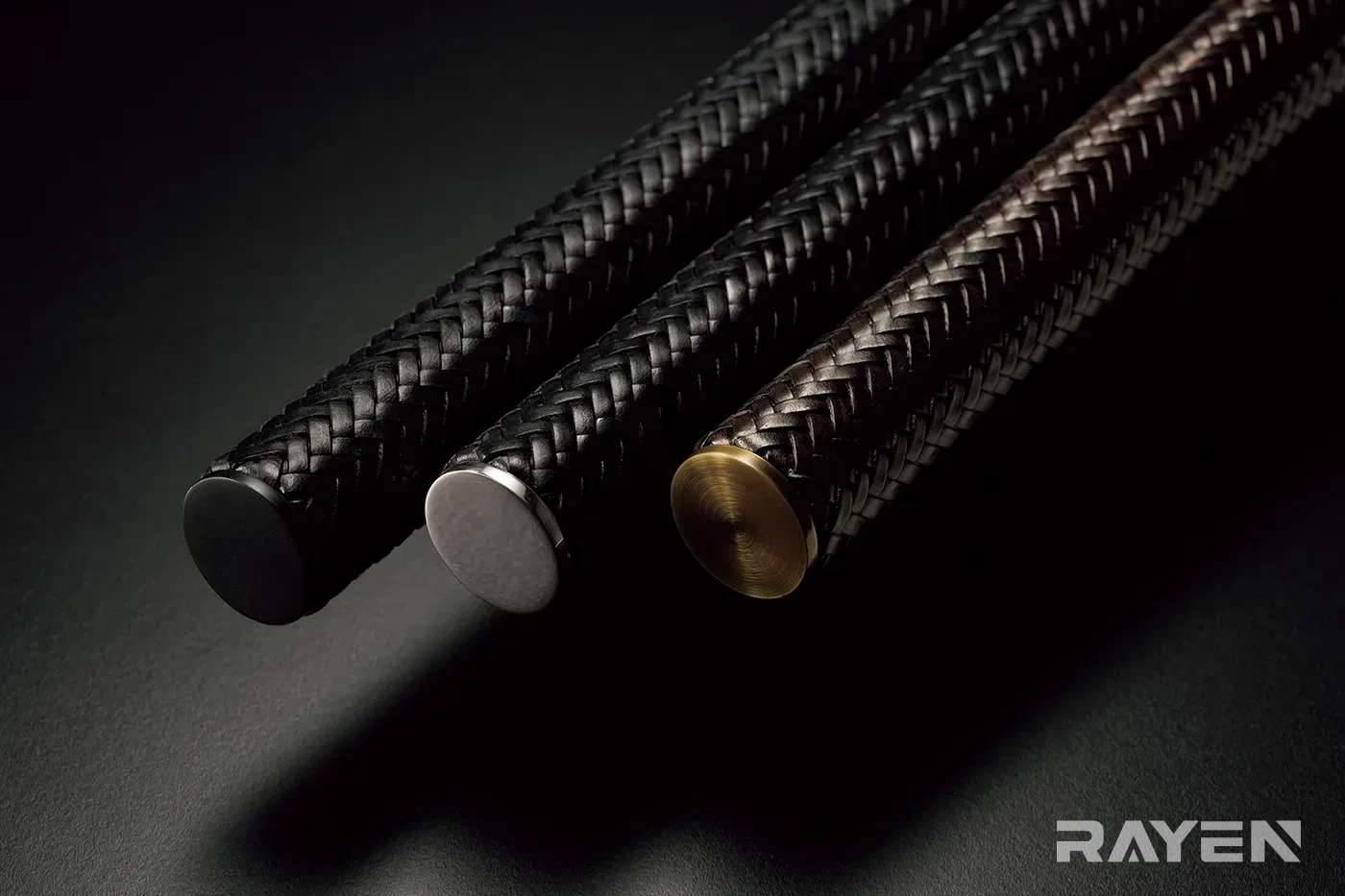

Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=500mm |
|---|---|
| Overall length | 806mm |
| Grip section | 28mm |
| Stem diameter | 22mm |
| Projection | 63mm |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
