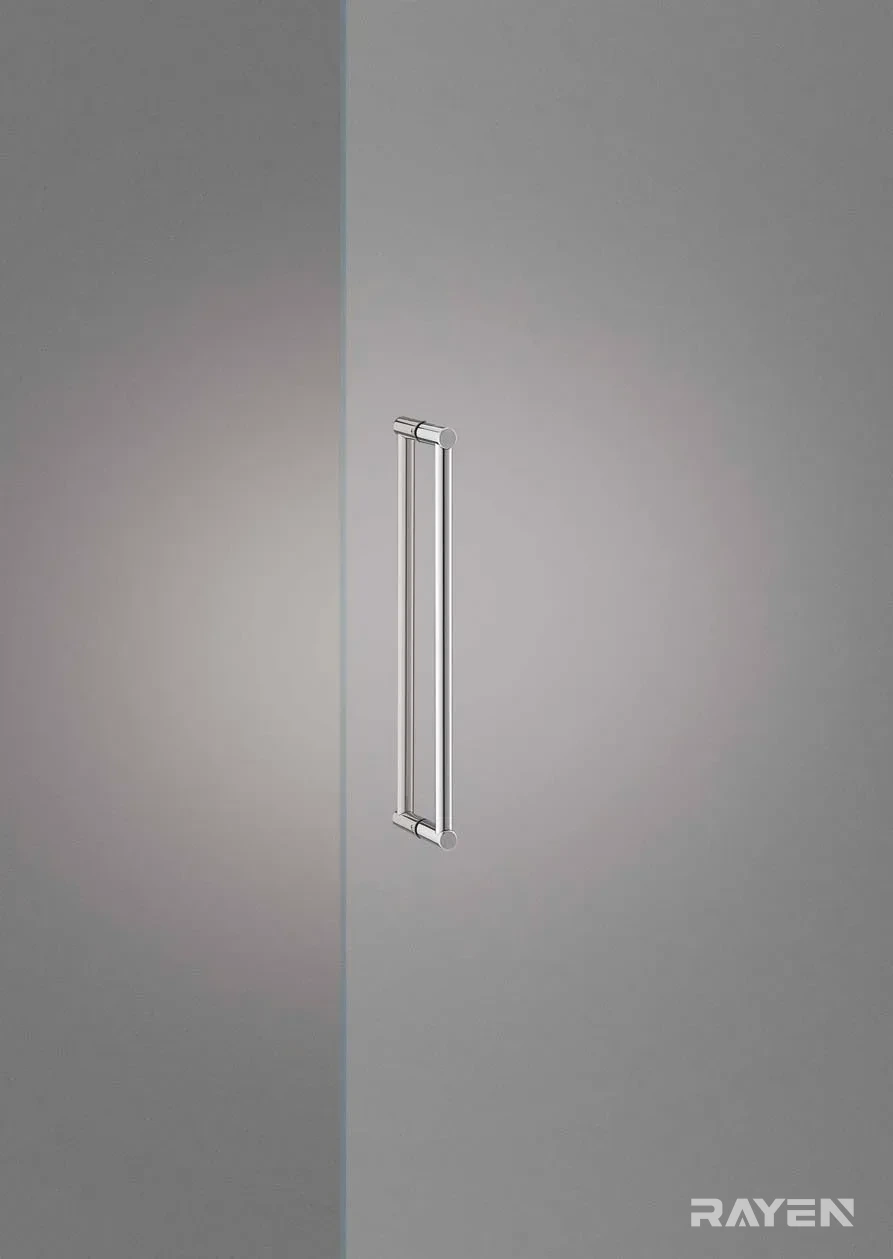

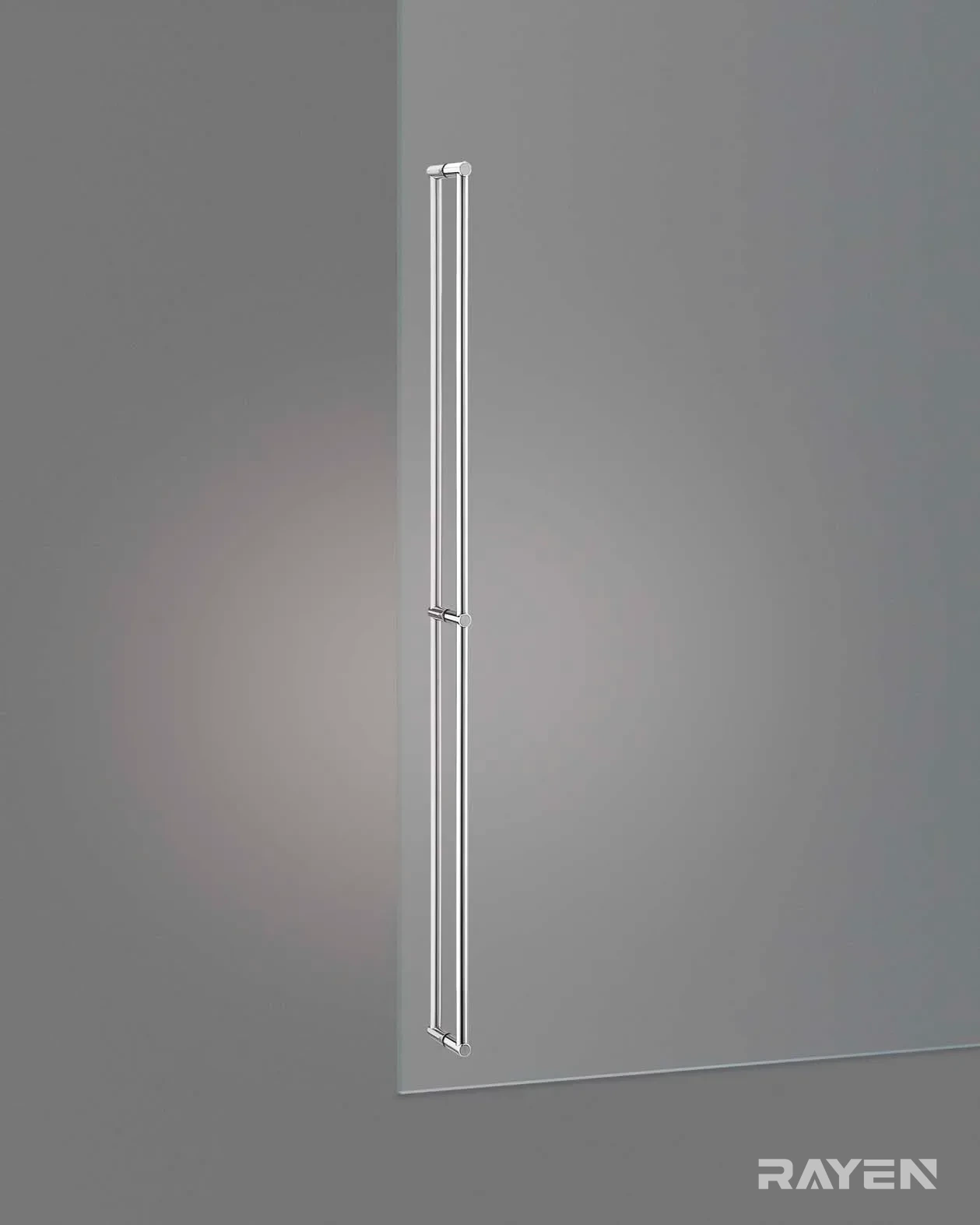

G1252 Glass Door Handle
RAYEN G1252 Glass Door Handle: overall length 447mm/1422mm, grip section 19mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=425mm (L447) / P=700+700mm (L1422) |
|---|---|
| Overall length | 447mm / 1422mm |
| Grip section | 19mm |
| Stem diameter | 22mm |
| Projection | 61.5mm |
| Weight | 1.5kg |
| Available lengths | 447–1422mm |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
