G1286 Glass Door Handle
RAYEN G1286 Glass Door Handle: centre distance 300mm, overall length 500mm, grip section 42mm blade, Ø20mm column. Made in Xiaolan, Zhongshan, also to your drawing or sample.

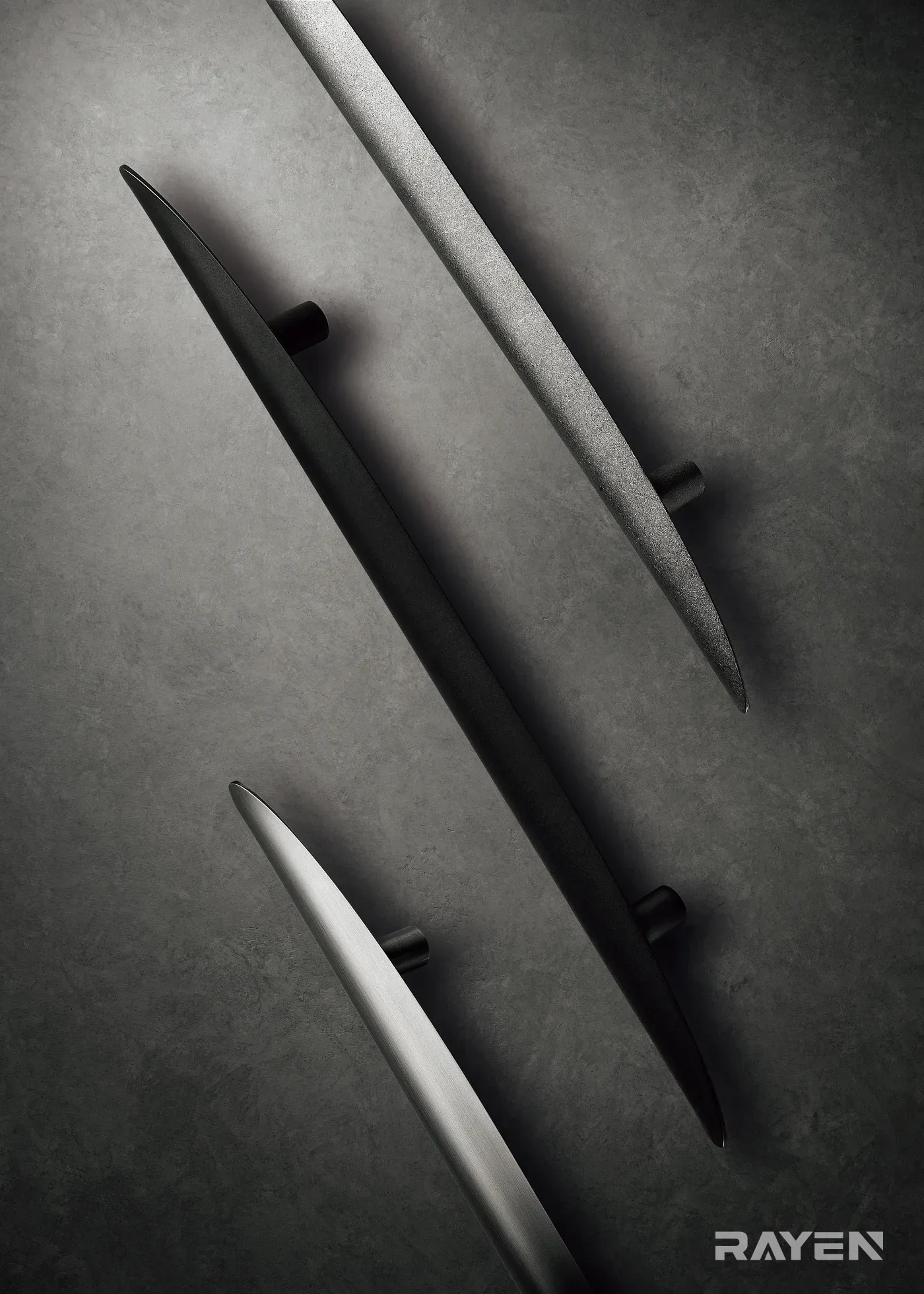

Available finishes

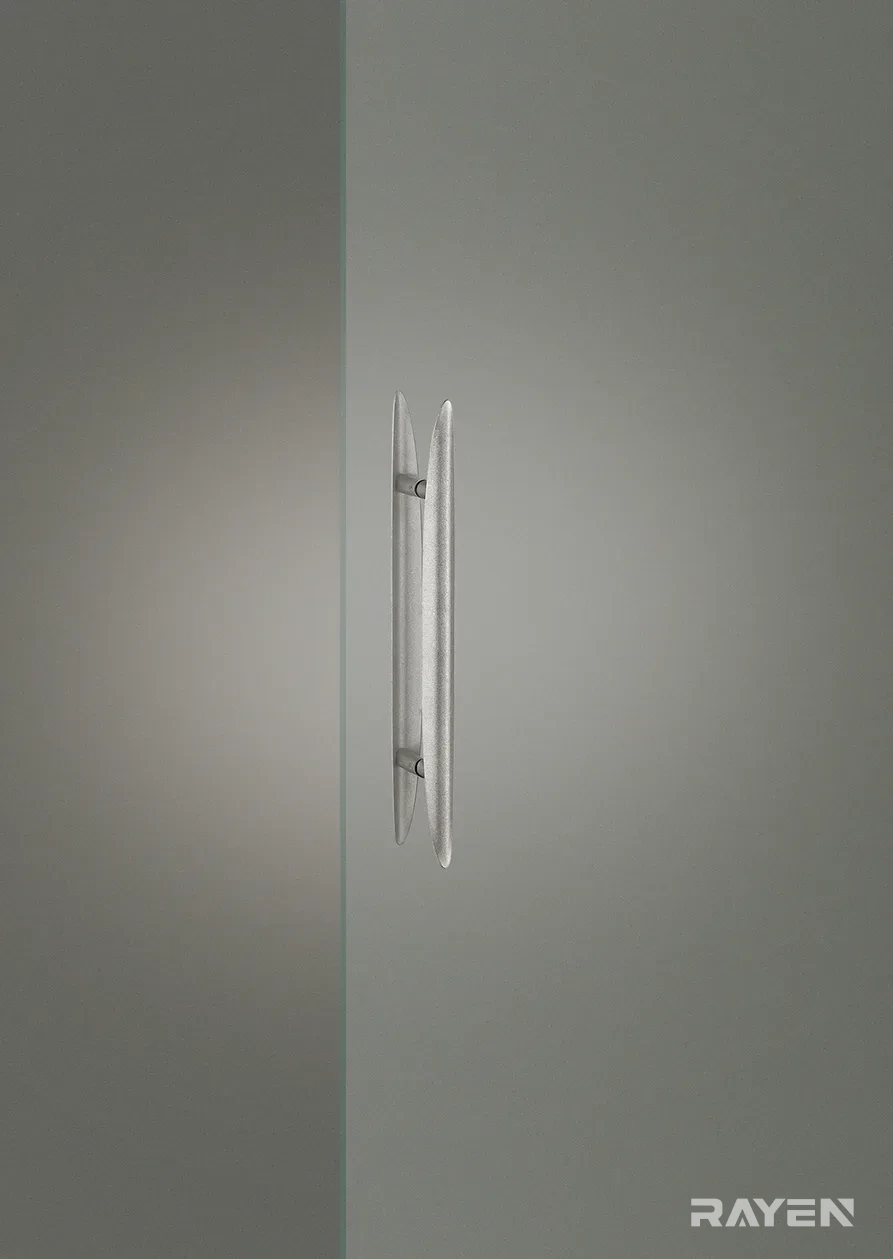

- Satin stainless

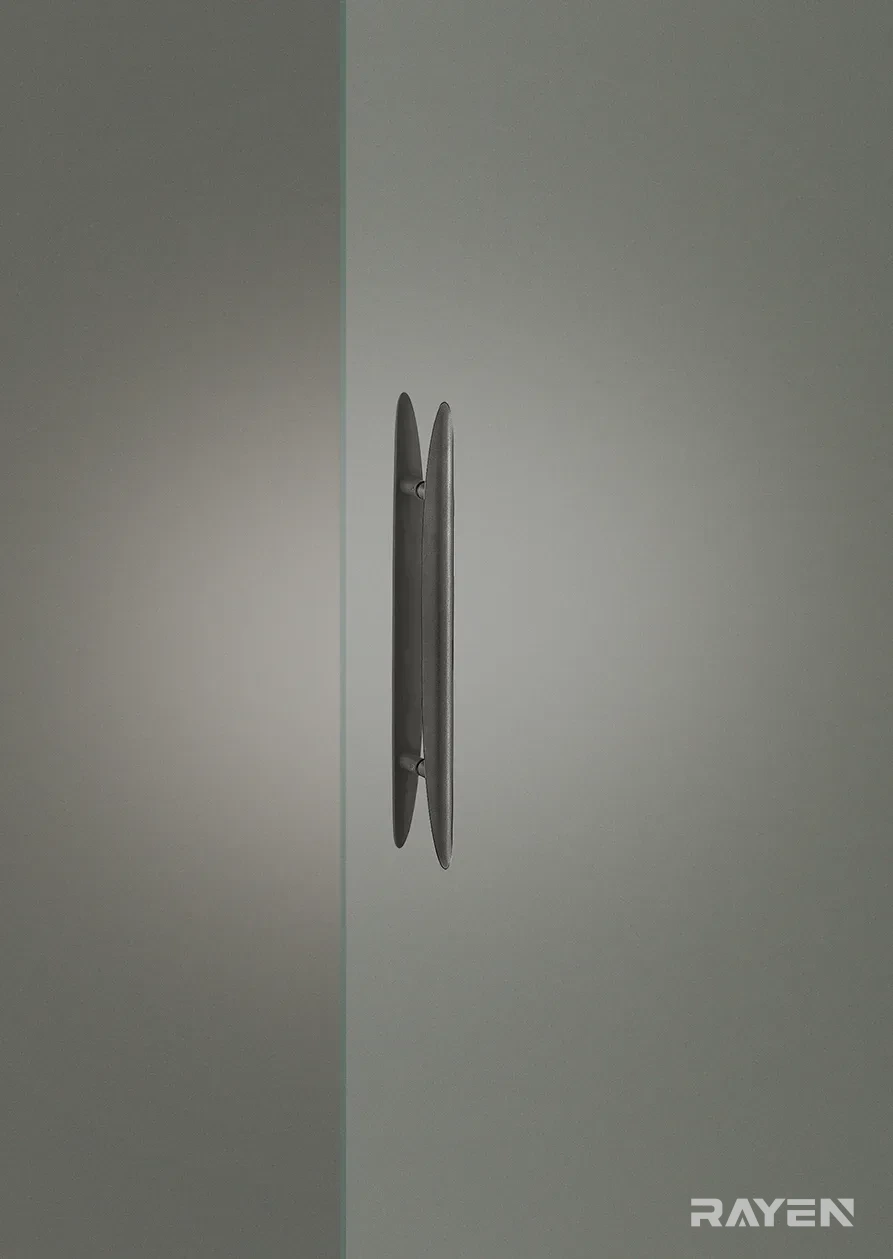

- Matt black
Specification
| Centre distance | P=300mm |
|---|---|
| Overall length | 500mm |
| Grip section | 42mm blade, Ø20mm column |
| Projection | 43mm |
| End to fixing | 100mm at each end |
| Weight | 1.2kg |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
