G2888 · 1 of 5

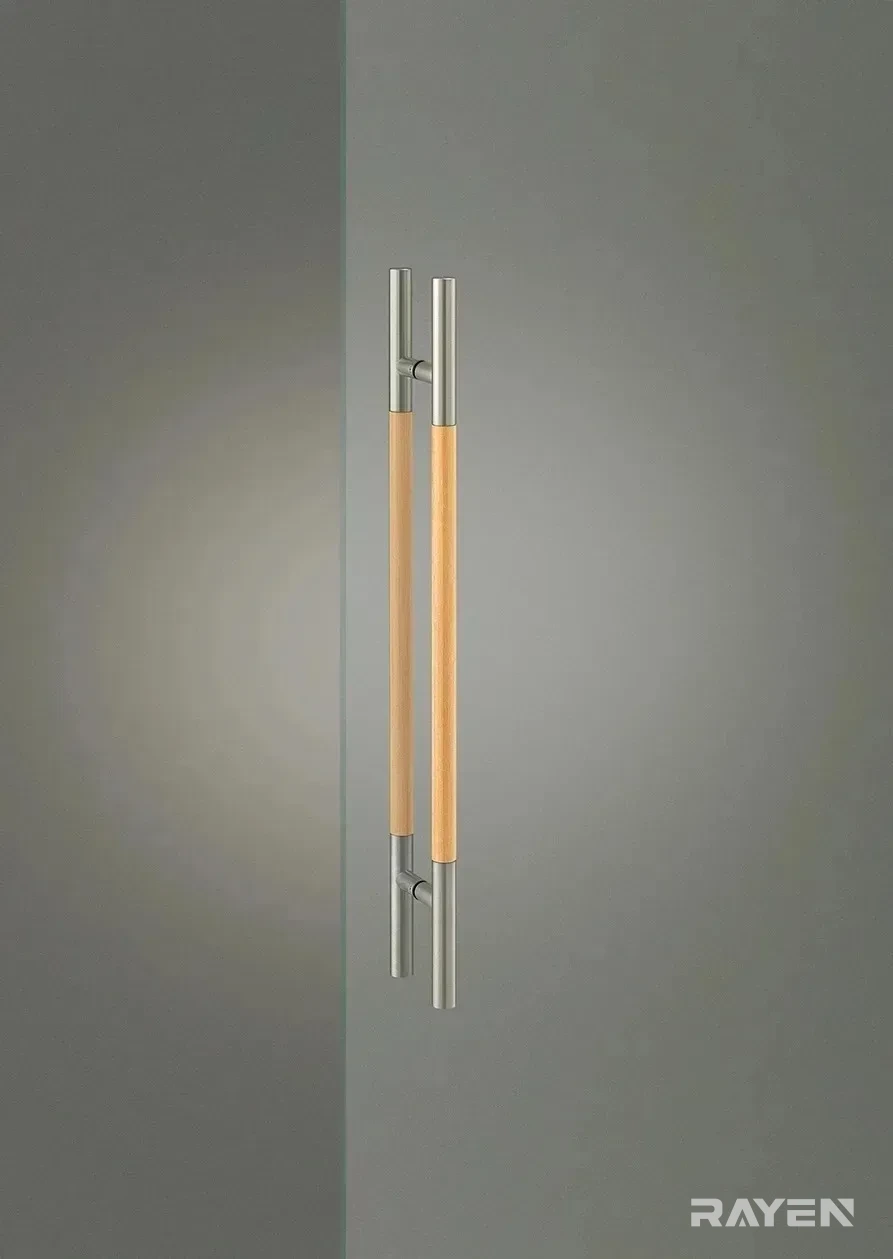

G2888 Glass Door Handle
RAYEN G2888 Glass Door Handle: centre distance 580mm, overall length 800mm, grip section Ø27mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
- Antique brass
Specification
| Centre distance | P=580mm |
|---|---|
| Overall length | 800mm |
| Grip section | Ø27mm |
| Projection | 67mm |
| Standoff | Ø22mm |
| Weight | 1.8kg |
| Fixing screw | M6 |
| Fixing hole | φ12mm |
| Fixing hole (flush door) | φ8mm |
