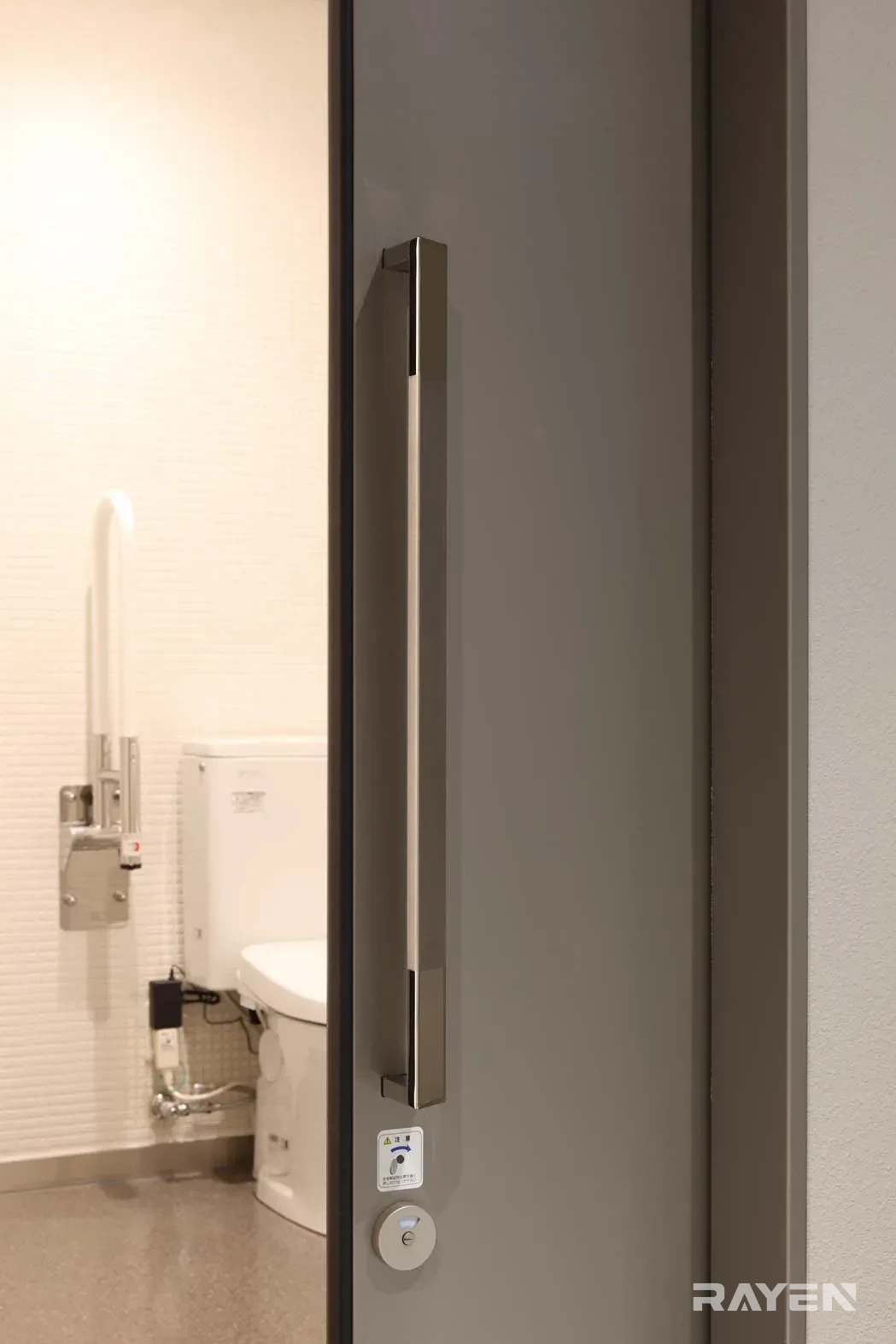

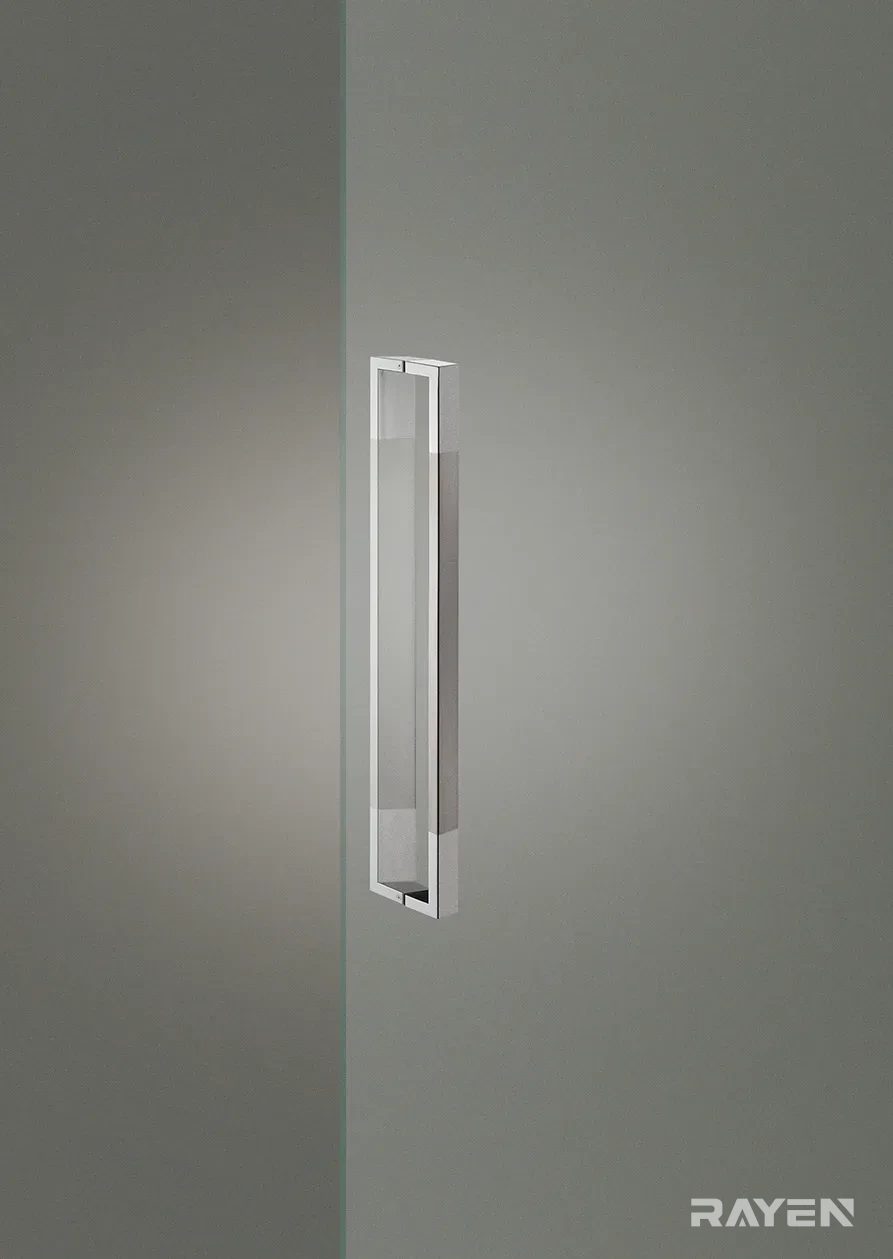

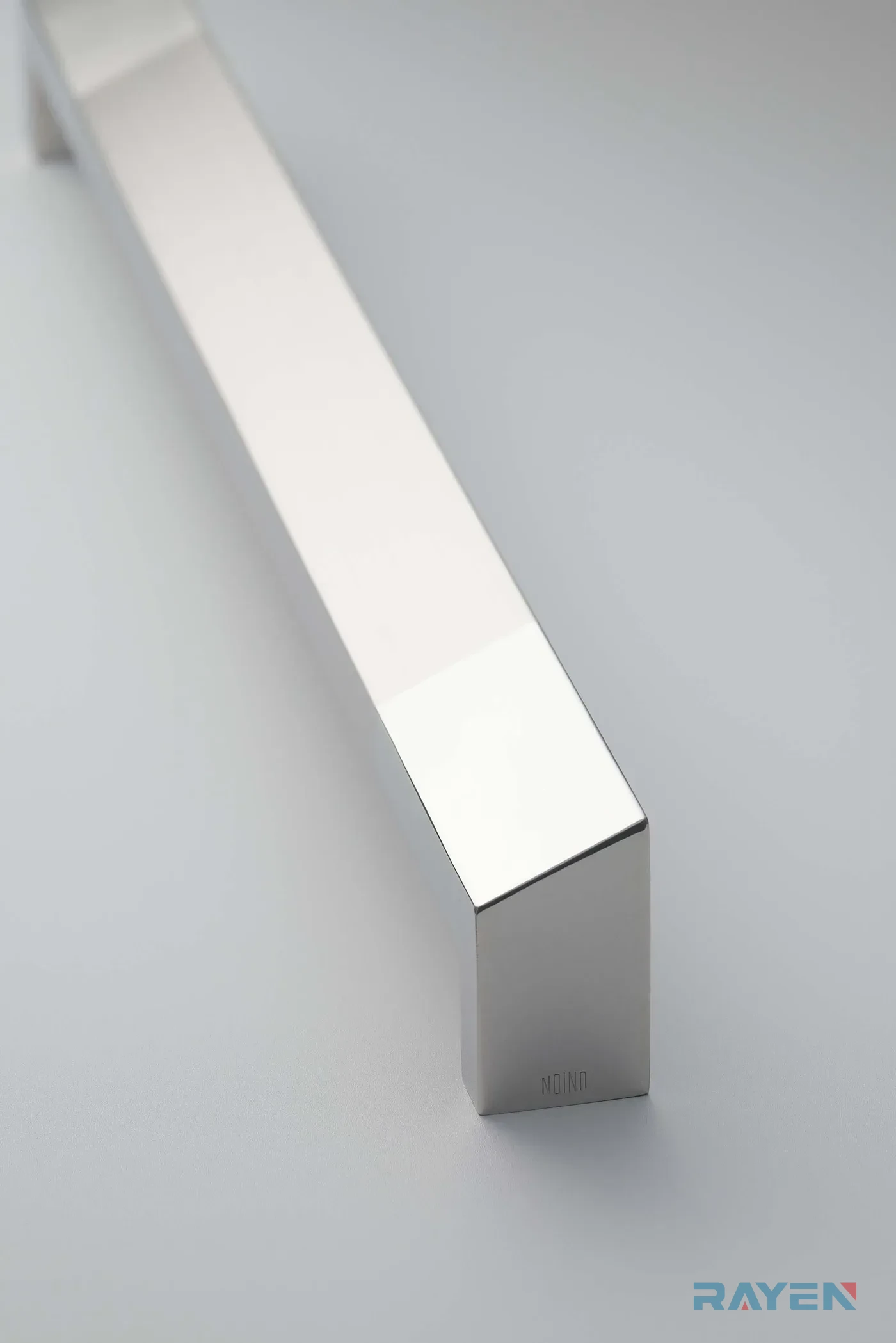

G3078 Glass Door Handle
RAYEN G3078 Glass Door Handle: centre distance 782mm, overall length 800mm, grip section 40mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless
- Matt black
- Antique brass
Specification
| Centre distance | P=782mm |
|---|---|
| Overall length | 800mm |
| Grip length | 550mm |
| Grip section | 40mm |
| Projection | 70mm |
| Weight | 2.6kg |
| Available lengths | 600–800mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
