G4227 Glass Door Handle
RAYEN G4227 Glass Door Handle: centre distance 425mm, overall length 600mm, grip section Ø22mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Satin stainless

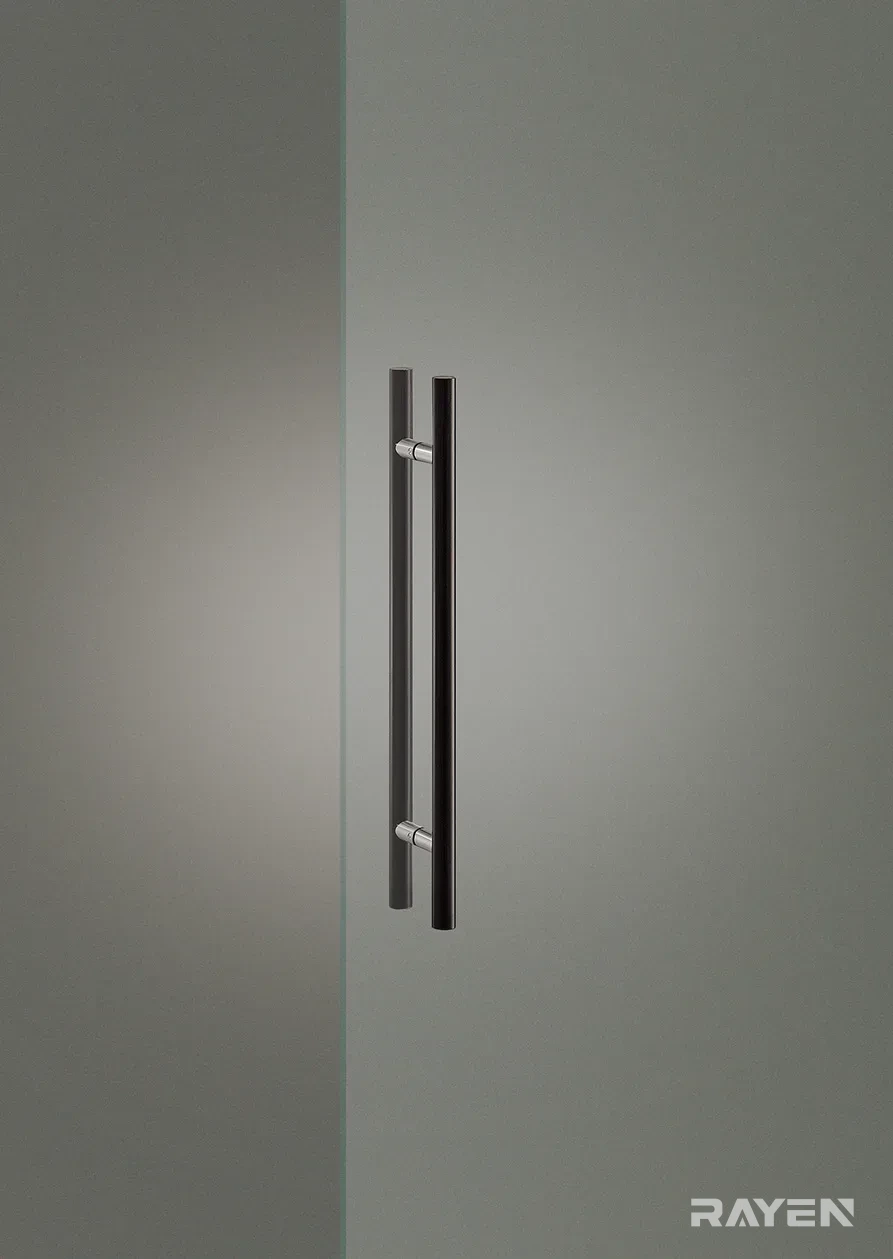

- Matt black
Specification
| Centre distance | P=425mm |
|---|---|
| Overall length | 600mm |
| Grip section | Ø22mm |
| Stem diameter | 27mm |
| Projection | 62mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
